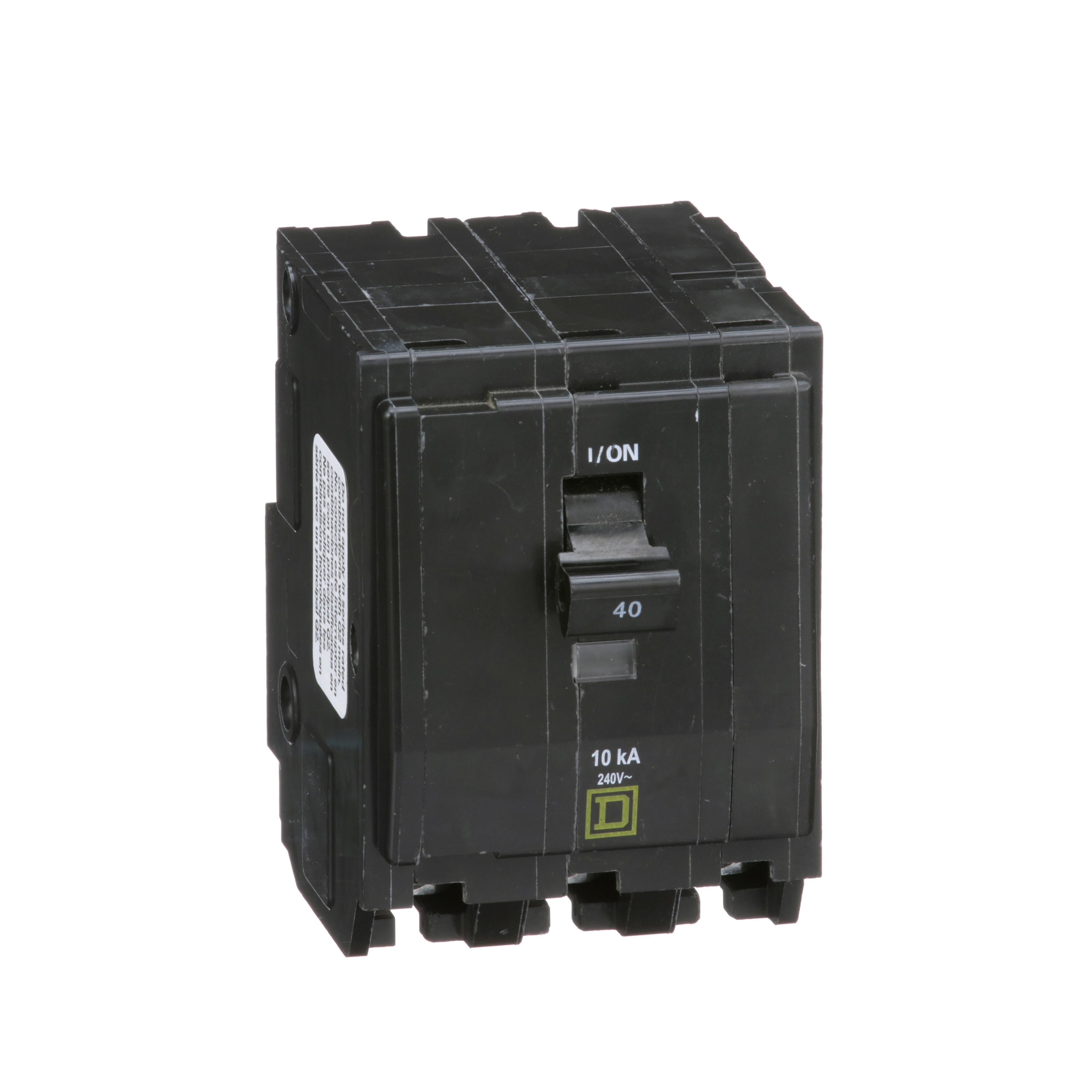

Square D™ Homeline™ QO® Standard Miniature Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ Homeline™ QO® Standard Miniature Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 3 Poles
SKU33207
MFGR #QO340
Your Cost: $259.15/ea
Square D QO340 MINIATURE CIRCUIT BREAKER 240V 40A,10kA,240 Vac,3-Phase,40A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Square D QO340 MINIATURE CIRCUIT BREAKER 240V 40A,10kA,240 Vac,3-Phase,40A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Alternate Catalog Number QO340 Amperage Rating 40 A Application HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO340 Connection BOX LUGS Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L x 2.25 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 18.23 Gross Volume per Pack Metric 298.70 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.8500 lb Gross Weight per Pack Metric 362.88 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 5.8420 in Height [Metric] 8.3820 cm Interrupt Rating 10 kA Item Group 00012 Length 8.6360 in Length [Metric] 17.2720 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=399913&lang=en-us Mounting Type Plug-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards HACR Rated, UL Listed, CSA Certified, RoHS Compliant Stock Status NORMALLY STOCKED Sub Brand QO Substitute Product Catalog Number QO1HPL Temperature Rating 104 °F Trip Type Thermal Magnetic Type Standard UNSPSC 39121603 UPC 11 78590140076 UPC 12 785901400769 Voltage Rating 240 VAC Warranty Description Contractual Warranty:18 months Width 8.1280 in Width [Metric] 7.1120 cm Wire Size 8 to 2 AWG HACR rated STANDARD PLUG-ON QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication Tripping mechanisms in two-and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously Plug-on QO® circuit breakers are for use in QO® load centers, NQ and NQOD panelboards, OEM mounting bases and Speed-D® switchboard distribution panels QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit 8 to 2 AWG copper/aluminum wire Common trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO340 |
| Amperage Rating | 40 A |
| Application | HACR rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO340 |
| Connection | BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 2.25 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 18.23 |
| Gross Volume per Pack Metric | 298.70 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.8500 lb |
| Gross Weight per Pack Metric | 362.88 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 5.8420 in |
| Height [Metric] | 8.3820 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00012 |
| Length | 8.6360 in |
| Length [Metric] | 17.2720 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=399913&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | HACR Rated, UL Listed, CSA Certified, RoHS Compliant |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO1HPL |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590140076 |
| UPC 12 | 785901400769 |
| Voltage Rating | 240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.1280 in |
| Width [Metric] | 7.1120 cm |
| Wire Size | 8 to 2 AWG |
| HACR rated |
| STANDARD PLUG-ON |
| QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| Tripping mechanisms in two-and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Plug-on QO® circuit breakers are for use in QO® load centers, NQ and NQOD panelboards, OEM mounting bases and Speed-D® switchboard distribution panels |
| QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| 8 to 2 AWG copper/aluminum wire |
| Common trip |
