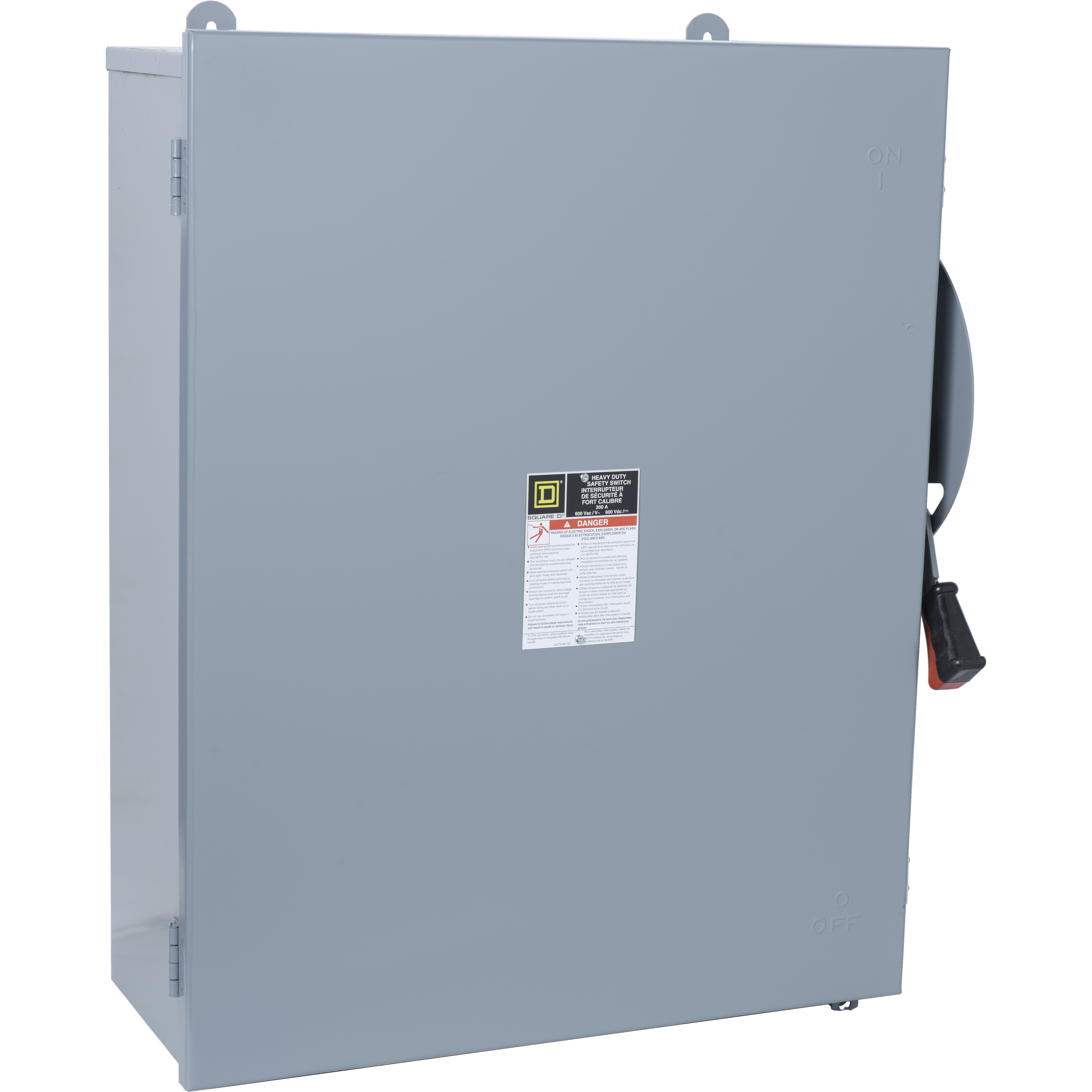

Square D™ HU664AWK F6 Dusttight Driptight Iceproof Non-Fusible Rainproof Sleetproof Heavy Duty Safety Switch, 600 VAC/VDC, 200 A, 150 hp at 600 VAC, Single Throw Contact Form, 6 Poles
Custom_Product_Images_Illustration
Square D™ HU664AWK F6 Dusttight Driptight Iceproof Non-Fusible Rainproof Sleetproof Heavy Duty Safety Switch, 600 VAC/VDC, 200 A, 150 hp at 600 VAC, Single Throw Contact Form, 6 Poles
SKU248616
MFGR #HU664AWK
Your Cost: $9,183.11/ea
List: Square D HU664AWK SWITCH NONFUSED HD 600V 200V NEMA 12 3R,12, 3R,200A,6,600V AC600V DC,Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,N,NEMA 3R/12,Rainproof, Sleet/Ice proof and Dust tight (Indoor/Outdoor),Safety Switch,UL 98 Listed
Square D HU664AWK SWITCH NONFUSED HD 600V 200V NEMA 12 3R,12, 3R,200A,6,600V AC600V DC,Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,N,NEMA 3R/12,Rainproof, Sleet/Ice proof and Dust tight (Indoor/Outdoor),Safety Switch,UL 98 Listed
Actuator Type Handle Alternate Catalog Number HU664AWK Application HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. ARRA Compliant N Buy American Compliant N Catalog Number HU664AWK Color Gray Connection LUGS Country of Origin US Currency USD Dimensions 29.38 in H x 24.88 in W x 8.75 in D Enclosure NEMA 3R/12 Enclosure Type NEMA 12 Environmental Conditions RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR) EU RoHS Indicator Y Finish Galvannealed/Painted Gross Weight Per Pack 72.0000 lb Gross Weight per Pack Metric 32.66 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 18.7960 in Height [Metric] 18.7960 cm Item Group 00116 Length 66.8020 in Length [Metric] 66.8020 cm Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365747&lang=en-us Maximum Load 12, 3R Mounting Surface Mounting Type Surface Number Of Poles 6 Number of Wires 6 Phase 3 Returnable N Series F6 Short Circuit Current Rating 200 kA Size 24.88 IN,29 IN,8.75 IN Standard UL 98 LISTED Substitute Product Catalog Number PKOGTC2 Temperature Rating -22 to 104 °F Terminal Type Lug Type Dusttight Driptight Iceproof Non-Fusible Rainproof Sleetproof UNSPSC 39122205 UPC 11 78590139676 UPC 12 785901396765 Warranty Description Contractual Warranty:18 months Width 43.4340 in Width [Metric] 43.4340 cm Wire Type N Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Contact Form Single Throw Horsepower 150 hp at 600 VAC Voltage Rating 600 VAC//VDC HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. HEAVY DUTY Visible blades for positive indication that switch is "OFF" Quick make/quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Spring reinforced plated copper fuse clips Without knockouts
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | HU664AWK |
| Application | HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HU664AWK |
| Color | Gray |
| Connection | LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 29.38 in H x 24.88 in W x 8.75 in D |
| Enclosure | NEMA 3R/12 |
| Enclosure Type | NEMA 12 |
| Environmental Conditions | RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Finish | Galvannealed/Painted |
| Gross Weight Per Pack | 72.0000 lb |
| Gross Weight per Pack Metric | 32.66 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 18.7960 in |
| Height [Metric] | 18.7960 cm |
| Item Group | 00116 |
| Length | 66.8020 in |
| Length [Metric] | 66.8020 cm |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365747&lang=en-us |
| Maximum Load | 12, 3R |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 6 |
| Number of Wires | 6 |
| Phase | 3 |
| Returnable | N |
| Series | F6 |
| Short Circuit Current Rating | 200 kA |
| Size | 24.88 IN,29 IN,8.75 IN |
| Standard | UL 98 LISTED |
| Substitute Product Catalog Number | PKOGTC2 |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Dusttight Driptight Iceproof Non-Fusible Rainproof Sleetproof |
| UNSPSC | 39122205 |
| UPC 11 | 78590139676 |
| UPC 12 | 785901396765 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 43.4340 in |
| Width [Metric] | 43.4340 cm |
| Wire Type | N |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Contact Form | Single Throw |
| Horsepower | 150 hp at 600 VAC |
| Voltage Rating | 600 VAC//VDC |
| HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make/quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced plated copper fuse clips |
| Without knockouts |
