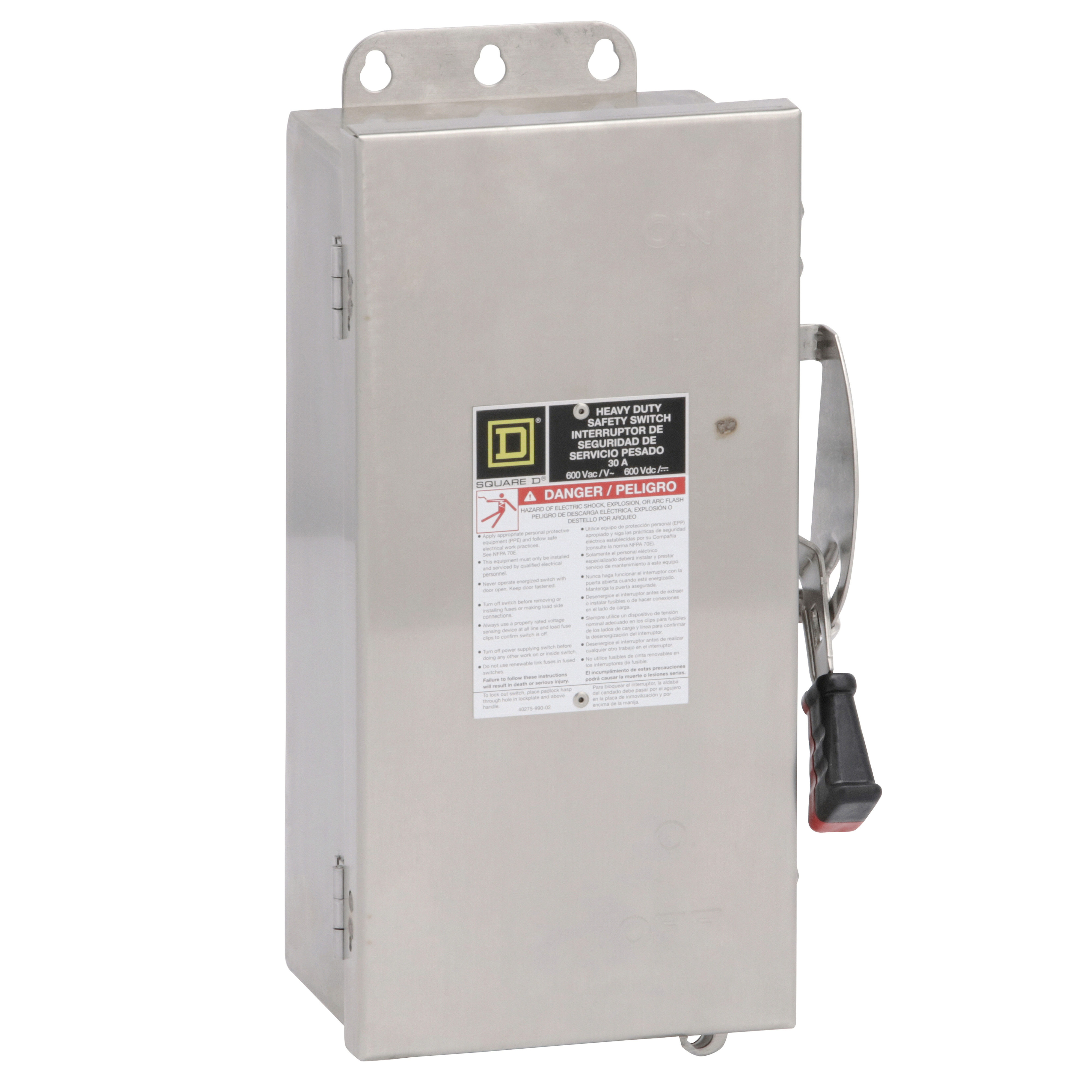

Square D™ HU663DS F6 Corrosion Resistant Dusttight Non-Fusible Watertight Heavy Duty Safety Switch, 600 VAC/VDC, 100 A, 75 hp at 600 VAC, Single Throw Contact Form, 6 Poles
Custom_Product_Images_Illustration
Square D™ HU663DS F6 Corrosion Resistant Dusttight Non-Fusible Watertight Heavy Duty Safety Switch, 600 VAC/VDC, 100 A, 75 hp at 600 VAC, Single Throw Contact Form, 6 Poles
SKU1317206
MFGR #HU663DS
Call For Price
List: The Square D™ by Schneider Electric brand heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions, from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. The design life of a F Series switch is a minimum of 3X the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D™ by Schneider Electric heavy duty safety switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. All heavy duty safety switches feature a quick make, quick break operating mechanism, a dual cover interlock and a color coded indicator handle.
The Square D™ by Schneider Electric brand heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions, from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. The design life of a F Series switch is a minimum of 3X the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D™ by Schneider Electric heavy duty safety switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. All heavy duty safety switches feature a quick make, quick break operating mechanism, a dual cover interlock and a color coded indicator handle.
Actuator Type Handle Alternate Catalog Number HU663DS Application Heavy application ARRA Compliant N Buy American Compliant N Catalog Number HU663DS Connection LUGS Country of Origin US Currency USD Dimensions 21.41 in H x 16.85 in W x 6.97 in D Enclosure NEMA 4/4X/5 STAINLESS STEEL 304 Enclosure Type NEMA 4/4X/5 EU RoHS Indicator Y Gross Weight Per Pack 0.0454 lb Gross Weight per Pack Metric 4.54 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Hazard Class N Height 63.5000 in Height [Metric] 63.5000 cm Item Group 00115 Length 41.9100 in Length [Metric] 41.9100 cm Material 304 Stainless Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365739&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 6 Phase 1/2/3 Returnable N Series F6 Short Circuit Current Rating 200 kA Size 16.85 IN,20.82 IN,6.97 IN in Standard UL LISTED FILE E2875 Temperature Rating -22 to 104 °F Terminal Type Lug Type Corrosion-Resistant Dust-Tight Non-Fusible Watertight UNSPSC 39122218 UPC 11 78590107807 UPC 12 785901078074 Warranty Description Contractual Warranty:18 months Width 18.1100 in Width [Metric] 18.1100 cm Wire Type AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Contact Form 6PST Horsepower 75 hp Voltage Rating 600 VAC//VDC Heavy application LUGS Visible blades for positive indication that switch is "OFF" Quick make, quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Spring reinforced plated copper fuse clips
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | HU663DS |
| Application | Heavy application |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HU663DS |
| Connection | LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 21.41 in H x 16.85 in W x 6.97 in D |
| Enclosure | NEMA 4/4X/5 STAINLESS STEEL 304 |
| Enclosure Type | NEMA 4/4X/5 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0454 lb |
| Gross Weight per Pack Metric | 4.54 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Hazard Class | N |
| Height | 63.5000 in |
| Height [Metric] | 63.5000 cm |
| Item Group | 00115 |
| Length | 41.9100 in |
| Length [Metric] | 41.9100 cm |
| Material | 304 Stainless Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365739&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 6 |
| Phase | 1/2/3 |
| Returnable | N |
| Series | F6 |
| Short Circuit Current Rating | 200 kA |
| Size | 16.85 IN,20.82 IN,6.97 IN in |
| Standard | UL LISTED FILE E2875 |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Corrosion-Resistant Dust-Tight Non-Fusible Watertight |
| UNSPSC | 39122218 |
| UPC 11 | 78590107807 |
| UPC 12 | 785901078074 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.1100 in |
| Width [Metric] | 18.1100 cm |
| Wire Type | AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Contact Form | 6PST |
| Horsepower | 75 hp |
| Voltage Rating | 600 VAC//VDC |
| Heavy application |
| LUGS |
| Visible blades for positive indication that switch is "OFF" |
| Quick make, quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced plated copper fuse clips |
