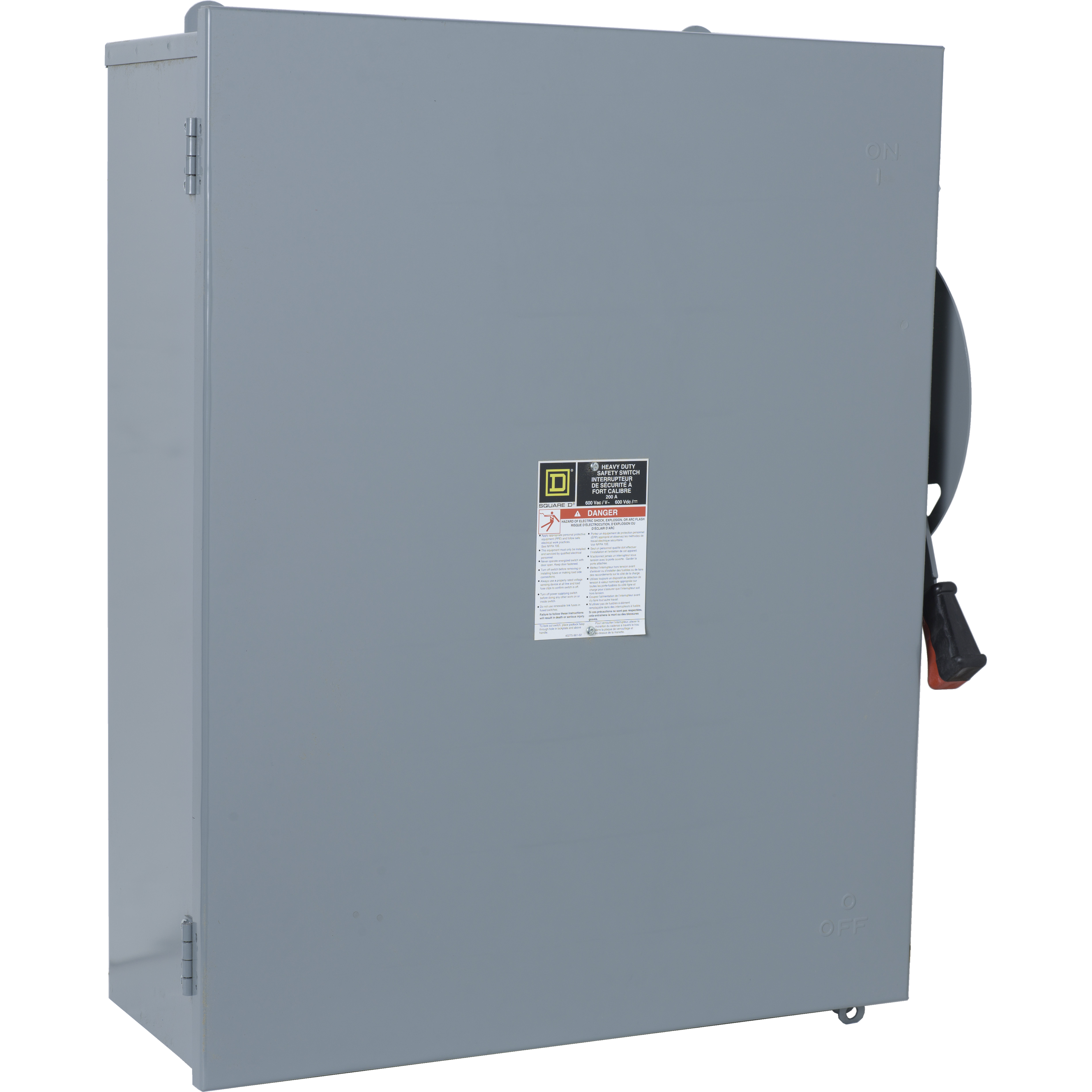

Square D™ HU464 SWITCH NOT FUSIBLE HD 600
SKU483815
MFGR #HU464
Your Cost: $1,111.06/ea
List: Square D HU464 SWITCH NOT FUSIBLE HD 600V 200A 4P NEMA1,1,200A,4,600V AC600V DC,General Purpose (Indoor),Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,N,NEMA 1,Safety Switch,UL 98 Listed
Square D HU464 SWITCH NOT FUSIBLE HD 600V 200A 4P NEMA1,1,200A,4,600V AC600V DC,General Purpose (Indoor),Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,N,NEMA 1,Safety Switch,UL 98 Listed
Actuator Type Handle Alternate Catalog Number HU464 Application Heavy application ARRA Compliant N Buy American Compliant N Catalog Number HU464 Color Gray Connection LUGS Country of Origin US Currency USD Dimensions 29 in H x 24.88 in W x 8.75 in D Enclosure NEMA 1 Enclosure Type NEMA 1 Environmental Conditions GENERAL PURPOSE (INDOOR) EU RoHS Indicator Y Finish Painted Gross Weight Per Pack 43.5000 lb Gross Weight per Pack Metric 19.73 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 18.7960 in Height [Metric] 18.7960 cm Item Group 00008 Length 66.8020 in Length [Metric] 66.8020 cm Material Cold Rolled Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365671&lang=en-us Maximum Load 1 Mounting Surface Mounting Type Surface Number Of Poles 4 Number of Wires 4 Phase 2/3 Returnable Y Series F5 Short Circuit Current Rating 200 kA Size 24.88 IN,29 IN,8.75 IN in Standard UL 98 LISTED Temperature Rating -22 to 104 °F Terminal Type Lug Type General Purpose Non-Fusible UNSPSC 39122218 UPC 11 78590150595 UPC 12 785901505952 Warranty Description Contractual Warranty:18 months Width 43.4340 in Width [Metric] 43.4340 cm Wire Type AWG 6...250 kcmil copper or aluminium Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Contact Form Single Throw Horsepower 50 hp at 600 VAC 2-Phase, 150 hp at 600 VAC 3-Phase, 50 hp at 600 VDC Voltage Rating 600 VAC//VDC Heavy application HEAVY DUTY Visible blades for positive indication that switch is "OFF" Quick make/quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Spring reinforced plated copper fuse clips
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | HU464 |
| Application | Heavy application |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HU464 |
| Color | Gray |
| Connection | LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 29 in H x 24.88 in W x 8.75 in D |
| Enclosure | NEMA 1 |
| Enclosure Type | NEMA 1 |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| EU RoHS Indicator | Y |
| Finish | Painted |
| Gross Weight Per Pack | 43.5000 lb |
| Gross Weight per Pack Metric | 19.73 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 18.7960 in |
| Height [Metric] | 18.7960 cm |
| Item Group | 00008 |
| Length | 66.8020 in |
| Length [Metric] | 66.8020 cm |
| Material | Cold Rolled Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365671&lang=en-us |
| Maximum Load | 1 |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 4 |
| Number of Wires | 4 |
| Phase | 2/3 |
| Returnable | Y |
| Series | F5 |
| Short Circuit Current Rating | 200 kA |
| Size | 24.88 IN,29 IN,8.75 IN in |
| Standard | UL 98 LISTED |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | General Purpose Non-Fusible |
| UNSPSC | 39122218 |
| UPC 11 | 78590150595 |
| UPC 12 | 785901505952 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 43.4340 in |
| Width [Metric] | 43.4340 cm |
| Wire Type | AWG 6...250 kcmil copper or aluminium |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Contact Form | Single Throw |
| Horsepower | 50 hp at 600 VAC 2-Phase, 150 hp at 600 VAC 3-Phase, 50 hp at 600 VDC |
| Voltage Rating | 600 VAC//VDC |
| Heavy application |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make/quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced plated copper fuse clips |
