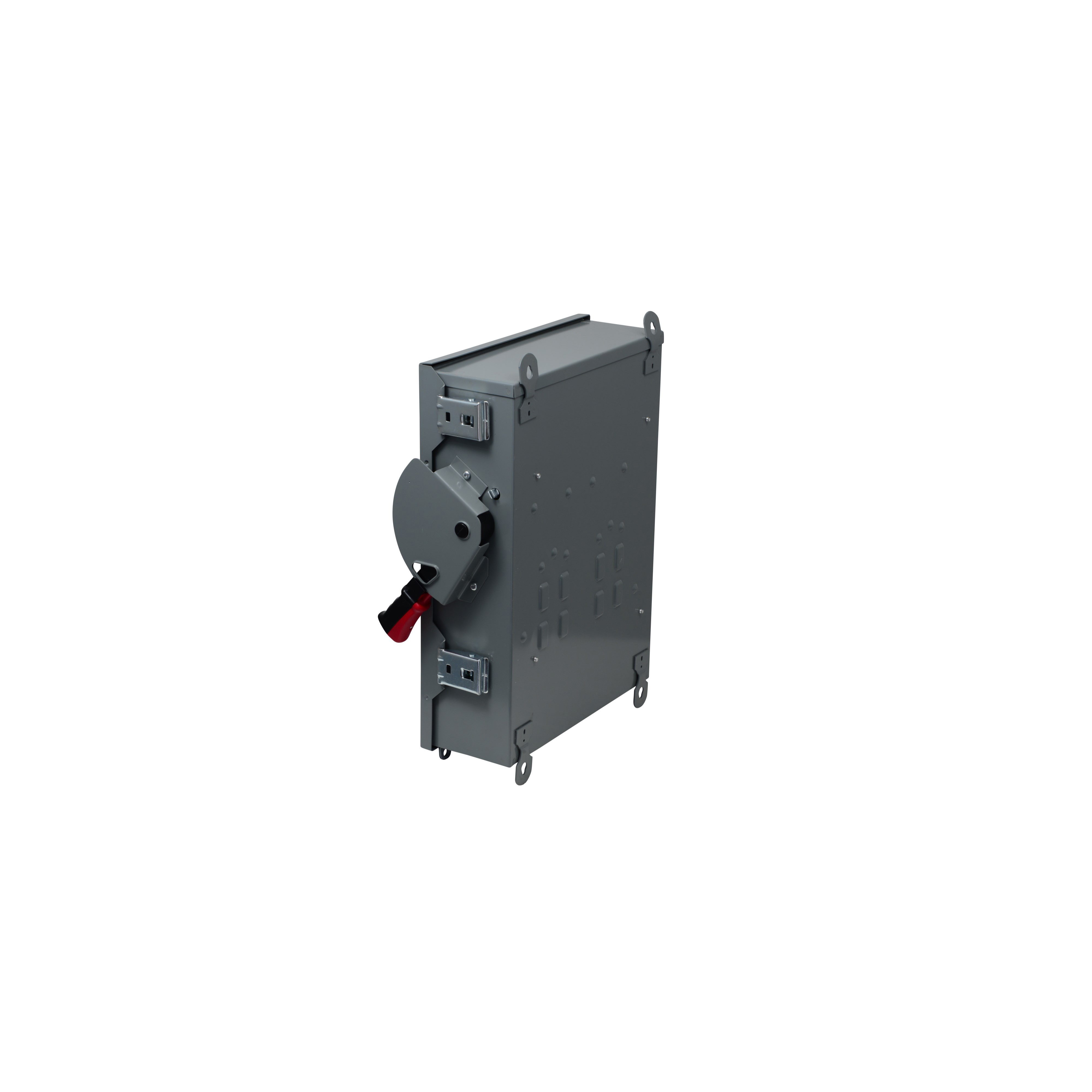

Square D™ HU461 F5 General Purpose Non-Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 30 A, 25 hp at 600 VAC 2-Phase/30 hp at 600 VAC 3-Phase/15 hp at 600 VDC, Single Throw Contact Form, 4 Poles
Custom_Product_Images_Illustration
Square D™ HU461 F5 General Purpose Non-Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 30 A, 25 hp at 600 VAC 2-Phase/30 hp at 600 VAC 3-Phase/15 hp at 600 VDC, Single Throw Contact Form, 4 Poles
SKU113325
MFGR #HU461
Your Cost: $383.02/ea
List: Square D HU461 SWITCH NOT FUSIBLE HD 600V 30A 4P NEMA1,1,30A,4,600V AC600V DC,General Purpose (Indoor),Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,N,NEMA 1,Safety Switch,UL 98 Listed
Square D HU461 SWITCH NOT FUSIBLE HD 600V 30A 4P NEMA1,1,30A,4,600V AC600V DC,General Purpose (Indoor),Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,N,NEMA 1,Safety Switch,UL 98 Listed
Actuator Type Handle Alternate Catalog Number HU461 Application Heavy application ARRA Compliant N Buy American Compliant N Catalog Number HU461 Color Gray Connection LUGS Country of Origin US Currency USD Dimensions 20.5 in H x 16.13 in W x 6.85 in D Enclosure NEMA 1 Enclosure Type NEMA 1 Environmental Conditions GENERAL PURPOSE (INDOOR) EU RoHS Indicator Y Finish Painted Gross Weight Per Pack 29.2300 lb Gross Weight per Pack Metric 13.26 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 18.7960 in Height [Metric] 18.7960 cm Item Group 00008 Length 66.0400 in Length [Metric] 66.0400 cm Material Cold Rolled Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365627&lang=en-us Maximum Load 1 Mounting Surface Mounting Type Surface Number Of Poles 4 Number of Wires 4 Phase 2/3 Returnable Y Series F5 Short Circuit Current Rating 200 kA Size 16.13 IN,20.5 IN,6.85 IN in Standard UL 98 LISTED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WS-865cUL 98 File No. E2875 Substitute Product Catalog Number GTK03C Temperature Rating -22 to 104 °F Terminal Type Lug Type General Purpose Non-Fusible UNSPSC 39122205 UPC 11 78590150780 UPC 12 785901507802 Warranty Description Contractual Warranty:18 months Width 42.6720 in Width [Metric] 42.6720 cm Wire Type AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Contact Form Single Throw Horsepower 25 hp at 600 VAC 2-Phase, 30 hp at 600 VAC 3-Phase, 15 hp at 600 VDC Voltage Rating 600 VAC//VDC Heavy application HEAVY DUTY Visible blades for positive indication that switch is "OFF" Quick make/quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Spring reinforced plated copper fuse clips
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | HU461 |
| Application | Heavy application |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HU461 |
| Color | Gray |
| Connection | LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 20.5 in H x 16.13 in W x 6.85 in D |
| Enclosure | NEMA 1 |
| Enclosure Type | NEMA 1 |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| EU RoHS Indicator | Y |
| Finish | Painted |
| Gross Weight Per Pack | 29.2300 lb |
| Gross Weight per Pack Metric | 13.26 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 18.7960 in |
| Height [Metric] | 18.7960 cm |
| Item Group | 00008 |
| Length | 66.0400 in |
| Length [Metric] | 66.0400 cm |
| Material | Cold Rolled Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365627&lang=en-us |
| Maximum Load | 1 |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 4 |
| Number of Wires | 4 |
| Phase | 2/3 |
| Returnable | Y |
| Series | F5 |
| Short Circuit Current Rating | 200 kA |
| Size | 16.13 IN,20.5 IN,6.85 IN in |
| Standard | UL 98 LISTED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WS-865cUL 98 File No. E2875 |
| Substitute Product Catalog Number | GTK03C |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | General Purpose Non-Fusible |
| UNSPSC | 39122205 |
| UPC 11 | 78590150780 |
| UPC 12 | 785901507802 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 42.6720 in |
| Width [Metric] | 42.6720 cm |
| Wire Type | AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Contact Form | Single Throw |
| Horsepower | 25 hp at 600 VAC 2-Phase, 30 hp at 600 VAC 3-Phase, 15 hp at 600 VDC |
| Voltage Rating | 600 VAC//VDC |
| Heavy application |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make/quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced plated copper fuse clips |
