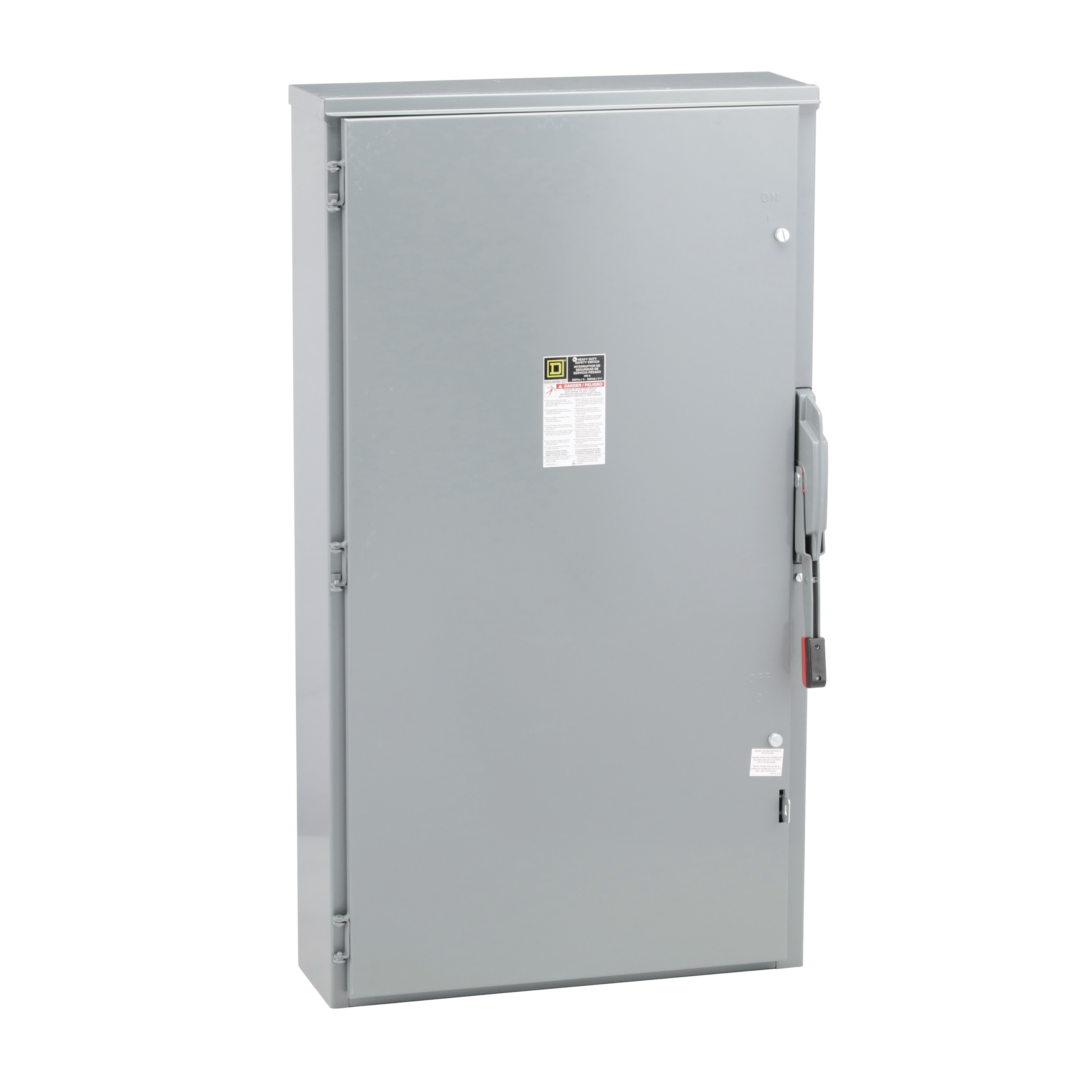

Square D™ HU365R Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC/VDC, 400 A, 350 hp, 3 Poles
Heavy Duty Safety Switches
33337
MFG #: HU365R
Square D™
3840.00000
/ ea
Square D HU365R SWITCH NONFUSIBLE HD 600V 400A 3P NEMA3R,400A,600V,Galvannealed Steel,Lugs,NEMA 3R,Non-Fusible,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw Safety Switch,UL Listed,heavy duty,surface
- 360 Degree View URL - index.html?pid=11003&id=8051132360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=HU365R(3D Rendering URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_bd2a4800350a29ef7b15c158a776a1046e6e2dadf8cbf96f7ba9d5c82cfeafd4.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 13791a180212f3ac685e7302bf0cc6101d32f0af.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_F86ASDEJ3N2PGUYI.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Schneider_Electric_HU365R_Datasheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_XHZRIANG73K8D965.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_908QGR51HMAOUJ4Y.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/qZyLdmwykug&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn(Video)
- Applications
- Features
| HEAVY DUTY |
| LUGS |
| Visible blades for positive blade position indication |
| Red and black handle indicates the on (red) or OFF (black) switch position |
| Side opening, left hinged covers |
| Quick-make and quick-break operating mechanism |
| Standard with plated aluminum lugs which accepts both copper and aluminum wires |
| Lock-off provision is standard on all heavy duty safety switches |
| Load-make, load-break rated for the switch current rating |
| Rainproof and sleet/ice proof |
| 350 hp 3 ph at 600 VAC Max/50 hp at 600 VDC Std power rating |
