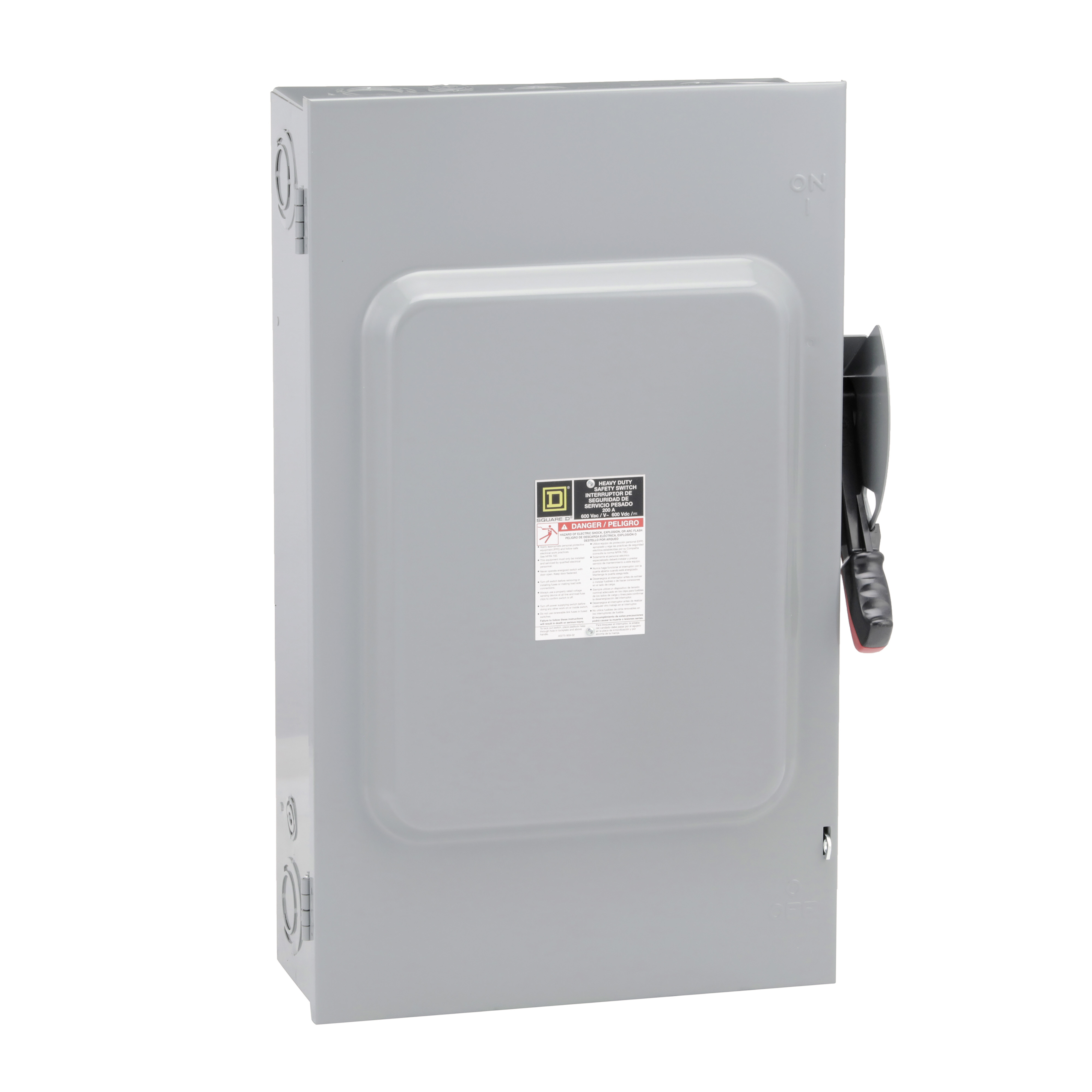

Square D™ HU364 Non-Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 200 A, 50/150 hp, 3 Poles, TPST
Safety Switches & Disconnects
33601
MFG #: HU364
Square D™
1209.00000
/ ea
Square D HU364 SWITCH NOT FUSIBLE HD 600V 200A 3P NEMA1,200A,600V,General Purpose (Indoor),Lugs,NEMA 1,Non-Fusible,Single Throw Safety Switch,Steel,UL Listed,heavy duty,surface
- 360 Degree View URL - 360(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=HU364(3D Rendering URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Catalog URL - Square_D_H323AWK_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 755855e1b9e968cdd0911f8970b2c539e3a9ddab.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_0IBYW91U5ZASPQM2.pdf(Install Instructions 1 URL)
- Install Instructions URL - Square_D_H222N_Instruction_Sheet.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Square_D_HU364_Data_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_ANIPH9Q4TX5UMCOG.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_ES0VNW3PI1JB4COQ.dwg(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=3229S.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/50y6BJxDvsg(Video)
- Applications
- Features
| Heavy application |
| LUGS |
| 6 AWG to 250 kcmil copper/aluminum wire |
| 60 hp at 240 VAC 3-phase, 125 hp at 480 VAC 3-phase, 150 hp at 600 VAC 3-phase, 40 hp at 250 VDC, 50 hp at 600 VDC power rating |
| Side opening, left hinged covers |
| Highly visible embossed ON/OFF marking/ON/OFF labels are used on type 4x fiberglass reinforced polyester enclosures |
| Quick-make and quick-break operating mechanism |
| Standard with plated aluminum lugs which accept both Cu and Al wires |
| Front removable mechanical lugs |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| An interlock bypass is provided for access by authorized personnel |
