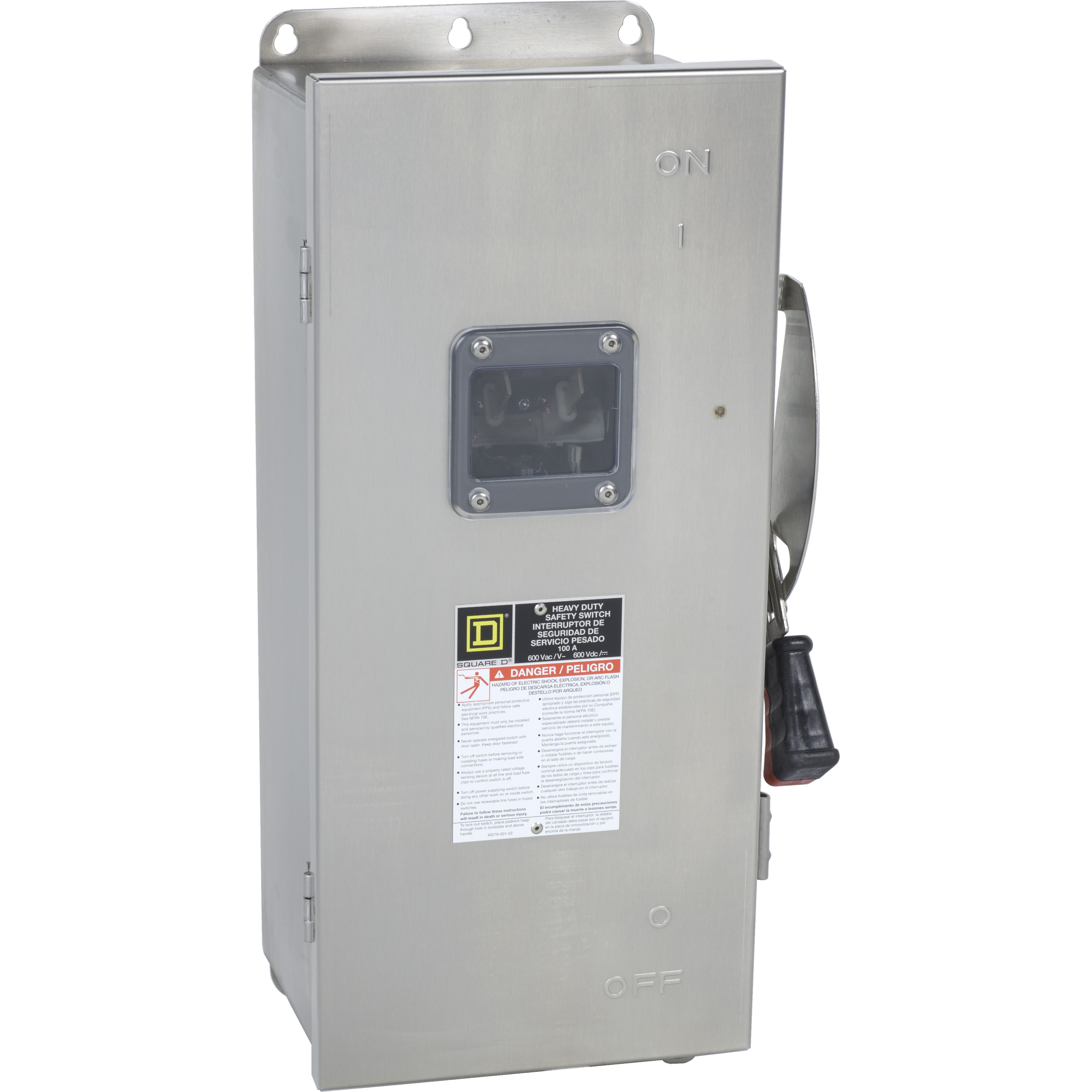

Square D™ HU363DSVW F6 Corrosion Resistant Dusttight Non-Fusible Rainproof Heavy Duty Safety Switch, 600 VAC/VDC, 100 A, 400 hp at 600 VAC 1-Phase, 100 hp at 600 VAC 3-Phase, 50 hp at 600 VDC, TPST Contact, 3 Poles
Custom_Product_Images_Illustration
Square D™ HU363DSVW F6 Corrosion Resistant Dusttight Non-Fusible Rainproof Heavy Duty Safety Switch, 600 VAC/VDC, 100 A, 400 hp at 600 VAC 1-Phase, 100 hp at 600 VAC 3-Phase, 50 hp at 600 VDC, TPST Contact, 3 Poles
SKU1306543
MFGR #HU363DSVW
Your Cost: $3,681.16/ea
List: Square D™ Heavy Duty Safety Switch, Corrosion Resistant Dusttight Non-Fusible Rainproof, Series, 600, Amperage Rating VAC/VDC, A 100, 400 hp at 600 VAC 1-Phase, 100 hp at 600 VAC 3-Phase, 50 hp at 600 VDC, Phase, Number of Poles, Short Circuit Current Rating, A 200, TPST, Actuator Type, Enclosure Type, Surface Mount, Terminal Type, -22 to 104, Dimensions deg F, 304 Stainless Steel, Color
Square D™ Heavy Duty Safety Switch, Corrosion Resistant Dusttight Non-Fusible Rainproof, Series, 600, Amperage Rating VAC/VDC, A 100, 400 hp at 600 VAC 1-Phase, 100 hp at 600 VAC 3-Phase, 50 hp at 600 VDC, Phase, Number of Poles, Short Circuit Current Rating, A 200, TPST, Actuator Type, Enclosure Type, Surface Mount, Terminal Type, -22 to 104, Dimensions deg F, 304 Stainless Steel, Color
Actuator Type Handle Alternate Catalog Number HU363DSVW Application Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses, Indoor and Outdoor Applications ARRA Compliant N Buy American Compliant N Catalog Number HU363DSVW Connection LUGS Country of Origin US Currency USD Dimensions 20.82 in H x 11.25 in W x 6.97 in D Enclosure NEMA 4/4X/5 STAINLESS STEEL 304 Enclosure Type NEMA 4/4X/5 Environmental Conditions RAINPROOF, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) EU RoHS Indicator Y Gross Weight Per Pack 10.0100 lb Gross Weight per Pack Metric 4.54 Gross Weight UOM Metric kg Hazard Class N Height 22.4409 in Height [Metric] 57.1500 cm Item Group 00117 Length 10.2362 in Length [Metric] 26.3520 cm Material 304 Stainless Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365449&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Phase 1/3 Returnable N Series F6 Short Circuit Current Rating 200 Size 6.97 in Substitute Product Catalog Number EIK1 Temperature Rating -22 to 104 Terminal Type Lug Type Corrosion Resistant Dusttight Non-Fusible Rainproof UNSPSC 39122218 UPC 11 78590120878 UPC 12 785901208785 Warranty Description Contractual Warranty:18 months Width 7.0866 in Width [Metric] 17.7800 cm Wire Type AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Contact Form TPST Horsepower 400 hp at 600 VAC 1-Phase, 100 hp at 600 VAC 3-Phase, 50 hp at 600 VDC Voltage Rating 600 VAC//VDC Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses, Indoor and Outdoor Applications LUGS Visible blades for positive indication that switch is "OFF" Quick make/quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Spring reinforced plated copper fuse clips
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | HU363DSVW |
| Application | Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses, Indoor and Outdoor Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HU363DSVW |
| Connection | LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 20.82 in H x 11.25 in W x 6.97 in D |
| Enclosure | NEMA 4/4X/5 STAINLESS STEEL 304 |
| Enclosure Type | NEMA 4/4X/5 |
| Environmental Conditions | RAINPROOF, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 10.0100 lb |
| Gross Weight per Pack Metric | 4.54 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 22.4409 in |
| Height [Metric] | 57.1500 cm |
| Item Group | 00117 |
| Length | 10.2362 in |
| Length [Metric] | 26.3520 cm |
| Material | 304 Stainless Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365449&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Phase | 1/3 |
| Returnable | N |
| Series | F6 |
| Short Circuit Current Rating | 200 |
| Size | 6.97 in |
| Substitute Product Catalog Number | EIK1 |
| Temperature Rating | -22 to 104 |
| Terminal Type | Lug |
| Type | Corrosion Resistant Dusttight Non-Fusible Rainproof |
| UNSPSC | 39122218 |
| UPC 11 | 78590120878 |
| UPC 12 | 785901208785 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.0866 in |
| Width [Metric] | 17.7800 cm |
| Wire Type | AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Contact Form | TPST |
| Horsepower | 400 hp at 600 VAC 1-Phase, 100 hp at 600 VAC 3-Phase, 50 hp at 600 VDC |
| Voltage Rating | 600 VAC//VDC |
| Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses, Indoor and Outdoor Applications |
| LUGS |
| Visible blades for positive indication that switch is "OFF" |
| Quick make/quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced plated copper fuse clips |
