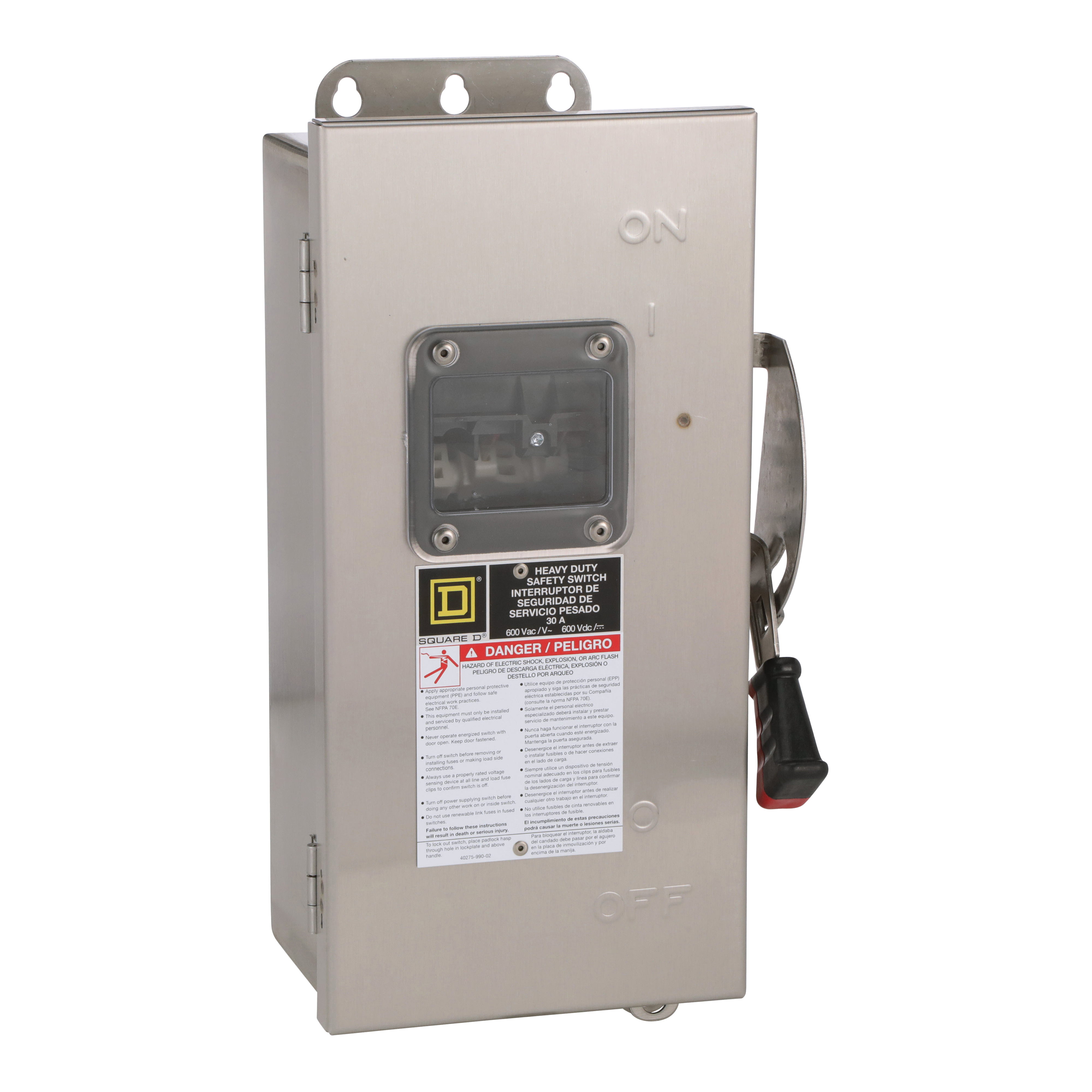

Square D™ HU361DSVW F6 Corrosion Resistant Dusttight Non-Fusible Rainproof Watertight Heavy Duty Safety Switch, 600 VAC/VDC, 30 A, 10 hp at 600 VAC 1-Phase/30 hp at 600 VAC 3-Phase/15 hp at 600 VDC, TPST Contact Form, 3 Poles
Custom_Product_Images_Illustration
Square D™ HU361DSVW F6 Corrosion Resistant Dusttight Non-Fusible Rainproof Watertight Heavy Duty Safety Switch, 600 VAC/VDC, 30 A, 10 hp at 600 VAC 1-Phase/30 hp at 600 VAC 3-Phase/15 hp at 600 VDC, TPST Contact Form, 3 Poles
SKU953435
MFGR #HU361DSVW
Your Cost: $1,698.83/ea
List: Square D HU361DSVW SWITCH NOT FUSIBLE HD 30A STAINLESS/VIEW,304 Stainless Steel,30A,600V,Lugs,NEMA 3/3R4/4X/12,Non-Fusible,Rainproof, Dust tight and Corrosion Resistant (Indoor/Outdoor),Safety Switch,UL Listed,heavy duty,surface
Square D HU361DSVW SWITCH NOT FUSIBLE HD 30A STAINLESS/VIEW,304 Stainless Steel,30A,600V,Lugs,NEMA 3/3R4/4X/12,Non-Fusible,Rainproof, Dust tight and Corrosion Resistant (Indoor/Outdoor),Safety Switch,UL Listed,heavy duty,surface
Actuator Type Handle Alternate Catalog Number HU361DSVW Application Heavy application ARRA Compliant N Buy American Compliant N Catalog Number HU361DSVW Connection LUGS Contact Configuration Without Country of Origin US Currency USD Dimensions 14.93 in H x 8.67 in W x 5.11 in D Enclosure NEMA 4/4X/5 STAINLESS STEEL 304 Enclosure Type NEMA 4/4X/5 Environmental Conditions RAINPROOF, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) EU RoHS Indicator Y Gross Volume Per Pack 933.16 Gross Volume per Pack Metric 15291.73 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 12.9000 lb Gross Weight per Pack Metric 5.85 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 5.9055 in Height [Metric] 14.7320 cm Item Group 00117 Length 17.3228 in Length [Metric] 43.9420 cm Material 304 Stainless Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365205&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Phase 1/3 Returnable N Series F6 Short Circuit Current Rating 200 A Size 14.93 IN,5.11 IN,8.67 IN in Standard UL listed file E2875 Substitute Product Catalog Number GTK03C Temperature Rating -22 to 104 °F Terminal Type Lug Type Corrosion Resistant Dusttight Non-Fusible Rainproof Watertight UNSPSC 39122218 UPC 11 78590120876 UPC 12 785901208761 Warranty Description Contractual Warranty:18 months Width 9.4488 in Width [Metric] 23.6220 cm Wire Type AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Contact Form TPST Horsepower 10 hp at 600 VAC 1-Phase, 30 hp at 600 VAC 3-Phase, 15 hp at 600 VDC Voltage Rating 600 VAC//VDC Heavy application LUGS Visible blades for positive indication that switch is "OFF" Quick make/quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Spring reinforced plated copper fuse clips Viewing window
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | HU361DSVW |
| Application | Heavy application |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HU361DSVW |
| Connection | LUGS |
| Contact Configuration | Without |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 14.93 in H x 8.67 in W x 5.11 in D |
| Enclosure | NEMA 4/4X/5 STAINLESS STEEL 304 |
| Enclosure Type | NEMA 4/4X/5 |
| Environmental Conditions | RAINPROOF, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 933.16 |
| Gross Volume per Pack Metric | 15291.73 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 12.9000 lb |
| Gross Weight per Pack Metric | 5.85 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 5.9055 in |
| Height [Metric] | 14.7320 cm |
| Item Group | 00117 |
| Length | 17.3228 in |
| Length [Metric] | 43.9420 cm |
| Material | 304 Stainless Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365205&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Phase | 1/3 |
| Returnable | N |
| Series | F6 |
| Short Circuit Current Rating | 200 A |
| Size | 14.93 IN,5.11 IN,8.67 IN in |
| Standard | UL listed file E2875 |
| Substitute Product Catalog Number | GTK03C |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Corrosion Resistant Dusttight Non-Fusible Rainproof Watertight |
| UNSPSC | 39122218 |
| UPC 11 | 78590120876 |
| UPC 12 | 785901208761 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.4488 in |
| Width [Metric] | 23.6220 cm |
| Wire Type | AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Contact Form | TPST |
| Horsepower | 10 hp at 600 VAC 1-Phase, 30 hp at 600 VAC 3-Phase, 15 hp at 600 VDC |
| Voltage Rating | 600 VAC//VDC |
| Heavy application |
| LUGS |
| Visible blades for positive indication that switch is "OFF" |
| Quick make/quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced plated copper fuse clips |
| Viewing window |
