Square D™

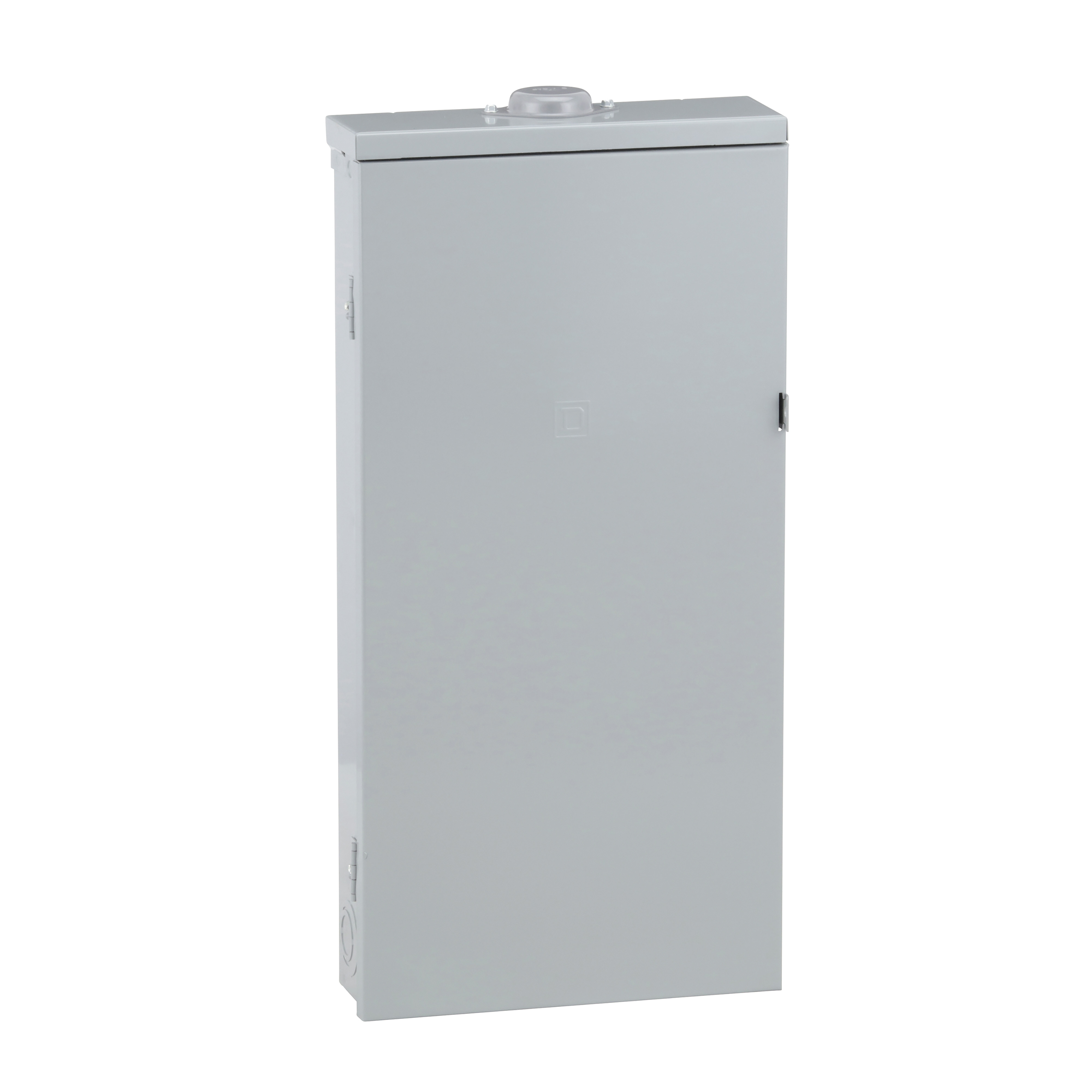

Square D™ HOM816M200PFTRB Homeline™ Single Phase Main Breaker Load Center, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt
Custom_Product_Images_Illustration
Square D™
Square D™ HOM816M200PFTRB Homeline™ Single Phase Main Breaker Load Center, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt
SKU1165863
MFGR #HOM816M200PFTRB
Your Cost: $204.32/ea
List: Square D by Schneider Electric HOM816M200PFTRB Square D by HOM OUTD 200A MB 8/16CIR FT LUGS,#6 - #1 AWG(Cu)/#6 - #2/0 AWG(Al),1-Phase,120/240 V AC,120/240 V AC,200 A,3-Wire,Convertible Mains - Breaker,Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Homeline,Load Center,NEMA 3R,Tin Plated Aluminium,UL Listed
Square D by Schneider Electric HOM816M200PFTRB Square D by HOM OUTD 200A MB 8/16CIR FT LUGS,#6 - #1 AWG(Cu)/#6 - #2/0 AWG(Al),1-Phase,120/240 V AC,120/240 V AC,200 A,3-Wire,Convertible Mains - Breaker,Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Homeline,Load Center,NEMA 3R,Tin Plated Aluminium,UL Listed
Alternate Catalog Number HOM816M200PFTRB Application DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. ARRA Compliant N Breaker Mounting Panel Breaker Type HOM Bus Rating TIN PLATED ALUMINIUM Buy American Compliant N Cable Size AWG 4...250 KCMIL COPPER OR ALUMINIUM Catalog Number HOM816M200PFTRB Country of Origin US Cover Type Surface Cover Currency USD Depth 4.5276 in Dimensions 29.86 in H x 14.75 in W x 4.52 in D Enclosure Baked enamel Gray;Welded galvannealed steel;6R Enclosure Box Size 6R Enclosure Type NEMA 3R EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 2456.75 Gross Volume per Pack Metric 40258.76 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 34.6600 lb Gross Weight per Pack Metric 15.72 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 12.1920 in Height [Metric] 12.2000 cm Housing Material Steel Item Group 00149 Length 81.0260 in Length [Metric] 81.1000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253435&lang=en-us Mounting Type Plug-On Number of Circuits 16 Number Of Feeders 16 Number Of Poles 1 Number Of Spaces 8 Phase 1 Returnable Y Standard UL E-6294 Sub Brand HOMELINE Substitute Product Catalog Number HEPD50 Type 1-Phase Convertible Neutral Rainproof UNSPSC 39121101 UPC 11 78590197395 UPC 12 785901973959 Width 39.1160 in Width [Metric] 39.1000 cm Wire Size 6 to 1 AWG, 6 to 2/0 AWG Wiring Configuration 3-Wire Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Interrupt Rating 22 kA Voltage Rating 120/240 VAC DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. CIRCUIT BREAKER 1 ) 2P 200 A 120/240 V AC MAIN SUPPLY READY ASSEMBLED-GROUNDING BAR 1 ) READY ASSEMBLED,MAIN BREAKER,TIN PLATED ALUMINIUM BUSBAR Tin plated aluminum bus construction on main lug or main circuit breaker panels Service entrance equipment capable panels Straight-in wiring to help minimize service cable installation Single captive screw interior mounting on indoor panels to ease removal New side hinge doors on outdoor convertible main panels Outdoor panel covers are lockable with padlock Gray baked enamel electrodeposited over cleaned, phosphatized steel Top or bottom feed by rotating convertible mains panels 180 deg Split branch neutral for clutter-free wiring Provisions for door lock on convertible mains panel covers Lug electrical connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HOM816M200PFTRB |
| Application | DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| ARRA Compliant | N |
| Breaker Mounting | Panel |
| Breaker Type | HOM |
| Bus Rating | TIN PLATED ALUMINIUM |
| Buy American Compliant | N |
| Cable Size | AWG 4...250 KCMIL COPPER OR ALUMINIUM |
| Catalog Number | HOM816M200PFTRB |
| Country of Origin | US |
| Cover Type | Surface Cover |
| Currency | USD |
| Depth | 4.5276 in |
| Dimensions | 29.86 in H x 14.75 in W x 4.52 in D |
| Enclosure | Baked enamel Gray;Welded galvannealed steel;6R |
| Enclosure Box Size | 6R |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 2456.75 |
| Gross Volume per Pack Metric | 40258.76 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 34.6600 lb |
| Gross Weight per Pack Metric | 15.72 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 12.1920 in |
| Height [Metric] | 12.2000 cm |
| Housing Material | Steel |
| Item Group | 00149 |
| Length | 81.0260 in |
| Length [Metric] | 81.1000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253435&lang=en-us |
| Mounting Type | Plug-On |
| Number of Circuits | 16 |
| Number Of Feeders | 16 |
| Number Of Poles | 1 |
| Number Of Spaces | 8 |
| Phase | 1 |
| Returnable | Y |
| Standard | UL E-6294 |
| Sub Brand | HOMELINE |
| Substitute Product Catalog Number | HEPD50 |
| Type | 1-Phase Convertible Neutral Rainproof |
| UNSPSC | 39121101 |
| UPC 11 | 78590197395 |
| UPC 12 | 785901973959 |
| Width | 39.1160 in |
| Width [Metric] | 39.1000 cm |
| Wire Size | 6 to 1 AWG, 6 to 2/0 AWG |
| Wiring Configuration | 3-Wire |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Interrupt Rating | 22 kA |
| Voltage Rating | 120/240 VAC |
| DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| CIRCUIT BREAKER 1 ) 2P 200 A 120/240 V AC MAIN SUPPLY READY ASSEMBLED-GROUNDING BAR 1 ) READY ASSEMBLED,MAIN BREAKER,TIN PLATED ALUMINIUM BUSBAR |
| Tin plated aluminum bus construction on main lug or main circuit breaker panels |
| Service entrance equipment capable panels |
| Straight-in wiring to help minimize service cable installation |
| Single captive screw interior mounting on indoor panels to ease removal |
| New side hinge doors on outdoor convertible main panels |
| Outdoor panel covers are lockable with padlock |
| Gray baked enamel electrodeposited over cleaned, phosphatized steel |
| Top or bottom feed by rotating convertible mains panels 180 deg |
| Split branch neutral for clutter-free wiring |
| Provisions for door lock on convertible mains panel covers |
| Lug electrical connection |
