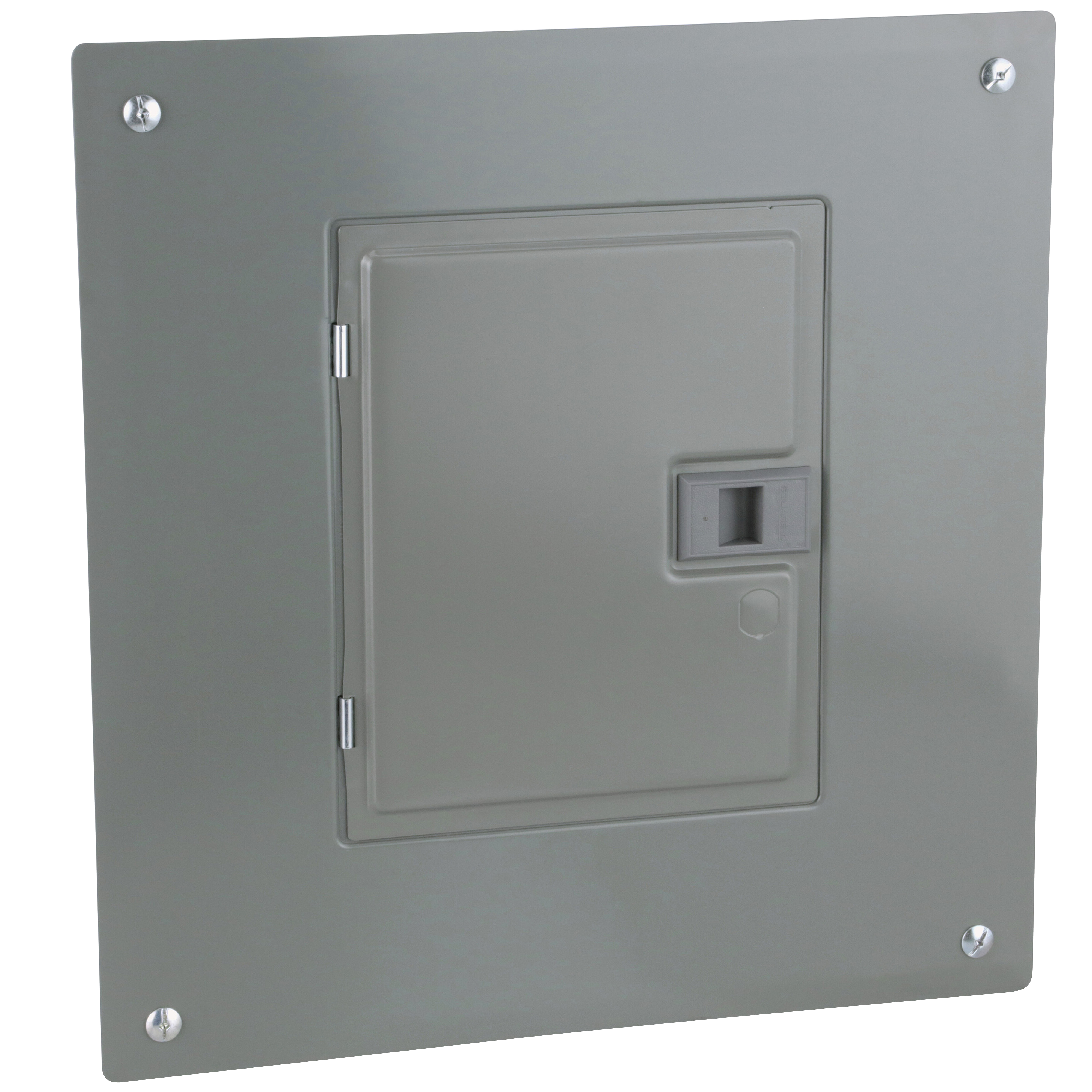

Square D™ HOM816M100PC Homeline™ Single Phase Main Breaker Load Center, 120/240 VAC, 100 A, 1 Pole, 22 kA Interrupt
Single Phase Main Breaker Load Centers
828508
MFG #: HOM816M100PC
Square D™
131.10000
/ ea
Square D by Schneider Electric HOM816M100PC Square D by HOM INDR 100A MB 8/16CIR,#4 to #250 AWG/kcmil(Cu)/#4 to #300 AWG/kcmil(Al),1-Phase,100 A,120/240 V AC,120/240 V AC,3-Wire,Combination Flush/Surface,Convertible Mains - Breaker,Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Homeline,Load Center,NEMA 1,Tin Plated Aluminium,UL Listed
- 360 Degree View URL - index.html?pid=11003&id=12945562360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=HOM816M100PC(3D Rendering URL)
- Catalog URL - Schneider_Electric_CHOM3060M200GC_Catalog.pdf(Catalog URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog 1 URL - Schneider_Electric_TCSCAR013M120_Datasheet.pdf(Catalog 1 URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=PWFDS-SYRS-0072.dwg(Computer~Aided [CAD|BIM] Model URL)
- Video - https://www.youtube.com/embed/ORZiIVWjn10(Video)
- Seller Home Page URL - us(Seller Home Page URL)
- Warranty URL - 11003_PVC2OT0S4FZHR6LN.pdf(Warranty URL)
- Line Drawing URL(Line Drawing URL)
- Install Instructions 1 URL - 11003_40FRSBOTE13WC9ZQ.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11003_AT9N7JKS8U53DEWV.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_A8KGOI1045MPXBET.zip(Tech Drawing URL)
- Applications
- Features
| DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| CIRCUIT BREAKER 1 ) 2P 100 A 120/240 V AC MAIN SUPPLY READY ASSEMBLED,MAIN BREAKER,TIN PLATED ALUMINIUM BUSBAR |
| Tin plated aluminum bus construction on main lug or main circuit breaker panels |
| Service entrance equipment capable panels |
| Straight-in wiring to help minimize service cable installation |
| Single captive screw interior mounting on indoor panels to ease removal |
| New side hinge doors on outdoor convertible main panels |
| Outdoor panel covers are lockable with padlock |
| Gray baked enamel electrodeposited over cleaned, phosphatized steel |
| Top or bottom feed by rotating enclosure |
| 8 tandem circuit breakers |
