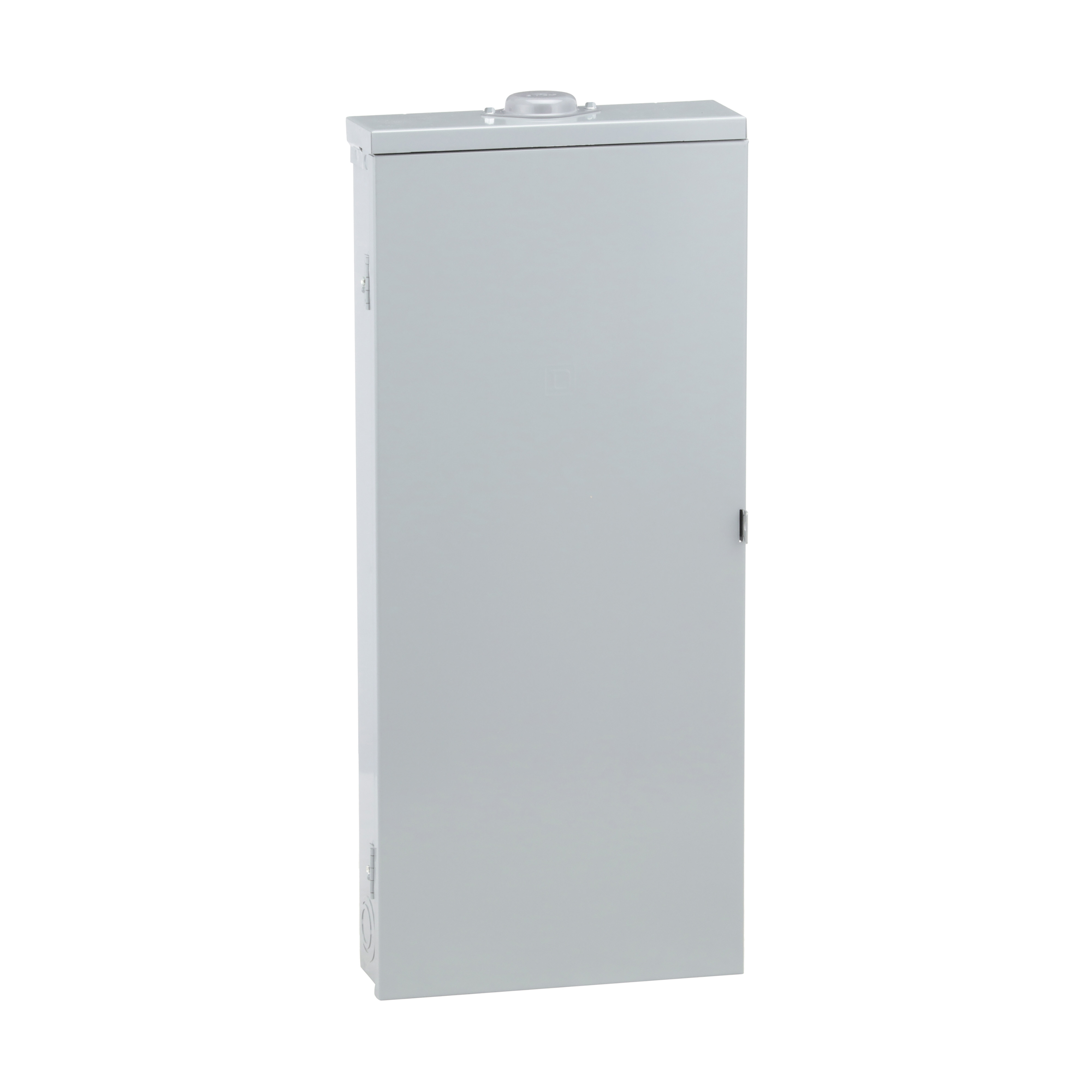

Square D™ HOM3060M200PRB Homeline™ Single Phase Main Breaker Load Center, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt
Custom_Product_Images_Illustration
Square D™ HOM3060M200PRB Homeline™ Single Phase Main Breaker Load Center, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt
SKU902511
MFGR #HOM3060M200PRB
Your Cost: $322.25/ea
List: Square D by Schneider Electric HOM3060M200PRB Square D by HOM OUTD 200A MB 30/60CIR,#4 to #250 AWG/kcmil(Cu)/#4 to #250 AWG/kcmil(Al),1-Phase,120/240 V AC,120/240 V AC,200 A,3-Wire,Convertible Mains - Breaker,Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Homeline,Load Center,NEMA 3R,Tin Plated Aluminium,UL Listed
Square D by Schneider Electric HOM3060M200PRB Square D by HOM OUTD 200A MB 30/60CIR,#4 to #250 AWG/kcmil(Cu)/#4 to #250 AWG/kcmil(Al),1-Phase,120/240 V AC,120/240 V AC,200 A,3-Wire,Convertible Mains - Breaker,Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Homeline,Load Center,NEMA 3R,Tin Plated Aluminium,UL Listed
Alternate Catalog Number HOM3060M200PRB Application DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. ARRA Compliant N Bus Rating TIN PLATED ALUMINIUM Buy American Compliant N Cable Size AWG 4...250 KCMIL ALUMINIUM/COPPER Catalog Number HOM3060M200PRB Country of Origin MX Cover Type SURFACE COVER Currency USD Depth 4.5276 in Enclosure Baked enamel Gray;Welded galvannealed steel;7R EU RoHS Indicator Y Gross Volume Per Pack 2822.08 Gross Volume per Pack Metric 46245.51 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 40.3400 lb Gross Weight per Pack Metric 18.30 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 12.9540 in Height [Metric] 12.9540 cm Item Group 00145 Length 90.6780 in Length [Metric] 90.6780 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253553&lang=en-us Number Of Feeders 60 Number Of Spaces 30 Phase 1 Returnable Y Standard UL E-6294 Sub Brand HOMELINE Substitute Product Catalog Number HOM250PSPD Type Load Center UNSPSC 39121101 UPC 11 78590197807 UPC 12 785901978077 Width 39.3700 in Width [Metric] 39.3700 cm Wiring Configuration 3-wire Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Interrupt Rating 22 KA kA Voltage Rating 120/240 VAC DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. CIRCUIT BREAKER 1 ) 2P 200 A 120/240 V AC MAIN SUPPLY READY ASSEMBLED,MAIN BREAKER,TIN PLATED ALUMINIUM BUSBAR Tin plated aluminum bus construction on main lug or main circuit breaker panels Service entrance equipment capable panels Straight-in wiring to help minimize service cable installation Single captive screw interior mounting on indoor panels to ease removal New side hinge doors on outdoor convertible main panels Outdoor panel covers are lockable with padlock Gray baked enamel electrodeposited over cleaned, phosphatized steel Top or bottom feed by rotating enclosure 30-tandem circuit breaker
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HOM3060M200PRB |
| Application | DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| ARRA Compliant | N |
| Bus Rating | TIN PLATED ALUMINIUM |
| Buy American Compliant | N |
| Cable Size | AWG 4...250 KCMIL ALUMINIUM/COPPER |
| Catalog Number | HOM3060M200PRB |
| Country of Origin | MX |
| Cover Type | SURFACE COVER |
| Currency | USD |
| Depth | 4.5276 in |
| Enclosure | Baked enamel Gray;Welded galvannealed steel;7R |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 2822.08 |
| Gross Volume per Pack Metric | 46245.51 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 40.3400 lb |
| Gross Weight per Pack Metric | 18.30 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 12.9540 in |
| Height [Metric] | 12.9540 cm |
| Item Group | 00145 |
| Length | 90.6780 in |
| Length [Metric] | 90.6780 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253553&lang=en-us |
| Number Of Feeders | 60 |
| Number Of Spaces | 30 |
| Phase | 1 |
| Returnable | Y |
| Standard | UL E-6294 |
| Sub Brand | HOMELINE |
| Substitute Product Catalog Number | HOM250PSPD |
| Type | Load Center |
| UNSPSC | 39121101 |
| UPC 11 | 78590197807 |
| UPC 12 | 785901978077 |
| Width | 39.3700 in |
| Width [Metric] | 39.3700 cm |
| Wiring Configuration | 3-wire |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Interrupt Rating | 22 KA kA |
| Voltage Rating | 120/240 VAC |
| DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| CIRCUIT BREAKER 1 ) 2P 200 A 120/240 V AC MAIN SUPPLY READY ASSEMBLED,MAIN BREAKER,TIN PLATED ALUMINIUM BUSBAR |
| Tin plated aluminum bus construction on main lug or main circuit breaker panels |
| Service entrance equipment capable panels |
| Straight-in wiring to help minimize service cable installation |
| Single captive screw interior mounting on indoor panels to ease removal |
| New side hinge doors on outdoor convertible main panels |
| Outdoor panel covers are lockable with padlock |
| Gray baked enamel electrodeposited over cleaned, phosphatized steel |
| Top or bottom feed by rotating enclosure |
| 30-tandem circuit breaker |
