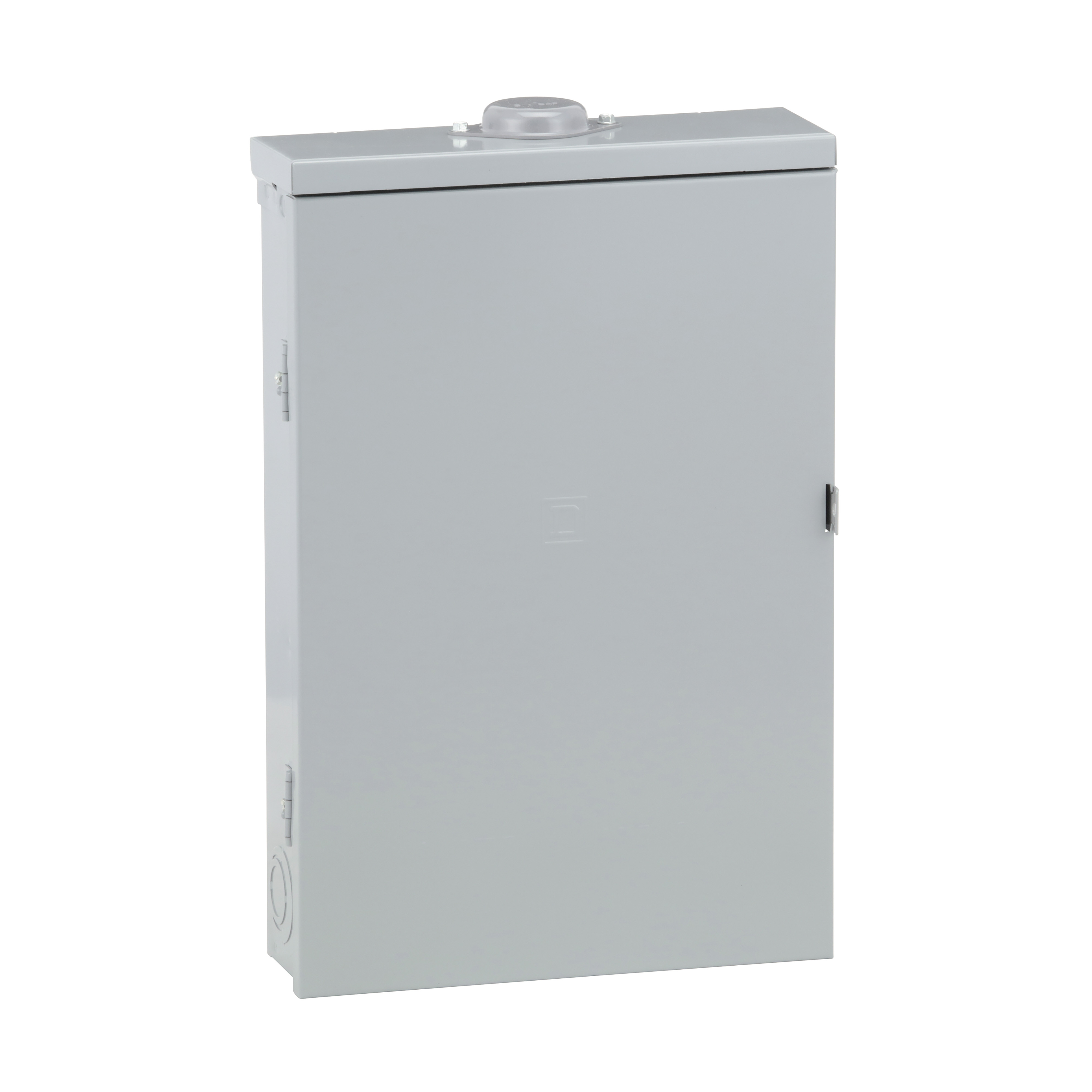

Square D™ HOM2040M100PRB Homeline™ Single Phase Main Breaker Load Center, 120/240 VAC, 100 A, 1 Pole, 22 kA Interrupt
Single Phase Main Breaker Load Centers
906473
MFG #: HOM2040M100PRB
Square D™
174.92000
/ ea
Square D by Schneider Electric HOM2040M100PRB Square D by HOM OUTD 100A MB 20/40CIR,#4 to #250 AWG/kcmil(Cu)/#4 to #300 AWG/kcmil(Al),1-Phase,100 A,120/240 V AC,120/240 V AC,3-Wire,Convertible Mains - Breaker,Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Homeline,Load Center,NEMA 3R,Tin Plated Aluminium,UL Listed
- 360 Degree View URL - index.html?pid=11003&id=12945572360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=HOM2040M100PRB(3D Rendering URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog 1 URL - Schneider_Electric_TCSCAR013M120_Datasheet.pdf(Catalog 1 URL)
- Catalog URL - Schneider_Electric_CHOM3060M200GC_Catalog.pdf(Catalog URL)
- Compliance Cert URL - Schneider_Electric_HOMVP5_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=PWFDS-SYRS-0071.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_40FRSBOTE13WC9ZQ.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_IJB40HXUS39PWODE.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_HJZAIYMX9W6547NE.zip(Tech Drawing URL)
- Warranty URL - 11003_PVC2OT0S4FZHR6LN.pdf(Warranty URL)
- Video - https://www.youtube.com/embed/uGPDmGhLQCs(Video)
- Applications
- Features
| DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| CIRCUIT BREAKER 1 ) 2P 100 A 120/240 V AC MAIN SUPPLY READY ASSEMBLED,MAIN BREAKER,TIN PLATED ALUMINIUM BUSBAR |
| Tin plated aluminum bus construction on main lug or main circuit breaker panels |
| Service entrance equipment capable panels |
| Straight-in wiring to help minimize service cable installation |
| Single captive screw interior mounting on indoor panels to ease removal |
| New side hinge doors on outdoor convertible main panels |
| Outdoor panel covers are lockable with padlock |
| Gray baked enamel electrodeposited over cleaned, phosphatized steel |
| Top or bottom feed by rotating enclosure |
| 20 tandem circuit breaker |
