Square D™

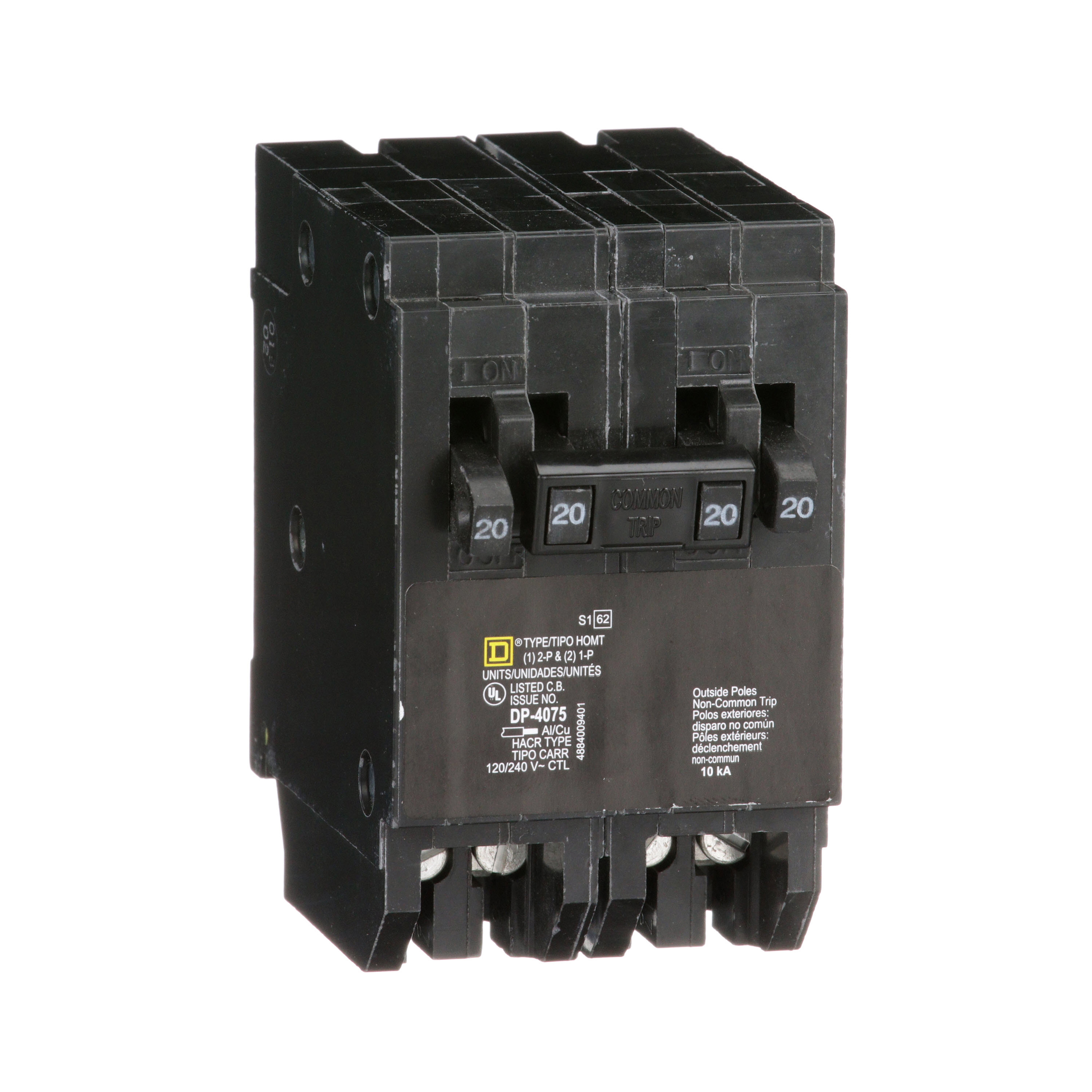

Square D™ HOM Quad Tandem Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ HOM Quad Tandem Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU329477
MFGR #HOMT2020220
Your Cost: $33.69/ea
List: Square D HOMT2020220 MINIATURE CIRCUIT BREAKER 120/240V 20A,10kA,120/240VAC,20A/20A/20A,HomeLine,Miniature Circuit Breaker,Provides overload and short circuit protection,Quad Tandem,Screw #14-8 AWG(Al/Cu),UL Listed - CSA Certified
Square D HOMT2020220 MINIATURE CIRCUIT BREAKER 120/240V 20A,10kA,120/240VAC,20A/20A/20A,HomeLine,Miniature Circuit Breaker,Provides overload and short circuit protection,Quad Tandem,Screw #14-8 AWG(Al/Cu),UL Listed - CSA Certified
Alternate Catalog Number HOMT2020220 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number HOMT2020220 Connection Type Screw Country of Origin MX Currency USD Depth 2.98 in Dimensions 2.98 in L Enclosure Type NEMA 1/2 EU RoHS Indicator Y Gross Volume Per Pack 19.80 Gross Volume per Pack Metric 324.46 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.8400 lb Gross Weight per Pack Metric 381.02 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 5.0800 in Height [Metric] 5.0800 cm Item Group 00046 Length 8.3820 in Length [Metric] 8.3820 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398151&lang=en-us Mounting Type Plug-In Number Of Poles 2 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E6294Federal Specification W-P-115bNEC CompliantCSA CertifiedHACR RatedPROP65: cancer and reproductive harm - www.P65Warnings.ca.gov Substitute Product Catalog Number HOM2040M100PC Temperature Rating 75 °C Type Quad Tandem UNSPSC 39121603 UPC 11 78590110102 UPC 12 785901101024 Warranty Description Contractual Warranty:Lifetime Width 7.6200 in Width [Metric] 7.6200 cm Wire Size 14 to 8 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 20 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC HACR rated QUAD TANDEM HACR rated Al/Cu wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HOMT2020220 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HOMT2020220 |
| Connection Type | Screw |
| Country of Origin | MX |
| Currency | USD |
| Depth | 2.98 in |
| Dimensions | 2.98 in L |
| Enclosure Type | NEMA 1/2 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 19.80 |
| Gross Volume per Pack Metric | 324.46 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.8400 lb |
| Gross Weight per Pack Metric | 381.02 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 5.0800 in |
| Height [Metric] | 5.0800 cm |
| Item Group | 00046 |
| Length | 8.3820 in |
| Length [Metric] | 8.3820 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398151&lang=en-us |
| Mounting Type | Plug-In |
| Number Of Poles | 2 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E6294Federal Specification W-P-115bNEC CompliantCSA CertifiedHACR RatedPROP65: cancer and reproductive harm - www.P65Warnings.ca.gov |
| Substitute Product Catalog Number | HOM2040M100PC |
| Temperature Rating | 75 °C |
| Type | Quad Tandem |
| UNSPSC | 39121603 |
| UPC 11 | 78590110102 |
| UPC 12 | 785901101024 |
| Warranty Description | Contractual Warranty:Lifetime |
| Width | 7.6200 in |
| Width [Metric] | 7.6200 cm |
| Wire Size | 14 to 8 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 20 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| HACR rated |
| QUAD TANDEM |
| HACR rated |
| Al/Cu wire |
