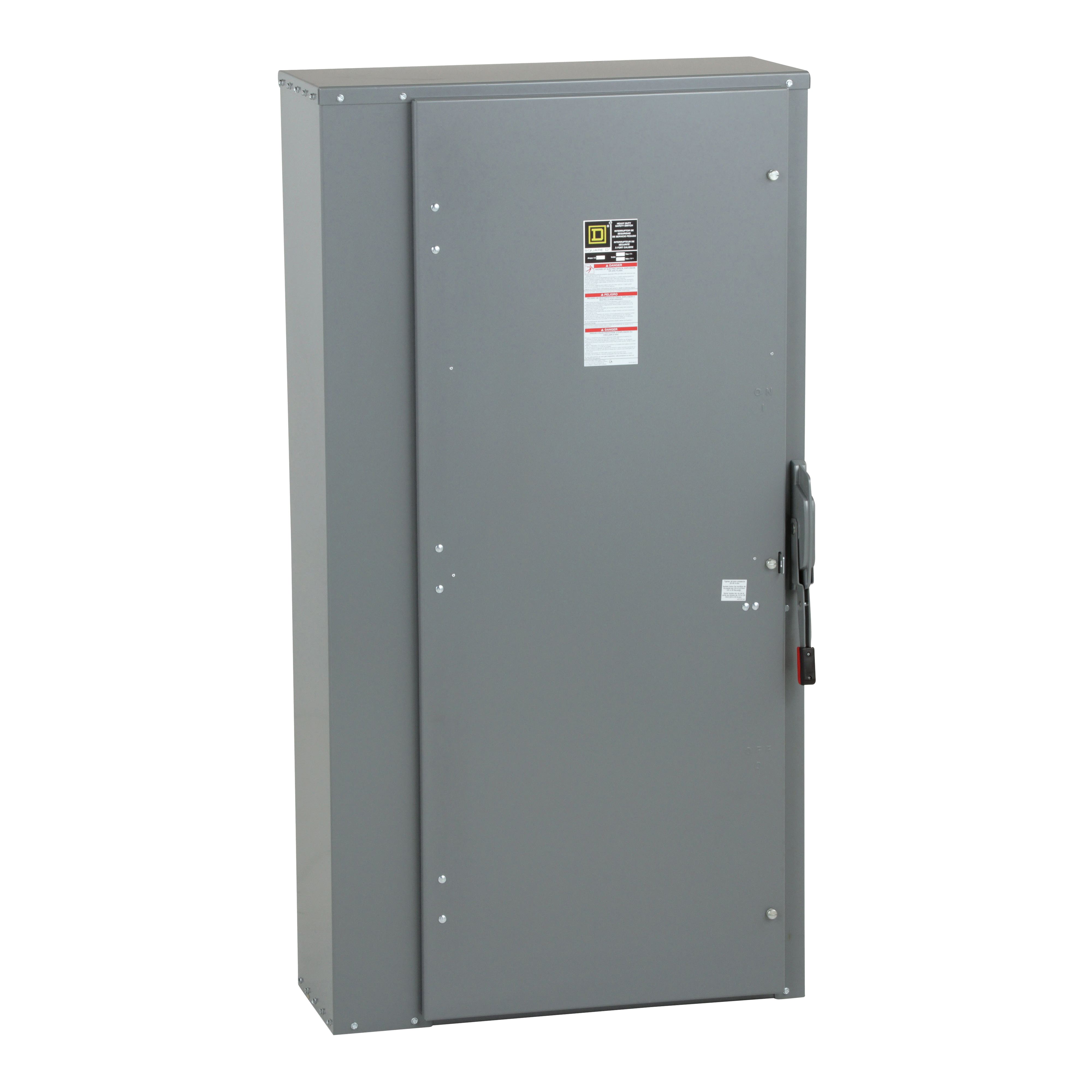

Square D™ H368 E4 Fusible General Purpose Heavy Duty Safety Switch, 600 VAC/VDC, 1200 A, 500 hp at 600 VAC/50 hp at 600 VDC, Single Throw Contact Form, 3 Poles
Custom_Product_Images_Illustration
Square D™ H368 E4 Fusible General Purpose Heavy Duty Safety Switch, 600 VAC/VDC, 1200 A, 500 hp at 600 VAC/50 hp at 600 VDC, Single Throw Contact Form, 3 Poles
SKU505749
MFGR #H368
Your Cost: $8,108.04/ea
List: Square D H368 SWITCH FUSIBLE HD 600V 1200A 3P NEMA1,1,1200A,3,600V AC600V DC,General Purpose (Indoor),Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,NEMA 1,Safety Switch,UL 98 Listed,Y
Square D H368 SWITCH FUSIBLE HD 600V 1200A 3P NEMA1,1,1200A,3,600V AC600V DC,General Purpose (Indoor),Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,NEMA 1,Safety Switch,UL 98 Listed,Y
Alternate Catalog Number H368 Application HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. ARRA Compliant N Buy American Compliant N Catalog Number H368 Color Gray Connection AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS Contact Configuration 3 kA Contact Rating Y Country of Origin MX Currency USD Dimensions 69.13 in H x 36.62 in W x 17.75 in D Enclosure NEMA 1 Environmental Conditions GENERAL PURPOSE (INDOOR) EU RoHS Indicator Y Finish Painted Gross Volume Per Pack 87223.06 Gross Volume per Pack Metric 1429324.28 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 361.0100 lb Gross Weight per Pack Metric 163.75 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 187.9600 in Height [Metric] 188.0000 cm Item Group 00053 Length 96.2660 in Length [Metric] 96.3000 cm Material Cold Rolled Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364801&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Returnable Y Size 17.75 IN,36.62 IN,69.13 IN Standard UL 98 LISTED Sub Brand HEAVY DUTY Temperature Rating -22 to 104 °F Type SAFETY SWITCH UNSPSC 39122205 UPC 11 78590119546 UPC 12 785901195467 Warranty Description Contractual Warranty:18 months Wattage 1 W Width 78.9940 in Width [Metric] 79.0000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1,200 A Voltage Rating 600 VAC//VDC HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. HEAVY DUTY Visible blades for positive indication that switch is "OFF" Quick make/quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Spring reinforced plated copper fuse clips
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | H368 |
| Application | HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | H368 |
| Color | Gray |
| Connection | AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS |
| Contact Configuration | 3 kA |
| Contact Rating | Y |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 69.13 in H x 36.62 in W x 17.75 in D |
| Enclosure | NEMA 1 |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| EU RoHS Indicator | Y |
| Finish | Painted |
| Gross Volume Per Pack | 87223.06 |
| Gross Volume per Pack Metric | 1429324.28 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 361.0100 lb |
| Gross Weight per Pack Metric | 163.75 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 187.9600 in |
| Height [Metric] | 188.0000 cm |
| Item Group | 00053 |
| Length | 96.2660 in |
| Length [Metric] | 96.3000 cm |
| Material | Cold Rolled Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364801&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Returnable | Y |
| Size | 17.75 IN,36.62 IN,69.13 IN |
| Standard | UL 98 LISTED |
| Sub Brand | HEAVY DUTY |
| Temperature Rating | -22 to 104 °F |
| Type | SAFETY SWITCH |
| UNSPSC | 39122205 |
| UPC 11 | 78590119546 |
| UPC 12 | 785901195467 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1 W |
| Width | 78.9940 in |
| Width [Metric] | 79.0000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1,200 A |
| Voltage Rating | 600 VAC//VDC |
| HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make/quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced plated copper fuse clips |
