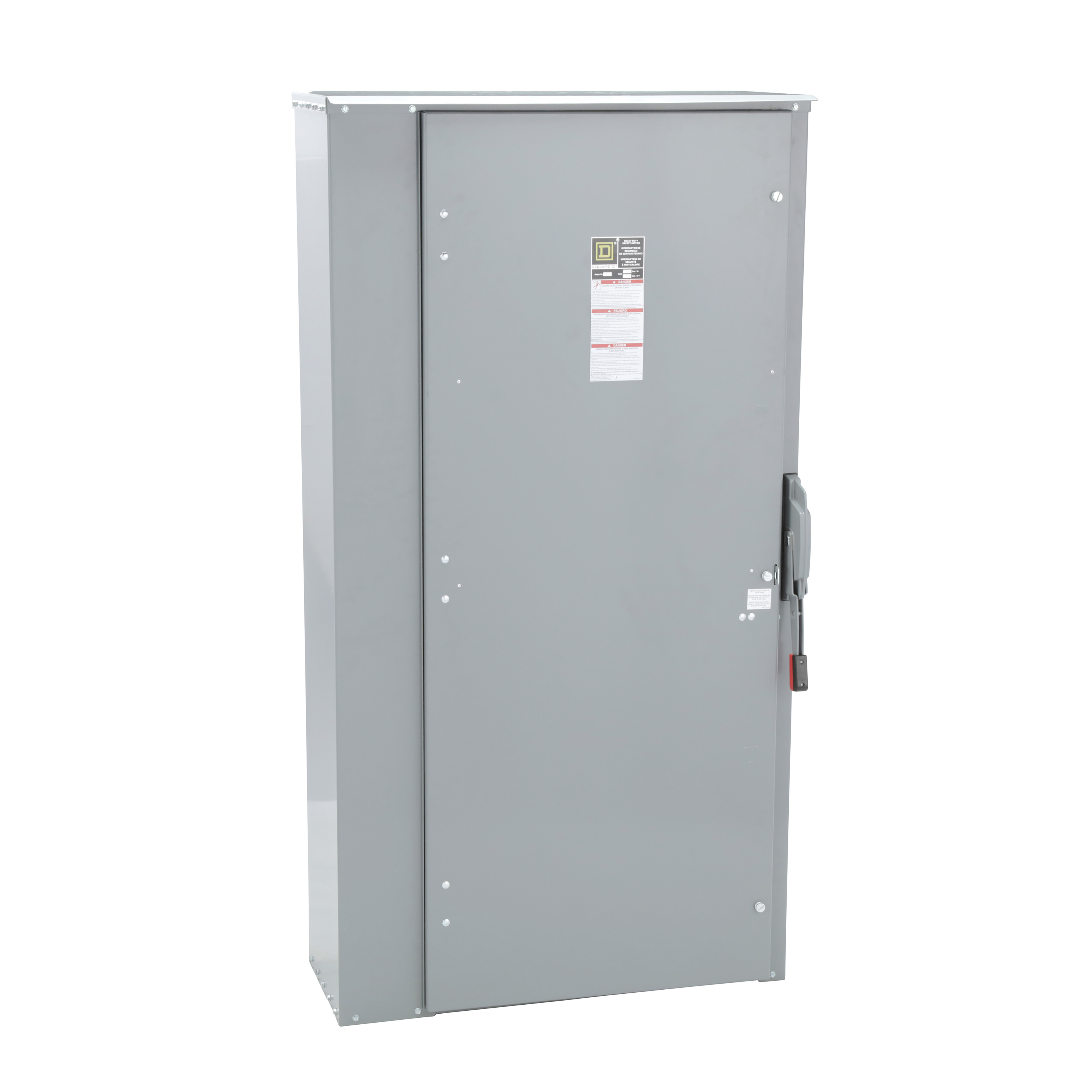

Square D™ H367NR Fusible Heavy Duty Safety Switch With Neutral, 600 VAC/VDC, 800 A, 250/50 hp, 3 Poles, TPST
Custom_Product_Images_Illustration
Square D™
Square D™ H367NR Fusible Heavy Duty Safety Switch With Neutral, 600 VAC/VDC, 800 A, 250/50 hp, 3 Poles, TPST
SKU308342
MFGR #H367NR
$/ea
Square D H367NR SWITCH FUSIBLE HD 600B 800A NEUTRAL,600 V AC/DC,800 A,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed,heavy duty,heavy duty,surface
Square D H367NR SWITCH FUSIBLE HD 600B 800A NEUTRAL,600 V AC/DC,800 A,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed,heavy duty,heavy duty,surface
Action SINGLE THROW Actuator Type Handle Alternate Catalog Number H367NR Application Heavy Duty ARRA Compliant N Buy American Compliant N Catalog Number H367NR Color Gray Connection AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS Country of Origin MX Currency USD Depth 17.75 in Dimensions 69.13 in H x 36.62 in W x 17.75 in D Enclosure NEMA 3R GALVANNEALED STEEL Enclosure Type NEMA 3R Environmental Conditions RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) EU RoHS Indicator Y Finish Galvannealed/Painted Gross Volume Per Pack 84132.00 Gross Volume per Pack Metric 1378671.08 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.6556 lb Gross Weight per Pack Metric 165.56 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 187.4520 in Height [Metric] 187.5000 cm Item Group 00054 Length 96.5200 in Length [Metric] 96.5000 cm Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364797&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Number of Wires 4 Phase 1/2/3 Returnable Y Series E4 Short Circuit Current Rating 200 kA Size 17.75 IN,36.62 IN,69.13 IN Standard UL LISTED FILE E2875 Sub Brand HEAVY DUTY Substitute Product Catalog Number H300 Temperature Rating -22 to 104 °F Terminal Type Lug Type Fusible Iceproof Rainproof Sleetproof UNSPSC 39122205 UPC 11 78590144243 UPC 12 785901442431 Warranty Description Contractual Warranty:18 months Width 76.2000 in Width [Metric] 76.2000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 800 A Contact Form TPST Horsepower 250 hp, 500 hp, 50 hp Voltage Rating 600 VAC//VDC HEAVY DUTY HEAVY DUTY Visible blades for positive indication that switch is "OFF" Quick make, quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends An interlock bypass is provided for access by authorized personnel Single throw action Factory-installed neutral (neutrals are field-installable on most general duty and heavy duty safety switches) Rain proof and sleet/ice proof (indoor/outdoor) environment conditions
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SINGLE THROW |
| Actuator Type | Handle |
| Alternate Catalog Number | H367NR |
| Application | Heavy Duty |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | H367NR |
| Color | Gray |
| Connection | AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS |
| Country of Origin | MX |
| Currency | USD |
| Depth | 17.75 in |
| Dimensions | 69.13 in H x 36.62 in W x 17.75 in D |
| Enclosure | NEMA 3R GALVANNEALED STEEL |
| Enclosure Type | NEMA 3R |
| Environmental Conditions | RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Finish | Galvannealed/Painted |
| Gross Volume Per Pack | 84132.00 |
| Gross Volume per Pack Metric | 1378671.08 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.6556 lb |
| Gross Weight per Pack Metric | 165.56 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 187.4520 in |
| Height [Metric] | 187.5000 cm |
| Item Group | 00054 |
| Length | 96.5200 in |
| Length [Metric] | 96.5000 cm |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364797&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Phase | 1/2/3 |
| Returnable | Y |
| Series | E4 |
| Short Circuit Current Rating | 200 kA |
| Size | 17.75 IN,36.62 IN,69.13 IN |
| Standard | UL LISTED FILE E2875 |
| Sub Brand | HEAVY DUTY |
| Substitute Product Catalog Number | H300 |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Fusible Iceproof Rainproof Sleetproof |
| UNSPSC | 39122205 |
| UPC 11 | 78590144243 |
| UPC 12 | 785901442431 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 76.2000 in |
| Width [Metric] | 76.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 800 A |
| Contact Form | TPST |
| Horsepower | 250 hp, 500 hp, 50 hp |
| Voltage Rating | 600 VAC//VDC |
| HEAVY DUTY |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make, quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| An interlock bypass is provided for access by authorized personnel |
| Single throw action |
| Factory-installed neutral (neutrals are field-installable on most general duty and heavy duty safety switches) |
| Rain proof and sleet/ice proof (indoor/outdoor) environment conditions |
