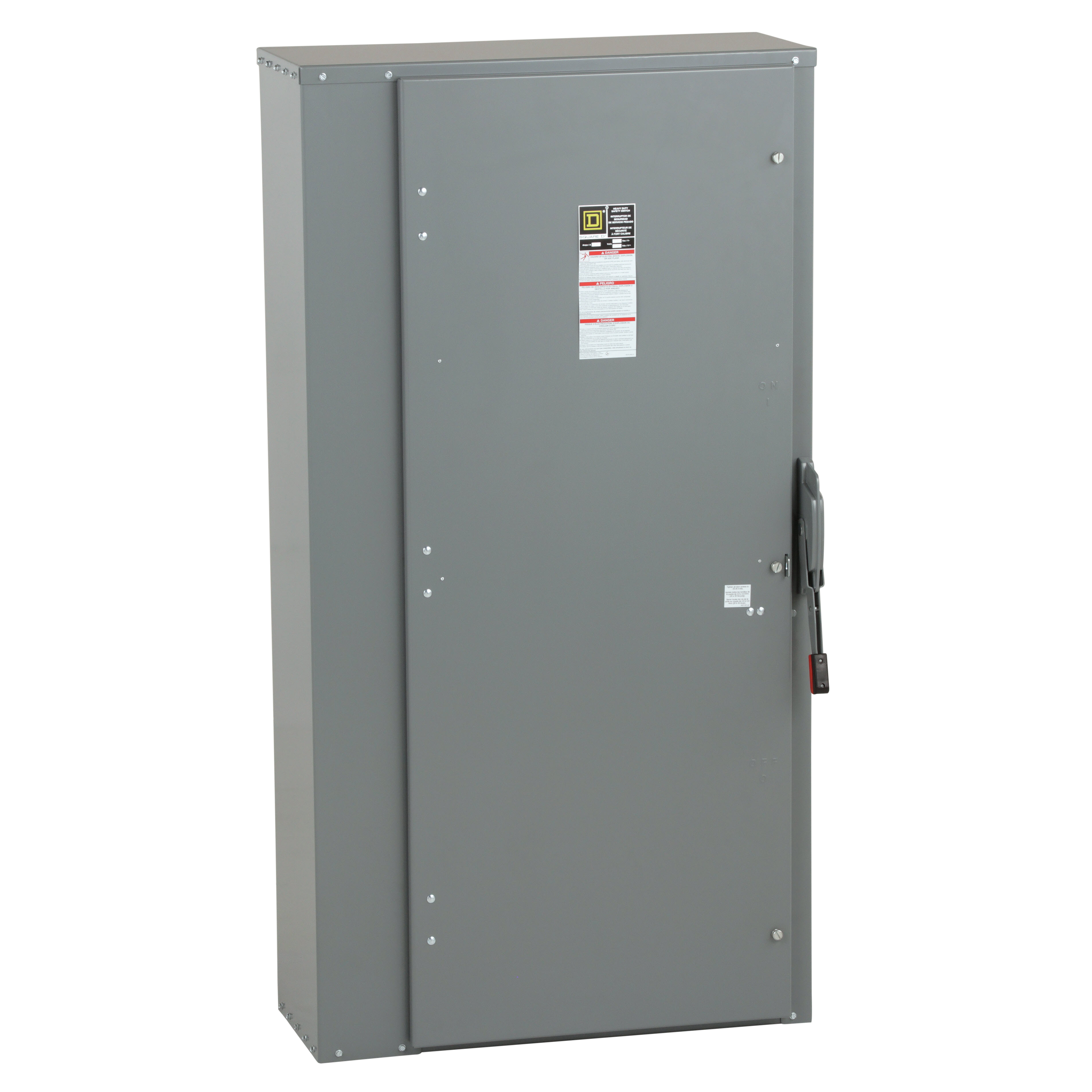

Square D™ H367 E4 Fusible General Purpose Heavy Duty Safety Switch, 600 VAC/VDC, 800 A, 500 hp at 600 VAC/50 hp at 600 VDC, Single Throw Contact Form, 3 Poles
Custom_Product_Images_Illustration
Square D™ H367 E4 Fusible General Purpose Heavy Duty Safety Switch, 600 VAC/VDC, 800 A, 500 hp at 600 VAC/50 hp at 600 VDC, Single Throw Contact Form, 3 Poles
SKU362770
MFGR #H367
Your Cost: $9,048.26/ea
List: Square D H367 SWITCH FUSIBLE HD 600V 800A 3P NEMA1,1,3,600V AC600V DC,800A,General Purpose (Indoor),Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,NEMA 1,Safety Switch,UL 98 Listed,Y
Square D H367 SWITCH FUSIBLE HD 600V 800A 3P NEMA1,1,3,600V AC600V DC,800A,General Purpose (Indoor),Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,NEMA 1,Safety Switch,UL 98 Listed,Y
Actuator Type Handle Alternate Catalog Number H367 Application HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. ARRA Compliant N Buy American Compliant N Catalog Number H367 Color Gray Connection AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS Contact Configuration 3 Contact Rating Y Country of Origin MX Currency USD Dimensions 69.13 in H x 36.62 in W x 17.75 in D Enclosure NEMA 1 Enclosure Type NEMA 1 Environmental Conditions GENERAL PURPOSE (INDOOR) EU RoHS Indicator Y Finish Painted Gross Volume Per Pack 84132.00 Gross Volume per Pack Metric 1378671.08 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 358.0100 lb Gross Weight per Pack Metric 162.39 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 187.4520 in Height [Metric] 187.5000 cm Item Group 00053 Length 96.5200 in Length [Metric] 96.5000 cm Material Cold Rolled Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364781&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Number of Wires 3 Phase 3 Returnable Y Series E4 Short Circuit Current Rating 200 kA Size 17.75 IN,36.62 IN,69.13 IN Standard UL 98 LISTED Sub Brand HEAVY DUTY Substitute Product Catalog Number H8LKE2 Temperature Rating -22 to 104 °F Terminal Type Lug Type Fusible General Purpose UNSPSC 39122205 UPC 11 78590119539 UPC 12 785901195399 Warranty Description Contractual Warranty:18 months Wattage 1 W Width 76.2000 in Width [Metric] 76.2000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 800 A Contact Form Single Throw Horsepower 500 hp at 600 VAC, 50 hp at 600 VDC Voltage Rating 600 VAC//VDC HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. HEAVY DUTY Visible blades for positive indication that switch is "OFF" Quick make/quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Spring reinforced plated copper fuse clips
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | H367 |
| Application | HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | H367 |
| Color | Gray |
| Connection | AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS |
| Contact Configuration | 3 |
| Contact Rating | Y |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 69.13 in H x 36.62 in W x 17.75 in D |
| Enclosure | NEMA 1 |
| Enclosure Type | NEMA 1 |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| EU RoHS Indicator | Y |
| Finish | Painted |
| Gross Volume Per Pack | 84132.00 |
| Gross Volume per Pack Metric | 1378671.08 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 358.0100 lb |
| Gross Weight per Pack Metric | 162.39 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 187.4520 in |
| Height [Metric] | 187.5000 cm |
| Item Group | 00053 |
| Length | 96.5200 in |
| Length [Metric] | 96.5000 cm |
| Material | Cold Rolled Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364781&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Phase | 3 |
| Returnable | Y |
| Series | E4 |
| Short Circuit Current Rating | 200 kA |
| Size | 17.75 IN,36.62 IN,69.13 IN |
| Standard | UL 98 LISTED |
| Sub Brand | HEAVY DUTY |
| Substitute Product Catalog Number | H8LKE2 |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Fusible General Purpose |
| UNSPSC | 39122205 |
| UPC 11 | 78590119539 |
| UPC 12 | 785901195399 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1 W |
| Width | 76.2000 in |
| Width [Metric] | 76.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 800 A |
| Contact Form | Single Throw |
| Horsepower | 500 hp at 600 VAC, 50 hp at 600 VDC |
| Voltage Rating | 600 VAC//VDC |
| HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make/quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced plated copper fuse clips |
