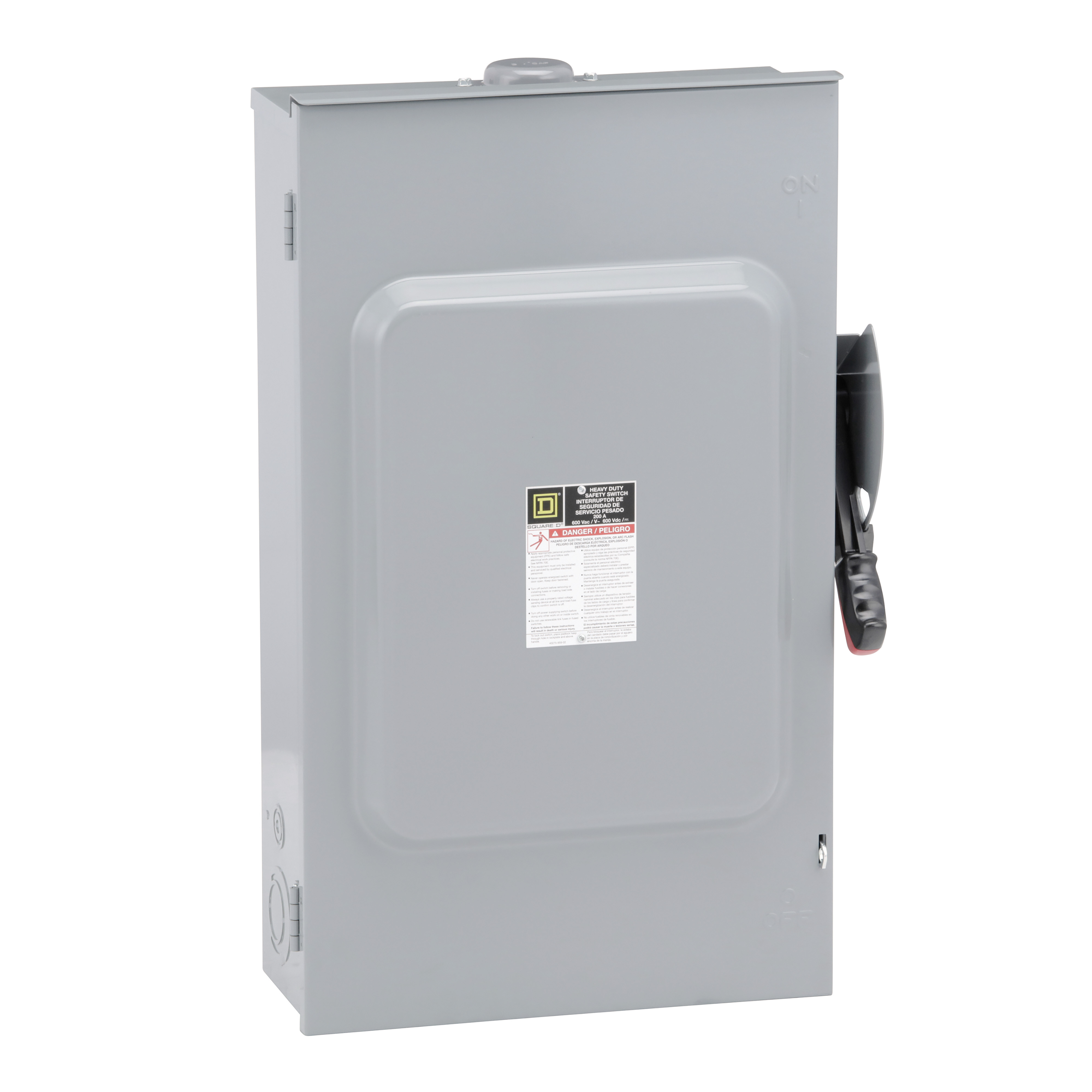

Square D™ H364RB Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 200 A, 50/60 hp, 3 Poles, TPST
Custom_Product_Images_Illustration
Square D™ H364RB Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 200 A, 50/60 hp, 3 Poles, TPST
SKU33490
MFGR #H364RB
Call For Price
List: Square D H364RB SWITCH FUSIBLE HD 600V 200A 3P NEMA3R,200 A,600 V AC/DC,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed,heavy duty,heavy duty,surface
Square D H364RB SWITCH FUSIBLE HD 600V 200A 3P NEMA3R,200 A,600 V AC/DC,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed,heavy duty,heavy duty,surface
Action SINGLE THROW Alternate Catalog Number H364RB Amperage Rating 200 A Application Heavy Duty ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number H364RB Connection AWG 6...250 KCMIL COPPER OR ALUMINIUM,LUGS Country of Origin US Currency USD Dimensions 29.25 in H x 18.63 in W x 8.5 in D Enclosure NEMA 3R GALVANNEALED STEEL Environmental Conditions RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) EU RoHS Indicator Y Finish Galvannealed Gross Volume Per Pack 4858.58 Gross Volume per Pack Metric 79617.58 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 45.9000 lb Gross Weight per Pack Metric 20.82 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 8.6614 in Height [Metric] 21.5900 cm Item Group 00009 Length 30.7087 in Length [Metric] 77.9780 cm Manufacturer Schneider Electric Material Galvannealed Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364697&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Returnable N Size 18.63 IN,29.25 IN,8.5 IN Standard UL LISTED FILE E2875 Stock Status NORMALLY STOCKED Sub Brand Heavy duty Substitute Product Catalog Number EIK2 Terminal Type Lug Type SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT UNSPSC 39122205 UPC 11 78590148271 UPC 12 785901482710 Upsell Product Catalog Number B250 Voltage Rating 600 VAC//VDC Warranty Description Contractual Warranty:18 months Width 19.6850 in Width [Metric] 49.7840 cm HEAVY DUTY HEAVY DUTY Visible blades for positive blade position indication Red and black handle indicates the on (red) or OFF (black) switch position Side opening, left hinged covers Highly visible embossed ON/OFF marking/ON/OFF labels are used on type 4x fiberglass reinforced polyester enclosures Quick-make and quick-break operating mechanism Standard with plated aluminum lugs which accept both Cu and Al wires Front removable mechanical lugs Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open An interlock bypass is provided for access by authorized personnel Rainproof and sleet/ice proof With bolt-on hub provision
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SINGLE THROW |
| Alternate Catalog Number | H364RB |
| Amperage Rating | 200 A |
| Application | Heavy Duty |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | H364RB |
| Connection | AWG 6...250 KCMIL COPPER OR ALUMINIUM,LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 29.25 in H x 18.63 in W x 8.5 in D |
| Enclosure | NEMA 3R GALVANNEALED STEEL |
| Environmental Conditions | RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Finish | Galvannealed |
| Gross Volume Per Pack | 4858.58 |
| Gross Volume per Pack Metric | 79617.58 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 45.9000 lb |
| Gross Weight per Pack Metric | 20.82 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 8.6614 in |
| Height [Metric] | 21.5900 cm |
| Item Group | 00009 |
| Length | 30.7087 in |
| Length [Metric] | 77.9780 cm |
| Manufacturer | Schneider Electric |
| Material | Galvannealed Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364697&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Returnable | N |
| Size | 18.63 IN,29.25 IN,8.5 IN |
| Standard | UL LISTED FILE E2875 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | Heavy duty |
| Substitute Product Catalog Number | EIK2 |
| Terminal Type | Lug |
| Type | SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT |
| UNSPSC | 39122205 |
| UPC 11 | 78590148271 |
| UPC 12 | 785901482710 |
| Upsell Product Catalog Number | B250 |
| Voltage Rating | 600 VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.6850 in |
| Width [Metric] | 49.7840 cm |
| HEAVY DUTY |
| HEAVY DUTY |
| Visible blades for positive blade position indication |
| Red and black handle indicates the on (red) or OFF (black) switch position |
| Side opening, left hinged covers |
| Highly visible embossed ON/OFF marking/ON/OFF labels are used on type 4x fiberglass reinforced polyester enclosures |
| Quick-make and quick-break operating mechanism |
| Standard with plated aluminum lugs which accept both Cu and Al wires |
| Front removable mechanical lugs |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| An interlock bypass is provided for access by authorized personnel |
| Rainproof and sleet/ice proof |
| With bolt-on hub provision |
