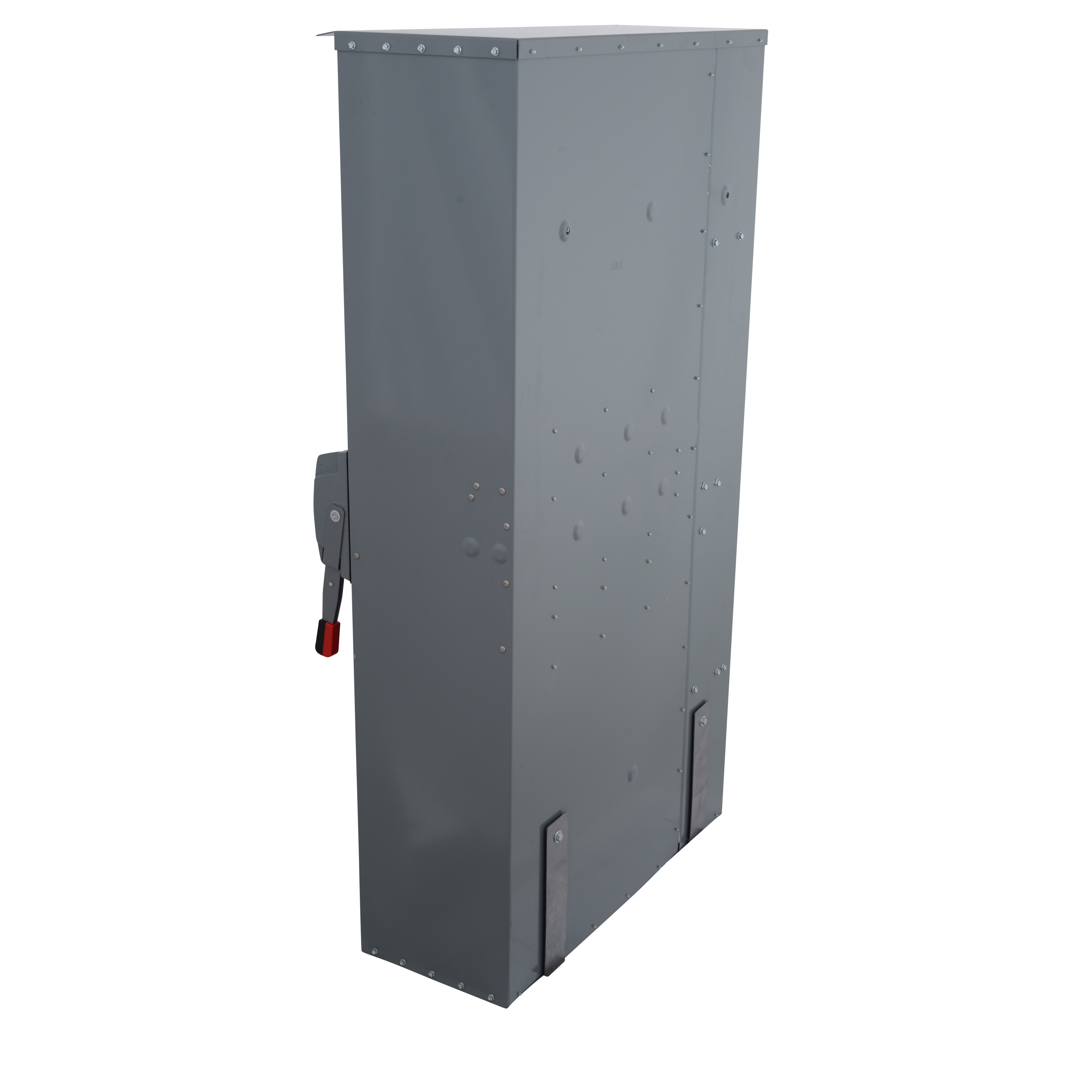

Square D™ H328NR E4 Fusible Rainproof Heavy Duty Safety Switch With Factory Installed Neutral, 240 VAC/250 VDC, 1200 A, 250 hp at 240 VAC/50 hp at 250 VDC, Single Throw Contact Form, 3 Poles
Custom_Product_Images_Illustration
Square D™ H328NR E4 Fusible Rainproof Heavy Duty Safety Switch With Factory Installed Neutral, 240 VAC/250 VDC, 1200 A, 250 hp at 240 VAC/50 hp at 250 VDC, Single Throw Contact Form, 3 Poles
SKU354330
MFGR #H328NR
$/ea
Square D H328NR SW,FUSIBLE 240V 1200A 3P NEMA3R NEUTRAL,1200A,240 Vac/250 Vdc,3,3R,Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Safety Switch,UL 98 Listed,Y
Square D H328NR SW,FUSIBLE 240V 1200A 3P NEMA3R NEUTRAL,1200A,240 Vac/250 Vdc,3,3R,Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Safety Switch,UL 98 Listed,Y
Actuator Type Handle Alternate Catalog Number H328NR Application HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. ARRA Compliant N Buy American Compliant N Catalog Number H328NR Color Gray Connection AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS Contact Configuration 3 Contact Rating Y Country of Origin MX Currency USD Depth 17.75 in Dimensions 69.13 in H x 36.62 in W x 17.75 in D Enclosure NEMA 3R Enclosure Type NEMA 3R Environmental Conditions RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) EU RoHS Indicator Y Finish Galvannealed/Painted Gross Volume Per Pack 84360.00 Gross Volume per Pack Metric 1382407.32 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.6783 lb Gross Weight per Pack Metric 167.83 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 187.9600 in Height [Metric] 188.0000 cm Item Group 00054 Length 96.5200 in Length [Metric] 96.5000 cm Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364193&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 3 Number of Wires 4 Phase 3 Returnable Y Series E4 Short Circuit Current Rating 200 kA Size 17.75 IN,36.62 IN,69.13 IN Standard UL 98 LISTED Sub Brand HEAVY DUTY Substitute Product Catalog Number B300 Temperature Rating -22 to 104 °F Terminal Type Lug Type Fusible Rainproof UNSPSC 39122205 UPC 11 78590144245 UPC 12 785901442455 Warranty Description Contractual Warranty:18 months Wattage 3R Width 76.2000 in Width [Metric] 76.2000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1200 A Contact Form Single Throw Horsepower 250 hp at 240 VAC, 50 hp at 250 VDC Voltage Rating 240/250 VAC//VDC HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. HEAVY DUTY Visible blades for positive indication that switch is "OFF" Quick make/quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Spring reinforced plated copper fuse clips Factory-installed neutral
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | H328NR |
| Application | HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | H328NR |
| Color | Gray |
| Connection | AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS |
| Contact Configuration | 3 |
| Contact Rating | Y |
| Country of Origin | MX |
| Currency | USD |
| Depth | 17.75 in |
| Dimensions | 69.13 in H x 36.62 in W x 17.75 in D |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| Environmental Conditions | RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Finish | Galvannealed/Painted |
| Gross Volume Per Pack | 84360.00 |
| Gross Volume per Pack Metric | 1382407.32 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.6783 lb |
| Gross Weight per Pack Metric | 167.83 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 187.9600 in |
| Height [Metric] | 188.0000 cm |
| Item Group | 00054 |
| Length | 96.5200 in |
| Length [Metric] | 96.5000 cm |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364193&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Phase | 3 |
| Returnable | Y |
| Series | E4 |
| Short Circuit Current Rating | 200 kA |
| Size | 17.75 IN,36.62 IN,69.13 IN |
| Standard | UL 98 LISTED |
| Sub Brand | HEAVY DUTY |
| Substitute Product Catalog Number | B300 |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Fusible Rainproof |
| UNSPSC | 39122205 |
| UPC 11 | 78590144245 |
| UPC 12 | 785901442455 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 3R |
| Width | 76.2000 in |
| Width [Metric] | 76.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1200 A |
| Contact Form | Single Throw |
| Horsepower | 250 hp at 240 VAC, 50 hp at 250 VDC |
| Voltage Rating | 240/250 VAC//VDC |
| HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make/quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced plated copper fuse clips |
| Factory-installed neutral |
