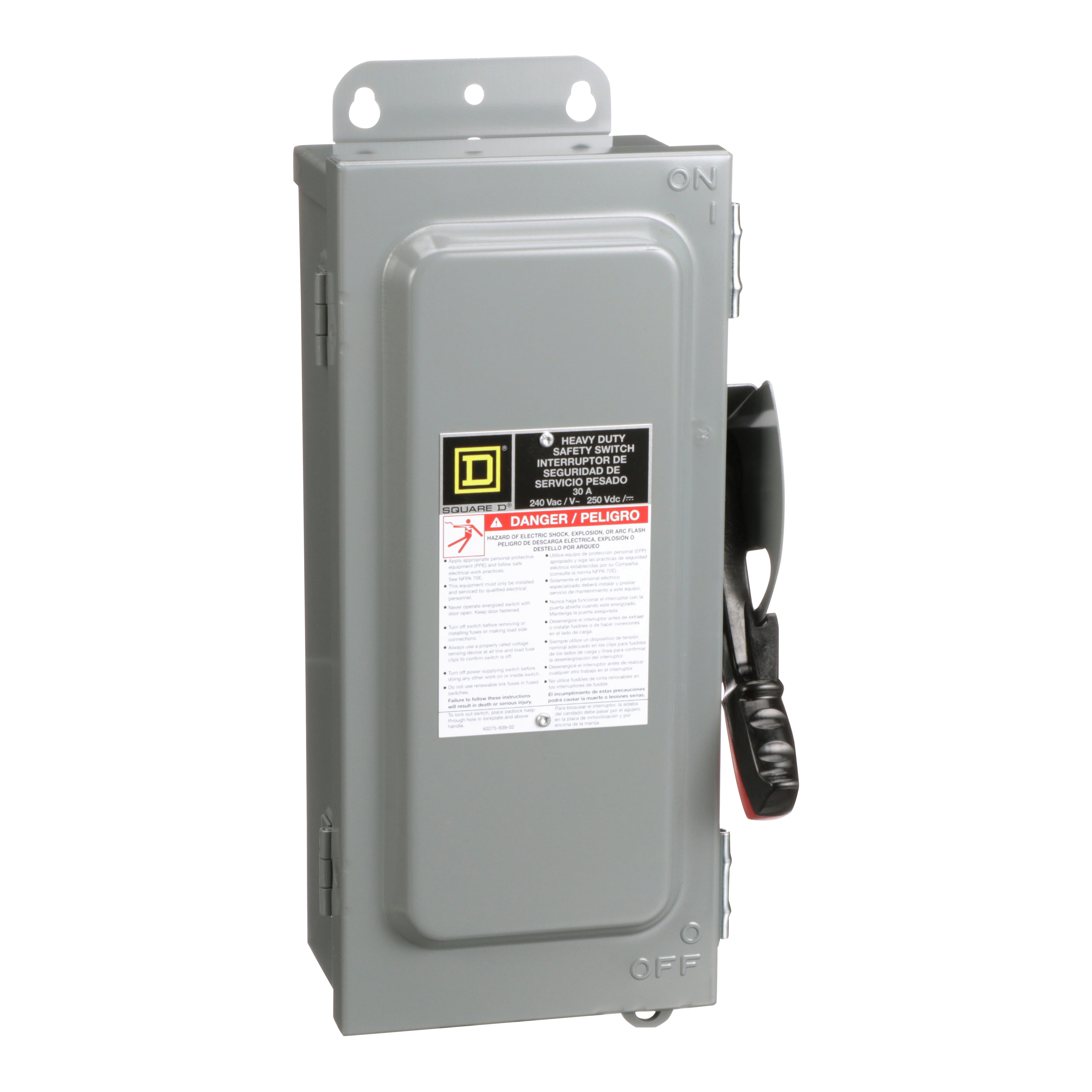

Square D™ H221AWK Fusible Heavy Duty Safety Switch, 240 VAC/250 VDC, 30 A, 1.5/5 hp, 2 Poles, DPST
Custom_Product_Images_Illustration
Square D™ H221AWK Fusible Heavy Duty Safety Switch, 240 VAC/250 VDC, 30 A, 1.5/5 hp, 2 Poles, DPST
SKU33431
MFGR #H221AWK
$/ea
Square D H221AWK SW FUSIBLE HD 240V 30A 2P POLE NEMA12 3R,250 V DC-240 V AC,30 A,Galvannealed Steel,Lugs,NEMA 3R/12,Rainproof, Sleet/Ice proof and Dust tight (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed,heavy duty,heavy duty,surface
Square D H221AWK SW FUSIBLE HD 240V 30A 2P POLE NEMA12 3R,250 V DC-240 V AC,30 A,Galvannealed Steel,Lugs,NEMA 3R/12,Rainproof, Sleet/Ice proof and Dust tight (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed,heavy duty,heavy duty,surface
Action SINGLE THROW Actuator Type Handle Alternate Catalog Number H221AWK Application Heavy Duty ARRA Compliant N Buy American Compliant N Catalog Number H221AWK Color Gray Connection AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER,LUGS Country of Origin US Currency USD Dimensions 14.6 in H x 7.55 in W x 4.96 in D Enclosure NEMA 3R/12 GALVANNEALED STEEL Enclosure Type NEMA 12 Environmental Conditions RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR) EU RoHS Indicator Y Finish Galvannealed/Painted Gross Volume Per Pack 792.00 Gross Volume per Pack Metric 12978.50 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 10.0800 lb Gross Weight per Pack Metric 4.57 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 5.1181 in Height [Metric] 13.4620 cm Item Group 00113 Length 17.3228 in Length [Metric] 44.1960 cm Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=363783&lang=en-us Mounting Surface Mounting Type Surface Number Of Poles 2 Number of Wires 2 Phase 1/2/3 Returnable N Series F6 Short Circuit Current Rating 200 kA Size 14.6 IN,4.96 IN,6.63 IN Standard UL LISTED FILE E2875 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WS-865CUL 98 File No. E2875eccn: EAR99 Sub Brand Heavy duty Substitute Product Catalog Number B100 Temperature Rating -22 to 104 °F Terminal Type Lug Type Dust-Tight Driptight Fusible Iceproof Rainproof Sleetproof UNSPSC 39122205 UPC 11 78590147750 UPC 12 785901477501 Upsell Product Catalog Number EIK031 Warranty Description Contractual Warranty:18 months Width 7.4803 in Width [Metric] 19.3040 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Contact Form DPST Horsepower 1-1/2 hp, 3 hp, 5 hp, 7-1/2 hp Voltage Rating 240/250 VAC//VDC HEAVY DUTY HEAVY DUTY Visible blades for positive indication that switch is "OFF" Quick make, quick break operating mechanism Optional viewing window allows visual verification of blade position without opening door Red and black handle indicates the ON (red)/OFF (black) condition of the switch Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open Handle lock-off provision for multiple padlocks "OFF" position Cover can be padlock closed Tangential knockouts, where provided, lessen the need for conduit offset bends Without knockouts Single throw action Without knockouts Rainproof, sleet/ice proof and dusttight (indoor/outdoor) environmental conditions
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SINGLE THROW |
| Actuator Type | Handle |
| Alternate Catalog Number | H221AWK |
| Application | Heavy Duty |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | H221AWK |
| Color | Gray |
| Connection | AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER,LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 14.6 in H x 7.55 in W x 4.96 in D |
| Enclosure | NEMA 3R/12 GALVANNEALED STEEL |
| Enclosure Type | NEMA 12 |
| Environmental Conditions | RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Finish | Galvannealed/Painted |
| Gross Volume Per Pack | 792.00 |
| Gross Volume per Pack Metric | 12978.50 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 10.0800 lb |
| Gross Weight per Pack Metric | 4.57 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 5.1181 in |
| Height [Metric] | 13.4620 cm |
| Item Group | 00113 |
| Length | 17.3228 in |
| Length [Metric] | 44.1960 cm |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=363783&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 2 |
| Number of Wires | 2 |
| Phase | 1/2/3 |
| Returnable | N |
| Series | F6 |
| Short Circuit Current Rating | 200 kA |
| Size | 14.6 IN,4.96 IN,6.63 IN |
| Standard | UL LISTED FILE E2875 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantFederal Specification WS-865CUL 98 File No. E2875eccn: EAR99 |
| Sub Brand | Heavy duty |
| Substitute Product Catalog Number | B100 |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Dust-Tight Driptight Fusible Iceproof Rainproof Sleetproof |
| UNSPSC | 39122205 |
| UPC 11 | 78590147750 |
| UPC 12 | 785901477501 |
| Upsell Product Catalog Number | EIK031 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.4803 in |
| Width [Metric] | 19.3040 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Contact Form | DPST |
| Horsepower | 1-1/2 hp, 3 hp, 5 hp, 7-1/2 hp |
| Voltage Rating | 240/250 VAC//VDC |
| HEAVY DUTY |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make, quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Without knockouts |
| Single throw action |
| Without knockouts |
| Rainproof, sleet/ice proof and dusttight (indoor/outdoor) environmental conditions |
