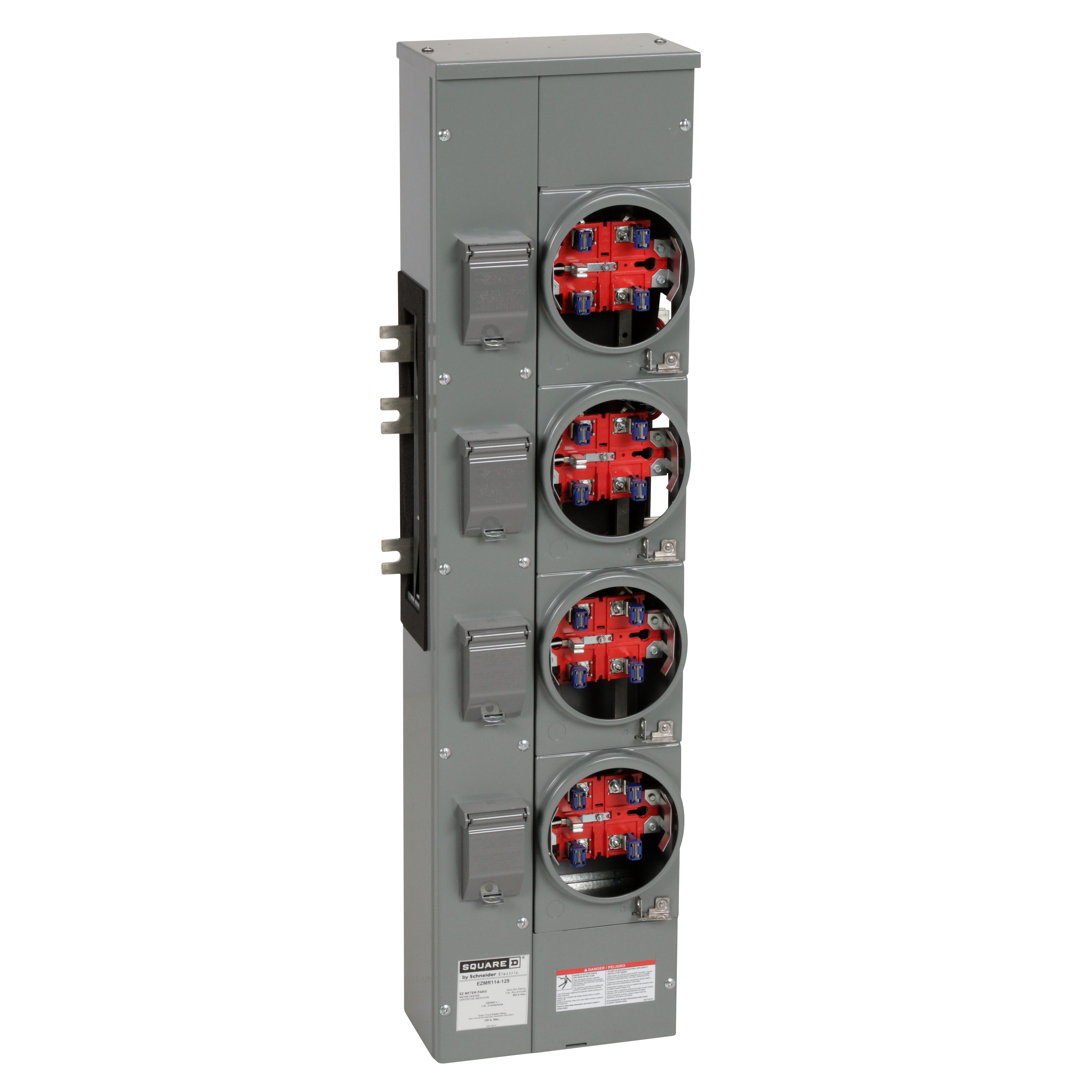

Square D™ EZMR114125 METERING EZMR BRANCH
SKU533052
MFGR #EZMR114125
Your Cost: $713.21/ea
List: Square D EZMR114125 METERING EZMR BRANCH RINGLESS 125A QO,120/240 V AC,125 A,Meter Center Branch Unit,Meter-Pak,NEMA 3R,UL Listed,no bypass,ringless,surface
Square D EZMR114125 METERING EZMR BRANCH RINGLESS 125A QO,120/240 V AC,125 A,Meter Center Branch Unit,Meter-Pak,NEMA 3R,UL Listed,no bypass,ringless,surface
Alternate Catalog Number EZMR114125 ARRA Compliant N Buy American Compliant N Bypass Type No Bypass Catalog Number EZMR114125 Country of Origin US Cover Type Ringless Currency USD Depth 7.09 in Dimensions 48.12 in H x 12.25 in W x 7.09 in D Enclosure Steel EU RoHS Indicator Y Feed Type Overhead/Underground Gross Volume Per Pack 6231.81 Gross Volume per Pack Metric 102120.67 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 63.4700 lb Gross Weight per Pack Metric 28.79 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 101.6000 in Height [Metric] 22.6000 cm Item Group 00020 Length 152.4000 in Length [Metric] 124.7000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358503&lang=en-us Mounting Surface Mounting Type Surface Number of Jaws 5 Number of Meter Positions 4 Returnable Y Series EZM Size 12.25 IN,48.12 IN in Standard UL Listed Sub Brand METER-PAK Substitute Product Catalog Number MMLK600 Type 4-Position 3-Wire UNSPSC 39121102 UPC 11 78590140218 UPC 12 785901402183 Warranty Description Contractual Warranty:18 months Width 106.6800 in Width [Metric] 37.3000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Enclosure Type NEMA 3R Phase 1 pH Voltage Rating 120/240 VAC ALUMINIUM BUSBAR Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit Meter breaker units can be supplied with either 1-phase 3-wire or 3-phase 4-wire service The main bus on residential units with 40 to 200 A circuit breaker provisions is 800 or 1200 A in units using commercial 200 and 400 A branch circuit breakers To suit individual applications, residential and commercial devices may be interconnected Basic devices for connection to 3-phase 4-wire 120/208 VAC service are factory phase balanced to save installation time The phase balancing may be modified in the field to meet most system variations Aluminum horizontal cross busbar 1-phase 3-wire service/load feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | EZMR114125 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | No Bypass |
| Catalog Number | EZMR114125 |
| Country of Origin | US |
| Cover Type | Ringless |
| Currency | USD |
| Depth | 7.09 in |
| Dimensions | 48.12 in H x 12.25 in W x 7.09 in D |
| Enclosure | Steel |
| EU RoHS Indicator | Y |
| Feed Type | Overhead/Underground |
| Gross Volume Per Pack | 6231.81 |
| Gross Volume per Pack Metric | 102120.67 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 63.4700 lb |
| Gross Weight per Pack Metric | 28.79 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 101.6000 in |
| Height [Metric] | 22.6000 cm |
| Item Group | 00020 |
| Length | 152.4000 in |
| Length [Metric] | 124.7000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358503&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number of Jaws | 5 |
| Number of Meter Positions | 4 |
| Returnable | Y |
| Series | EZM |
| Size | 12.25 IN,48.12 IN in |
| Standard | UL Listed |
| Sub Brand | METER-PAK |
| Substitute Product Catalog Number | MMLK600 |
| Type | 4-Position 3-Wire |
| UNSPSC | 39121102 |
| UPC 11 | 78590140218 |
| UPC 12 | 785901402183 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 106.6800 in |
| Width [Metric] | 37.3000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Enclosure Type | NEMA 3R |
| Phase | 1 pH |
| Voltage Rating | 120/240 VAC |
| ALUMINIUM BUSBAR |
| Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit |
| Meter breaker units can be supplied with either 1-phase 3-wire or 3-phase 4-wire service |
| The main bus on residential units with 40 to 200 A circuit breaker provisions is 800 or 1200 A in units using commercial 200 and 400 A branch circuit breakers |
| To suit individual applications, residential and commercial devices may be interconnected |
| Basic devices for connection to 3-phase 4-wire 120/208 VAC service are factory phase balanced to save installation time |
| The phase balancing may be modified in the field to meet most system variations |
| Aluminum horizontal cross busbar |
| 1-phase 3-wire service/load feed |
