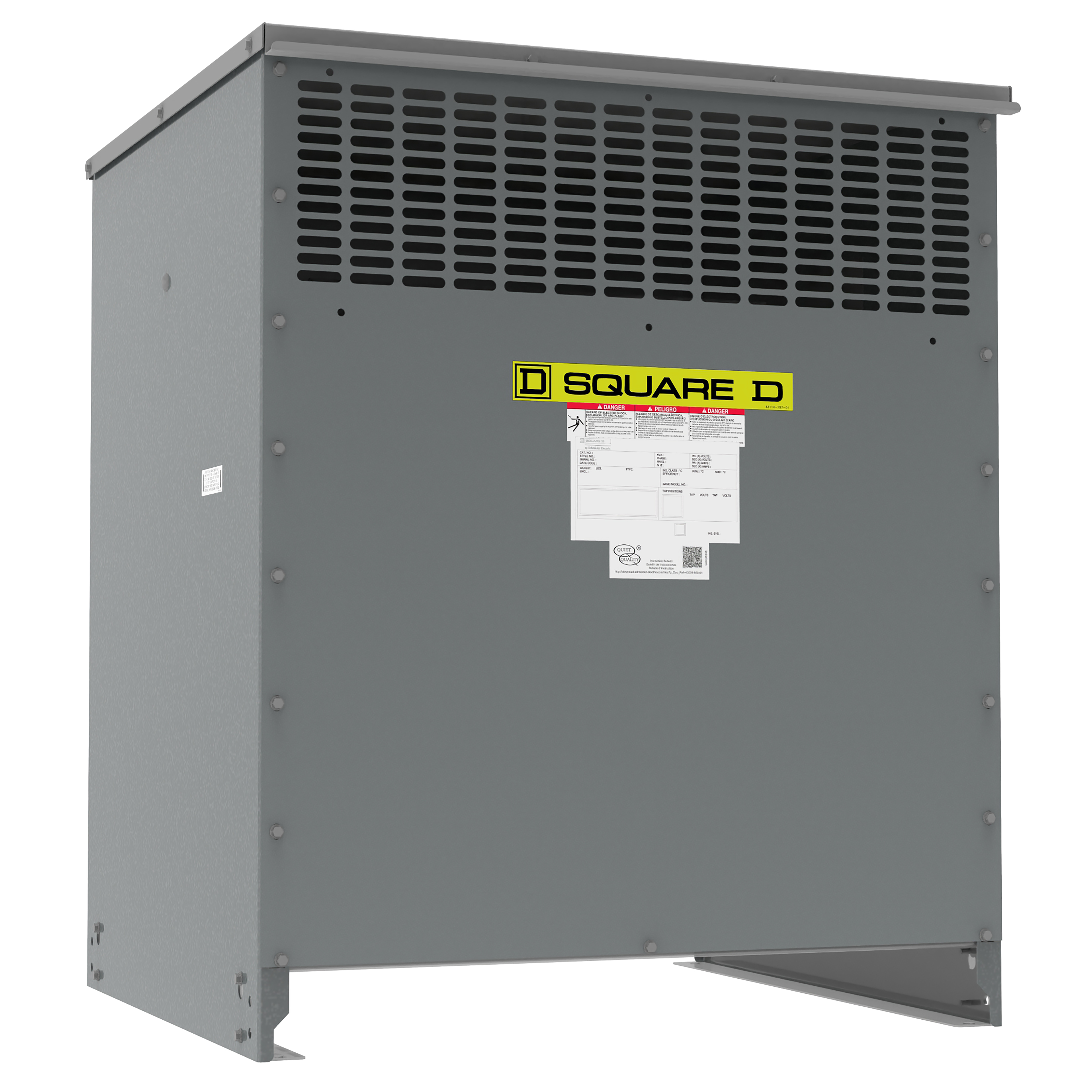

Square D™ EXN150T3H Energy Efficient Transformer, 480 V Delta Primary, 208Y/120 V Secondary, 150 kVA Power Rating, 60 Hz, 3 ph
Custom_Product_Images_Illustration
Square D™ EXN150T3H Energy Efficient Transformer, 480 V Delta Primary, 208Y/120 V Secondary, 150 kVA Power Rating, 60 Hz, 3 ph
SKU1377255
MFGR #EXN150T3H
Call For Price
List: Square D™ Energy Efficient Transformer, 480 V Delta Primary, 208Y/120 V Secondary, 150 kVA Power, 60 Hz Frequency, 3 ph, 180.42 A, 416.36 A, 150 kVA Operational/13.43 kA Let Through Current Maximum, (2) 2.5% FCAN/(4) 2.5% FCBN Taps, 4-Hole 11.1 mm NEMA Pad Primary, 4-Hole 11.1 mm NEMA Pad Secondary and 6-Hole 11.1 mm NEMA Pad Secondary Connection, Ceiling/Floor Mounting, Class 220 Insulation, NEMA 2/3R/ST-20 Enclosure, 150 deg C Rise, 98.83 % Efficiency, Aluminum Housing Material, 827 mm L x 855 mm W x 1031 mm H Dimensions
Square D™ Energy Efficient Transformer, 480 V Delta Primary, 208Y/120 V Secondary, 150 kVA Power, 60 Hz Frequency, 3 ph, 180.42 A, 416.36 A, 150 kVA Operational/13.43 kA Let Through Current Maximum, (2) 2.5% FCAN/(4) 2.5% FCBN Taps, 4-Hole 11.1 mm NEMA Pad Primary, 4-Hole 11.1 mm NEMA Pad Secondary and 6-Hole 11.1 mm NEMA Pad Secondary Connection, Ceiling/Floor Mounting, Class 220 Insulation, NEMA 2/3R/ST-20 Enclosure, 150 deg C Rise, 98.83 % Efficiency, Aluminum Housing Material, 827 mm L x 855 mm W x 1031 mm H Dimensions
Alternate Catalog Number EXN150T3H Application Low Voltage Electrical Distribution, Building Management and Security, Data Centers, Networks and Secure Power Applications ARRA Compliant N Buy American Compliant N Catalog Number EXN150T3H Cooling Natural Convection Country of Origin US Currency USD Enclosure UL type 2;UL type 3R, with 7400WS22M;UL type 3R, with 7400WS22M EU RoHS Indicator Y Gross Volume Per Pack 61845.00 Gross Volume per Pack Metric 1013454.02 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.6629 lb Gross Weight per Pack Metric 460.39 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 118.1100 in Height [Metric] 118.1100 cm Insulation Class 150 °C ; 220 °C insulated Length 88.9000 in Length [Metric] 88.9000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=508255695&lang=en-us Mounting floor;floor, with 7400FMB;floor, with 7400FMB;ceiling, with 7400CMB22M;ceiling, with 7400CMB22M Returnable Y Standard CSA C22.2 No 47;NEMA ST-20;UL 1561 Substitute Product Catalog Number 7400WS22M Type Transformer UNSPSC 39121001 UPC 11 78590135794 UPC 12 785901357940 Width 96.5200 in Width [Metric] 96.5200 cm Winding Aluminium Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Primary Voltage 480 V delta Secondary Voltage 208Y/120 V Low Voltage Electrical Distribution, Building Management and Security, Data Centers, Networks and Secure Power Applications We utilized the same conductor range for the source and Load equipment as the transformer, making the installation of the complete Square D™ package easier and faster Our space saving design allows the transformers to be mounted within 1/2 in of the wall reducing the footprint in the owner's equipment room A new fortified shipping carton has been created to protect the top and side to reduce the potential for shipping damage Industry exclusive 1/2 in clearance from rear and side, saving not only floor space, but installation time Separated primary and secondary terminals, sized to handle wire range of Square D™ equipment Distribution system connect on the incoming and outgoing Bending radius for side and bottom access Quite quality minimum of 3 dB below ST-20 standard, with most units being 6 to 10 dB below (see catalog and drawings for actual levels) New floor mounting kit leveraging latest technology for mounting equipment to concrete floor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EXN150T3H |
| Application | Low Voltage Electrical Distribution, Building Management and Security, Data Centers, Networks and Secure Power Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EXN150T3H |
| Cooling | Natural Convection |
| Country of Origin | US |
| Currency | USD |
| Enclosure | UL type 2;UL type 3R, with 7400WS22M;UL type 3R, with 7400WS22M |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 61845.00 |
| Gross Volume per Pack Metric | 1013454.02 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.6629 lb |
| Gross Weight per Pack Metric | 460.39 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 118.1100 in |
| Height [Metric] | 118.1100 cm |
| Insulation Class | 150 °C ; 220 °C insulated |
| Length | 88.9000 in |
| Length [Metric] | 88.9000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=508255695&lang=en-us |
| Mounting | floor;floor, with 7400FMB;floor, with 7400FMB;ceiling, with 7400CMB22M;ceiling, with 7400CMB22M |
| Returnable | Y |
| Standard | CSA C22.2 No 47;NEMA ST-20;UL 1561 |
| Substitute Product Catalog Number | 7400WS22M |
| Type | Transformer |
| UNSPSC | 39121001 |
| UPC 11 | 78590135794 |
| UPC 12 | 785901357940 |
| Width | 96.5200 in |
| Width [Metric] | 96.5200 cm |
| Winding | Aluminium |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Primary Voltage | 480 V delta |
| Secondary Voltage | 208Y/120 V |
| Low Voltage Electrical Distribution, Building Management and Security, Data Centers, Networks and Secure Power Applications |
| We utilized the same conductor range for the source and Load equipment as the transformer, making the installation of the complete Square D™ package easier and faster |
| Our space saving design allows the transformers to be mounted within 1/2 in of the wall reducing the footprint in the owner's equipment room |
| A new fortified shipping carton has been created to protect the top and side to reduce the potential for shipping damage |
| Industry exclusive 1/2 in clearance from rear and side, saving not only floor space, but installation time |
| Separated primary and secondary terminals, sized to handle wire range of Square D™ equipment |
| Distribution system connect on the incoming and outgoing |
| Bending radius for side and bottom access |
| Quite quality minimum of 3 dB below ST-20 standard, with most units being 6 to 10 dB below (see catalog and drawings for actual levels) |
| New floor mounting kit leveraging latest technology for mounting equipment to concrete floor |
