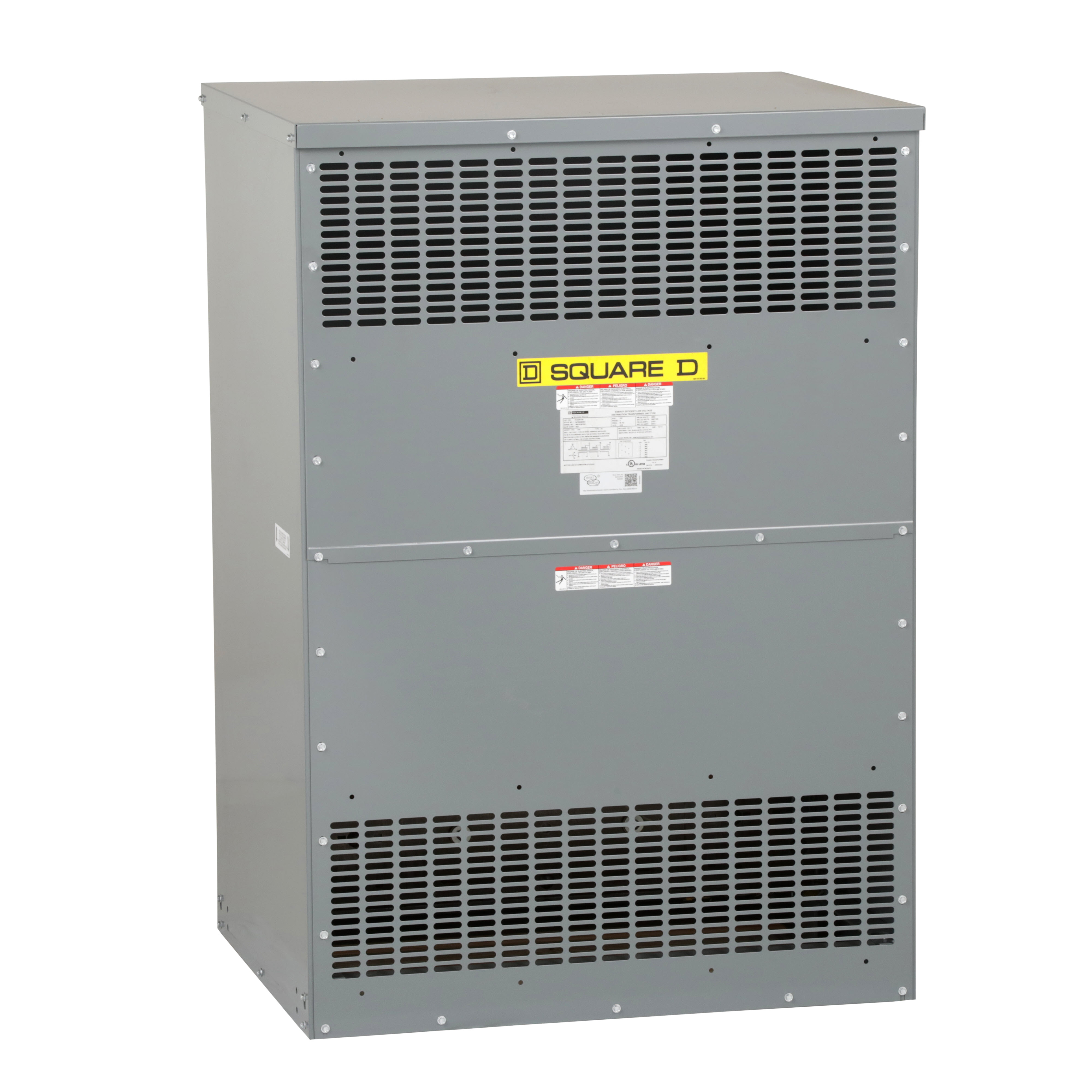

Square D™ EX225T3H Dry Energy Efficient Low Voltage Distribution Transformer, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 225 kVA Power Rating, 60 Hz, 3 Phase
General Purpose - Multi-Use Transformers
1210484
MFG #: EX225T3H
Square D™
10045.79000
/ ea
Square D™ Distribution Transformer, Dry Energy Efficient Low Voltage, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 225 kVA, 60 Hz, 3, 6 Taps, Floor Mount, 220 deg C, NEMA 1/3R, 150 deg C, 99.06 % Efficiency, 832 mm L x 1018 mm W x 57.52 in H
- 360 Degree View URL - index.html?pid=11003&id=13755864360Den&ext=webp(360 Degree View URL)
- Brochure URL - 016b9f7c82a3bc13811aa603a464d81633ed2583.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=EX225T3H.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_5GSYLJKZBQ9ADUCM.pdf(Spec Sheet URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=7420DB0501.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_ZT4XVAGU7KR0CBOL.zip(Tech Drawing URL)
- User Manual URL - 11003_FVNW427MP6XS9UZ0.pdf(User Manual URL)
- Applications
- Features
| Building Management, Security, Data Centers, Networks, Secure Power and Low Voltage Electrical Distribution Applications |
| Our space saving design allows the transformers to be mounted within 1/2 in of the wall reducing the footprint in the owner's equipment room |
| A new fortified shipping carton has been created to protect the top and side to reduce the potential for shipping damage |
| Industry exclusive 1/2 in clearance from rear and side, saving not only floor space, but installation time |
| Separated primary and secondary terminals, sized to handle wire range of Square D™ equipment |
| Distribution system connect on the incoming and outgoing |
| Bending radius for side and bottom access |
| Self-certified Seismic qualified via ICS ES AC 156 shake table testing |
| Aluminum winding |
| (2) 2.5% FCAN, (4) 2.5% FCBN tap-offs |
