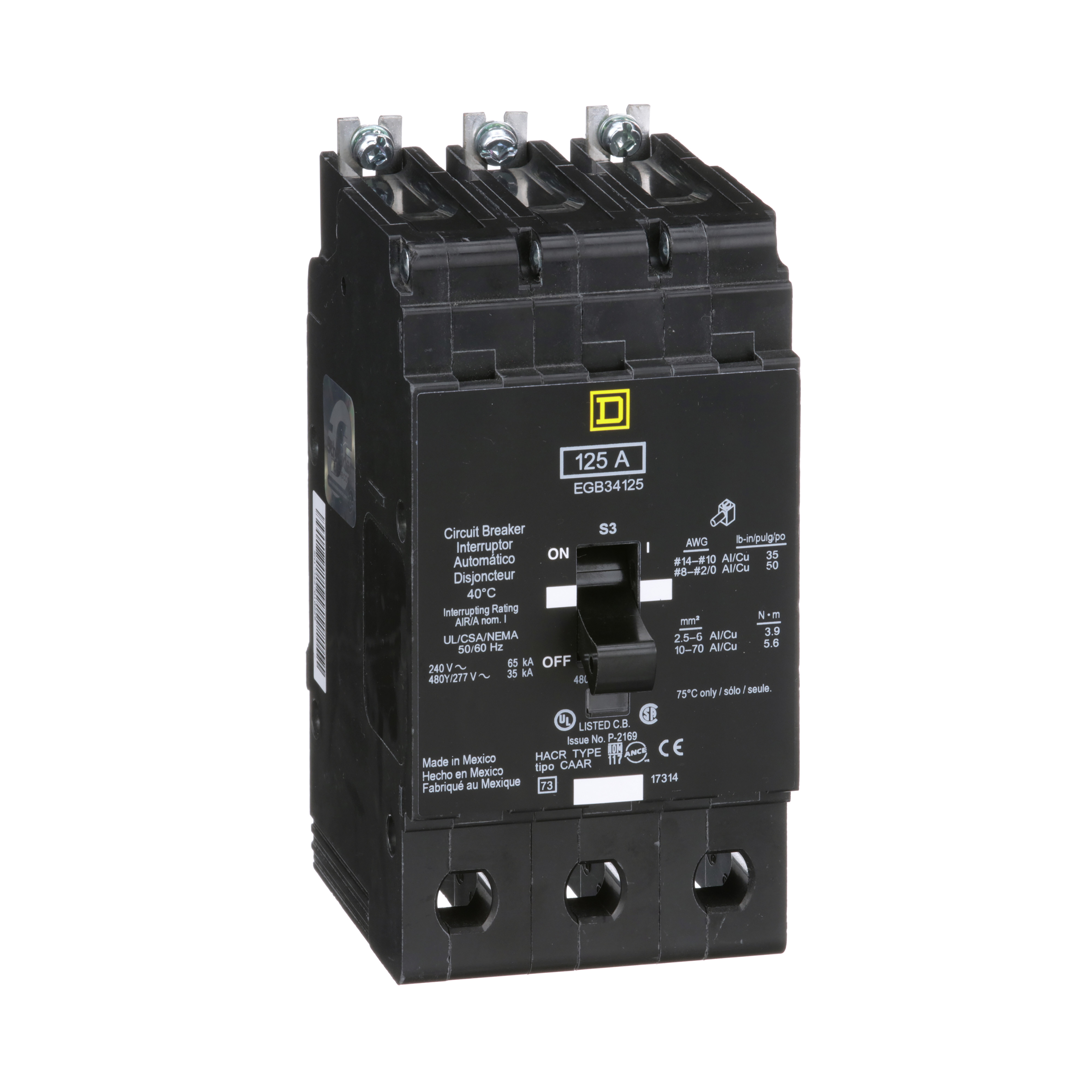

Square D™ EGB34125 Miniature Circuit Breaker, 277/480 VAC, 125 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ EGB34125 Miniature Circuit Breaker, 277/480 VAC, 125 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU275763
MFGR #EGB34125
$/ea
Square D EGB34125 MINIATURE CIRCUIT BREAKER 480Y/277V 125A,125A,35kA,Bolt-On,E frame,E-Frame,Hold 1000A - Trip 2300A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EGB34125 MINIATURE CIRCUIT BREAKER 480Y/277V 125A,125A,35kA,Bolt-On,E frame,E-Frame,Hold 1000A - Trip 2300A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EGB34125 Application HACR rated; NF panelboard ARRA Compliant N Buy American Compliant N Catalog Number EGB34125 Connection LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) Connection Type Lug Country of Origin US Currency USD Depth 4.05 in Dimensions 4.05 in L x 2.94 in W x 5.66 in H EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 267.84 Gross Volume per Pack Metric 4389.09 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0158 lb Gross Weight per Pack Metric 1.62 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 11.9380 in Height [Metric] 11.9380 cm Item Group 00936 Length 24.8920 in Length [Metric] 24.8920 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253633&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedHACR RatedUL ListedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand E FRAME Substitute Product Catalog Number HPAFD Temperature Rating 40 °C Trip Range 1000 to 2300 A Type Standard UNSPSC 39121603 UPC 11 78590132634 UPC 12 785901326342 Warranty Description Contractual Warranty:18 months Width 15.4940 in Width [Metric] 15.4940 cm Wire Size 12 to 2/0 AWG, 14 to 2/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Interrupt Rating 35 kA Trip Type Thermal Magnetic Voltage Rating 277/480Y VAC HACR rated; NF panelboard BOLT-ON Visi-Trip™ feature For merchandised NF panelboards Optional factory installed electrical accessories include, 120 VAC shunt trip, 1A/1B auxiliary switch and normally open alarm switch Optional handle padlock attachment Optional copper and compression lugs 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EGB34125 |
| Application | HACR rated; NF panelboard |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EGB34125 |
| Connection | LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) |
| Connection Type | Lug |
| Country of Origin | US |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 4.05 in L x 2.94 in W x 5.66 in H |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 267.84 |
| Gross Volume per Pack Metric | 4389.09 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0158 lb |
| Gross Weight per Pack Metric | 1.62 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 11.9380 in |
| Height [Metric] | 11.9380 cm |
| Item Group | 00936 |
| Length | 24.8920 in |
| Length [Metric] | 24.8920 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253633&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedHACR RatedUL ListedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | E FRAME |
| Substitute Product Catalog Number | HPAFD |
| Temperature Rating | 40 °C |
| Trip Range | 1000 to 2300 A |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590132634 |
| UPC 12 | 785901326342 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.4940 in |
| Width [Metric] | 15.4940 cm |
| Wire Size | 12 to 2/0 AWG, 14 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Interrupt Rating | 35 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277/480Y VAC |
| HACR rated; NF panelboard |
| BOLT-ON |
| Visi-Trip™ feature |
| For merchandised NF panelboards |
| Optional factory installed electrical accessories include, 120 VAC shunt trip, 1A/1B auxiliary switch and normally open alarm switch |
| Optional handle padlock attachment |
| Optional copper and compression lugs |
| 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating |
