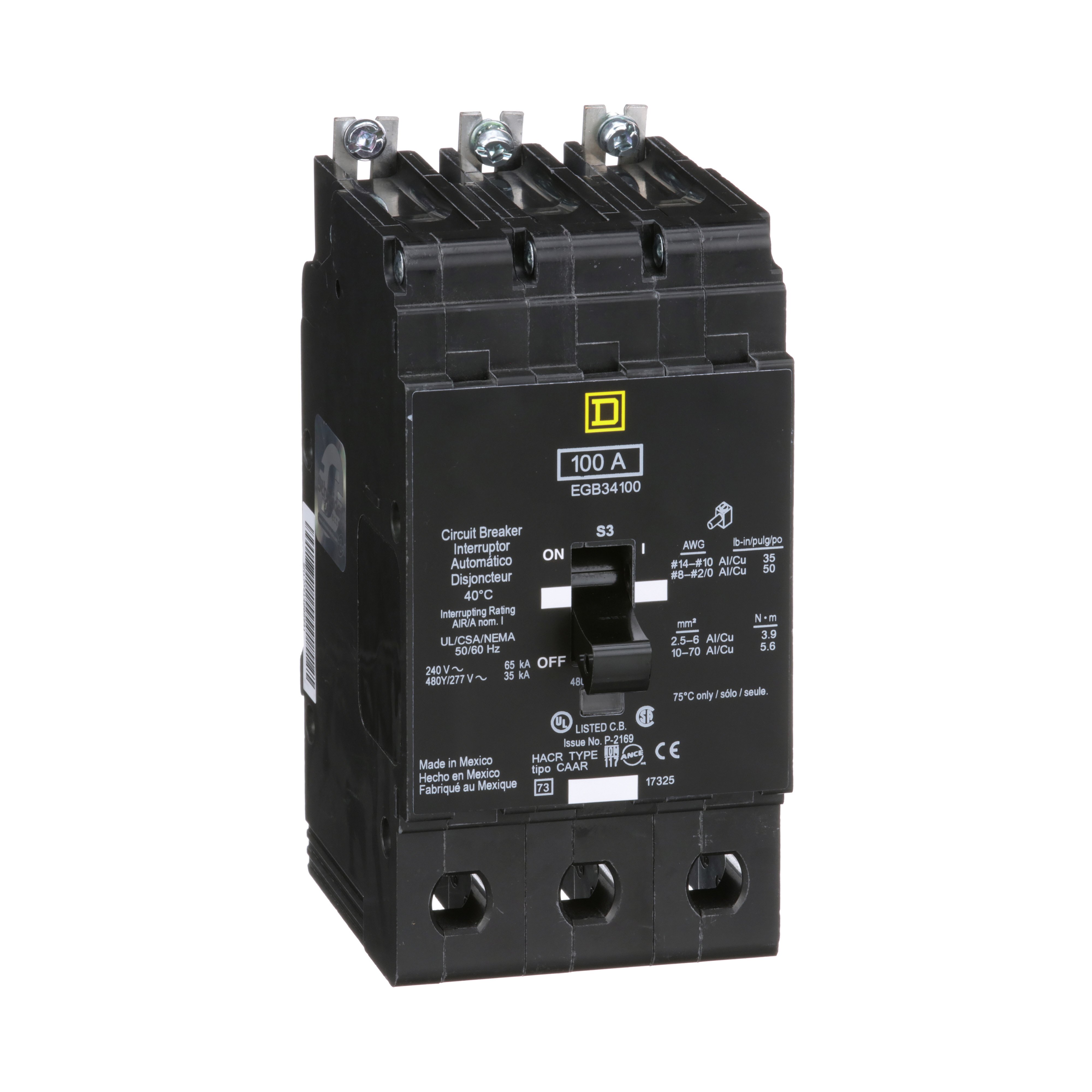

Square D™ EGB34100 Miniature Circuit Breaker, 277/480 VAC, 100 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ EGB34100 Miniature Circuit Breaker, 277/480 VAC, 100 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU63842
MFGR #EGB34100
$/ea
Square D EGB34100 MINIATURE CIRCUIT BREAKER 480Y/277V 100A,100A,35kA,Bolt-On,E frame,E-Frame,Hold 1000A - Trip 2300A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EGB34100 MINIATURE CIRCUIT BREAKER 480Y/277V 100A,100A,35kA,Bolt-On,E frame,E-Frame,Hold 1000A - Trip 2300A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EGB34100 Application HACR rated; NF panelboard ARRA Compliant N Buy American Compliant N Catalog Number EGB34100 Connection LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) Connection Type Lug Country of Origin MX Currency USD Depth 4.05 in Dimensions 4.05 in L x 2.94 in W x 5.66 in H EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 297.72 Gross Volume per Pack Metric 4878.80 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0161 lb Gross Weight per Pack Metric 1.64 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 15.2400 in Height [Metric] 11.9000 cm Item Group 00936 Length 25.4000 in Length [Metric] 25.4000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253643&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedNOM 117PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov Sub Brand E FRAME Substitute Product Catalog Number HPAFD Temperature Rating 104 °F Trip Range 1000 to 2300 A Type Molded Case Standard UNSPSC 39121603 UPC 11 78590131118 UPC 12 785901311188 Warranty Description Contractual Warranty:18 months Width 17.7800 in Width [Metric] 15.5000 cm Wire Size 12 to 2 AWG, 14 to 2/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Interrupt Rating 35 kA Trip Type Thermal Magnetic Voltage Rating 277/480Y VAC HACR rated; NF panelboard BOLT-ON Visi-Trip® trip indicator 1000 A hold, 2300 A trip current For merchandised NF panelboards 12 to 2/0 AWG aluminum, 14 to 2/0 AWG copper wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EGB34100 |
| Application | HACR rated; NF panelboard |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EGB34100 |
| Connection | LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) |
| Connection Type | Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 4.05 in L x 2.94 in W x 5.66 in H |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 297.72 |
| Gross Volume per Pack Metric | 4878.80 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0161 lb |
| Gross Weight per Pack Metric | 1.64 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 15.2400 in |
| Height [Metric] | 11.9000 cm |
| Item Group | 00936 |
| Length | 25.4000 in |
| Length [Metric] | 25.4000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253643&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedNOM 117PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| Sub Brand | E FRAME |
| Substitute Product Catalog Number | HPAFD |
| Temperature Rating | 104 °F |
| Trip Range | 1000 to 2300 A |
| Type | Molded Case Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590131118 |
| UPC 12 | 785901311188 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 17.7800 in |
| Width [Metric] | 15.5000 cm |
| Wire Size | 12 to 2 AWG, 14 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Interrupt Rating | 35 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277/480Y VAC |
| HACR rated; NF panelboard |
| BOLT-ON |
| Visi-Trip® trip indicator |
| 1000 A hold, 2300 A trip current |
| For merchandised NF panelboards |
| 12 to 2/0 AWG aluminum, 14 to 2/0 AWG copper wire |
