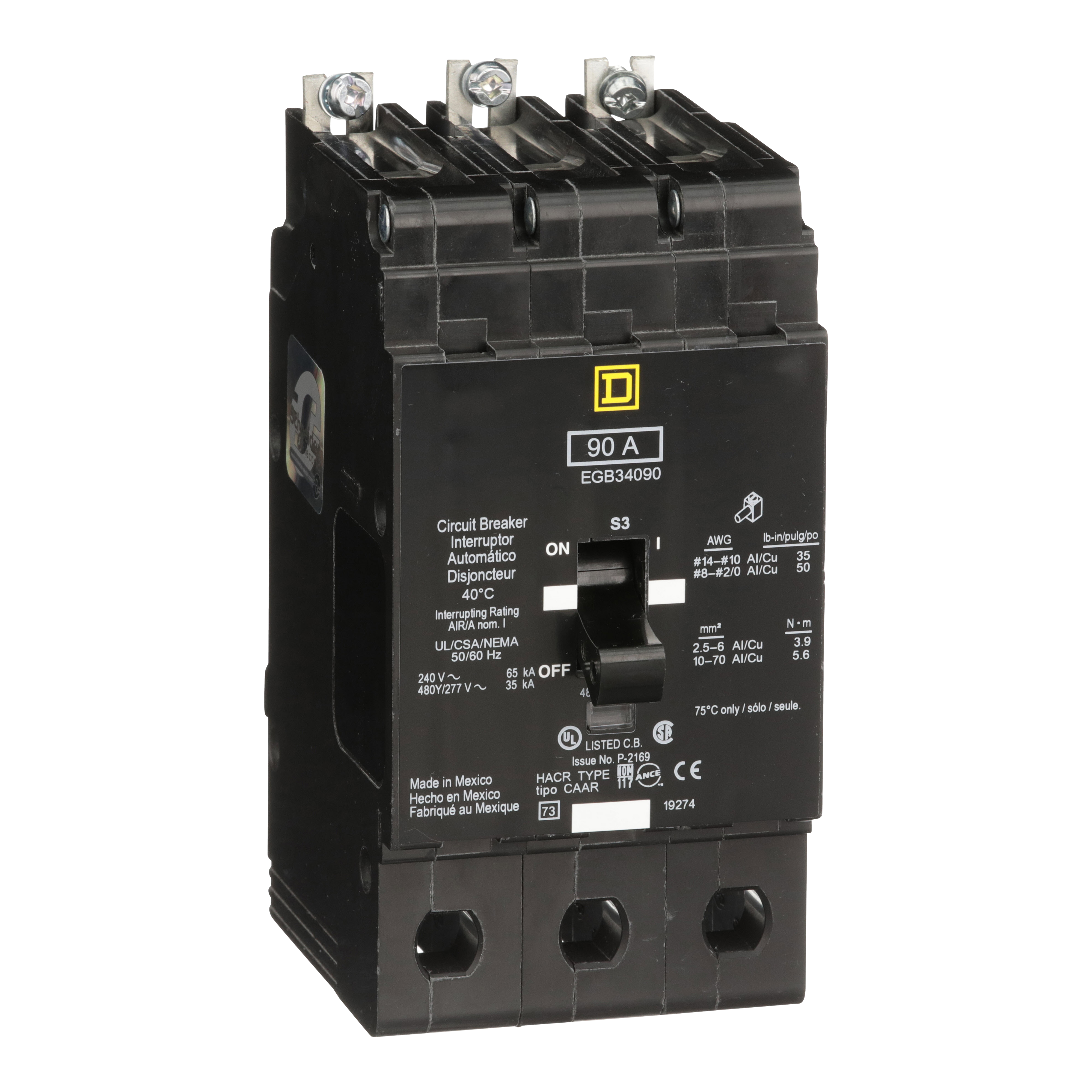

Square D™ EGB34090 Type EGB Circuit Breaker, 480Y/277 VAC, 90 A, 65 kA at 240 VAC/35 kA at 480Y/277 VAC Interrupt
Custom_Product_Images_Illustration
Square D™ EGB34090 Type EGB Circuit Breaker, 480Y/277 VAC, 90 A, 65 kA at 240 VAC/35 kA at 480Y/277 VAC Interrupt
SKU443508
MFGR #EGB34090
$/ea
Square D EGB34090 MINIATURE CIRCUIT BREAKER 480Y/277V 90A,35kA,90A,Bolt-On,E frame,E-Frame,Hold 1000A - Trip 2300A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EGB34090 MINIATURE CIRCUIT BREAKER 480Y/277V 90A,35kA,90A,Bolt-On,E frame,E-Frame,Hold 1000A - Trip 2300A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EGB34090 Application HACR rated; NF panelboard ARRA Compliant N Buy American Compliant N Catalog Number EGB34090 Connection LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) Connection Type Lug Country of Origin MX Currency USD Depth 4.05 in Dimensions 5.8 in H x 2.94 in W x 4.05 in D EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 276.21 Gross Volume per Pack Metric 4526.25 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0167 lb Gross Weight per Pack Metric 1.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 11.4300 in Height [Metric] 11.4000 cm Item Group 00936 Length 25.1460 in Length [Metric] 25.1000 cm Material Thermoset Composite Resin Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253885&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand E FRAME Substitute Product Catalog Number NF418L1 Temperature Rating 104 °F Trip Range 1000 to 2300 A Type Type EGB UNSPSC 39121603 UPC 11 78590113047 UPC 12 785901130475 Warranty Description Contractual Warranty:18 months Width 15.7480 in Width [Metric] 16.0000 cm Wire Size 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 90 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480Y/277 VAC Trip Type Thermal Magnetic Voltage Rating 277/480Y VAC HACR rated; NF panelboard BOLT-ON 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EGB34090 |
| Application | HACR rated; NF panelboard |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EGB34090 |
| Connection | LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) |
| Connection Type | Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 5.8 in H x 2.94 in W x 4.05 in D |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 276.21 |
| Gross Volume per Pack Metric | 4526.25 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0167 lb |
| Gross Weight per Pack Metric | 1.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 11.4300 in |
| Height [Metric] | 11.4000 cm |
| Item Group | 00936 |
| Length | 25.1460 in |
| Length [Metric] | 25.1000 cm |
| Material | Thermoset Composite Resin |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253885&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | E FRAME |
| Substitute Product Catalog Number | NF418L1 |
| Temperature Rating | 104 °F |
| Trip Range | 1000 to 2300 A |
| Type | Type EGB |
| UNSPSC | 39121603 |
| UPC 11 | 78590113047 |
| UPC 12 | 785901130475 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.7480 in |
| Width [Metric] | 16.0000 cm |
| Wire Size | 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 90 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480Y/277 VAC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277/480Y VAC |
| HACR rated; NF panelboard |
| BOLT-ON |
| 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating |
