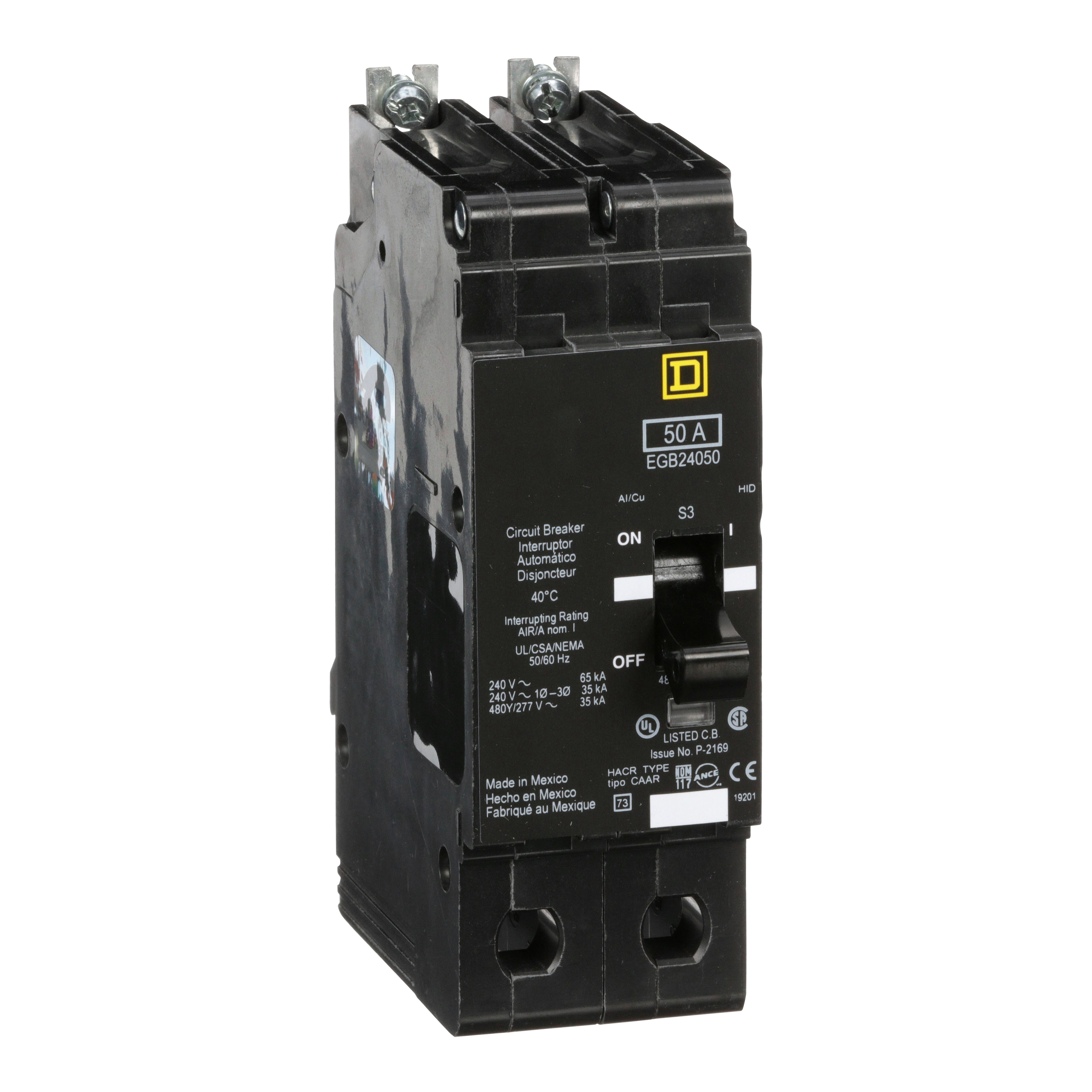

Square D™ EGB24050 Miniature Circuit Breaker, 277/480 VAC, 50 A, 35 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Miniature Circuit Breakers
159991
MFG #: EGB24050
Square D™
768.88000
/ ea
Square D EGB24050 MINIATURE CIRCUIT BREAKER 480Y/277V 50A,35kA,50A,Bolt-On,E frame,E-Frame,Hold 630A - Trip 1800A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8140289360Den&ext=webp(360 Degree View URL)
- Compliance Cert URL - Schneider_Electric_EGB24050_Compliance_Certificate.pdf(Compliance Cert URL)
- Catalog URL - Schneider_Electric_EDB14015_Catalog.pdf(Catalog URL)
- Brochure URL - 11003_HEG1U8LF92ZOSQD5.pdf(Brochure URL)
- Brochure URL - 11003_FC8OLTS5M7ZUQ90G.pdf(Brochure URL)
- Spec Sheet URL - 11003_MILZBS9U7HYVNTR4.pdf(Spec Sheet URL)
- Service Manual URL - 11003_6YTNP01EFUSQGWA7.pdf(Service Manual URL)
- Tech Drawing URL - 11003_5QI6ULGY40M7OKHS.pdf(Tech Drawing URL)
- Tech Bulletin URL - 11003_HUL65GPVRKXTJW9Z.pdf(Tech Bulletin URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - 11003_JLRP5K8QU2X1SGHC.pdf(Tech Drawing URL)
- Install Instructions 1 URL - 11003_W405MTQD91NUXV7Z.pdf(Install Instructions 1 URL)
- Tech Bulletin URL - 11003_IBUNZRTP0GWX4CQM.pdf(Tech Bulletin URL)
- Applications
- Features
| HID rated;HACR rated; NF panelboard |
| BOLT-ON |
| Visi-Trip™ feature |
| For merchandised NF panelboards |
| Optional factory-installed electrical accessories include, 120 VAC shunt trip, 1A/1B auxiliary switch and normally open alarm switch |
| Optional handle padlock attachment |
| Optional copper and compression lugs |
| Optional factory-installed electrical accessories include; 120 Vac shunt trip, 1A/1B auxiliary switch and normally open alarm switch |
| Optional handle padlock attachment |
| Optional copper and compression lugs |
