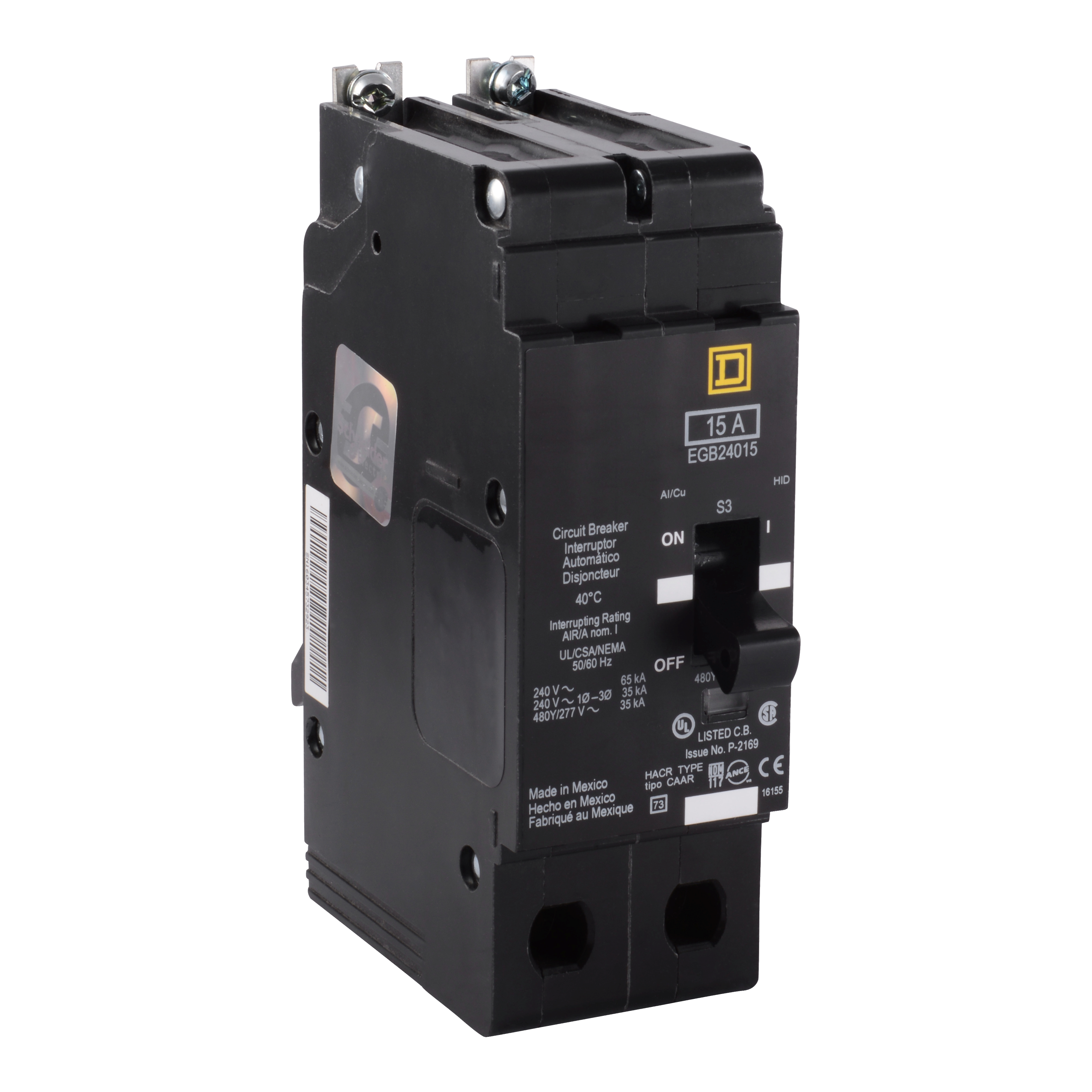

Square D™ EGB24015 Type EGB Circuit Breaker, 480Y/277 VAC, 15 A, 65 kA at 240 VAC/35 kA at 480Y/277 VAC Interrupt
Custom_Product_Images_Illustration
Square D™ EGB24015 Type EGB Circuit Breaker, 480Y/277 VAC, 15 A, 65 kA at 240 VAC/35 kA at 480Y/277 VAC Interrupt
SKU97755
MFGR #EGB24015
$/ea
Square D EGB24015 MINIATURE CIRCUIT BREAKER 480Y/277V 15A,15A,35kA,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EGB24015 MINIATURE CIRCUIT BREAKER 480Y/277V 15A,15A,35kA,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EGB24015 Application HID rated;HACR rated; NF panelboard ARRA Compliant N Buy American Compliant N Catalog Number EGB24015 Connection LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU) Connection Type Lug Country of Origin MX Currency USD Depth 4.05 in Dimensions 5.66 in H x 1.96 in W x 4.05 in D EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 211.36 Gross Volume per Pack Metric 3463.64 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0118 lb Gross Weight per Pack Metric 1.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 8.8900 in Height [Metric] 8.6000 cm Item Group 00936 Length 25.1460 in Length [Metric] 24.9000 cm Material Thermoset Composite Resin Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423254186&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand E FRAME Substitute Product Catalog Number NF418L1 Temperature Rating 104 °F Trip Range 270 to 875 A Type Type EGB UNSPSC 39121603 UPC 11 78590133519 UPC 12 785901335191 Warranty Description Contractual Warranty:18 months Width 15.4940 in Width [Metric] 15.5000 cm Wire Size 12 to 6 AWG Al, 14 to 6 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480Y/277 VAC Trip Type Thermal Magnetic Voltage Rating 277/480Y VAC HID rated;HACR rated; NF panelboard BOLT-ON 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EGB24015 |
| Application | HID rated;HACR rated; NF panelboard |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EGB24015 |
| Connection | LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU) |
| Connection Type | Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 5.66 in H x 1.96 in W x 4.05 in D |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 211.36 |
| Gross Volume per Pack Metric | 3463.64 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0118 lb |
| Gross Weight per Pack Metric | 1.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 8.8900 in |
| Height [Metric] | 8.6000 cm |
| Item Group | 00936 |
| Length | 25.1460 in |
| Length [Metric] | 24.9000 cm |
| Material | Thermoset Composite Resin |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423254186&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | E FRAME |
| Substitute Product Catalog Number | NF418L1 |
| Temperature Rating | 104 °F |
| Trip Range | 270 to 875 A |
| Type | Type EGB |
| UNSPSC | 39121603 |
| UPC 11 | 78590133519 |
| UPC 12 | 785901335191 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.4940 in |
| Width [Metric] | 15.5000 cm |
| Wire Size | 12 to 6 AWG Al, 14 to 6 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480Y/277 VAC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277/480Y VAC |
| HID rated;HACR rated; NF panelboard |
| BOLT-ON |
| 65 kA at 240 VAC, 35 kA at 480Y/277 VAC interrupt rating |
