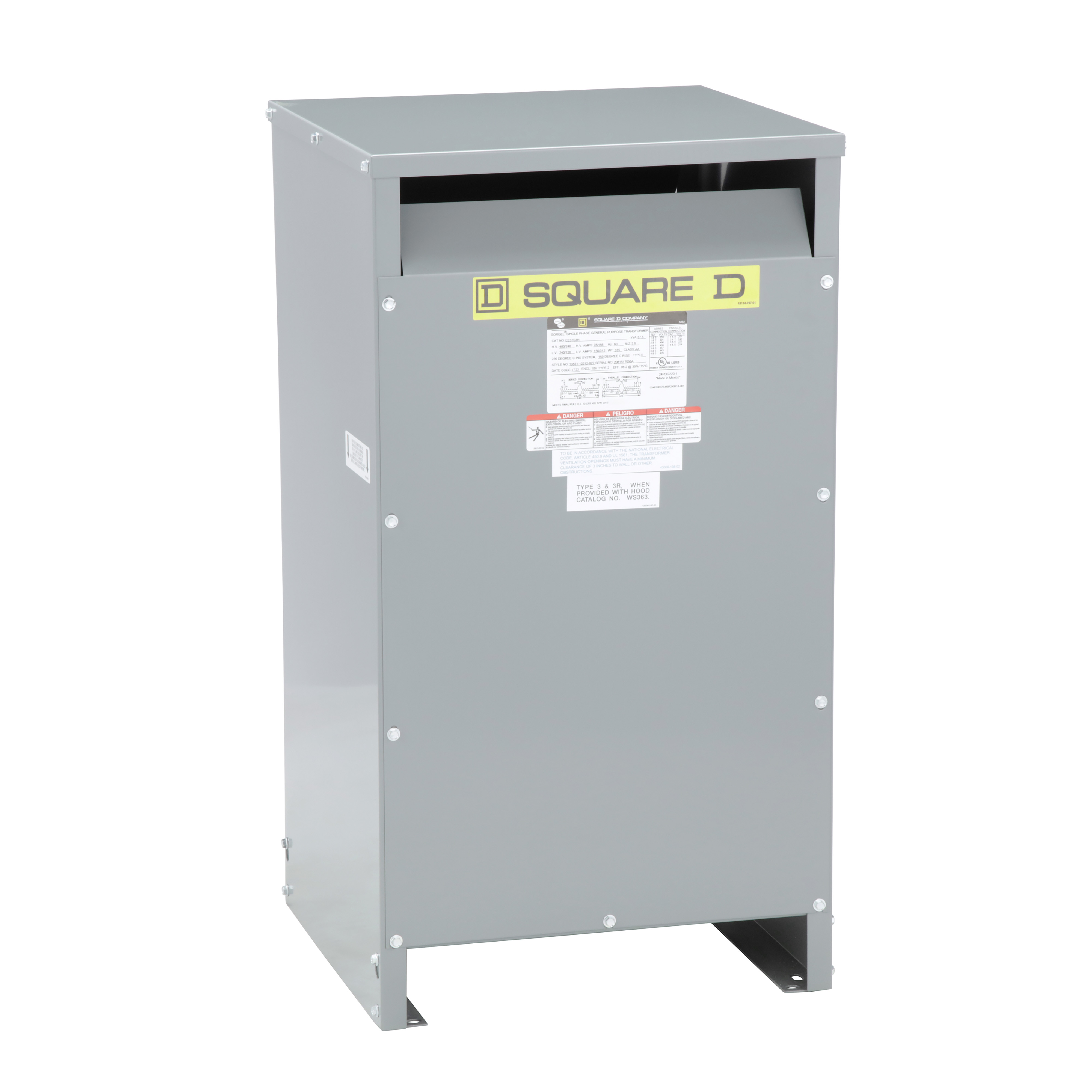

Square D™ EE37S3H Dry Energy Efficient Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 37.5 kVA, 60 Hz, 1 Phase
Custom_Product_Images_Illustration
Square D™ EE37S3H Dry Energy Efficient Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 37.5 kVA, 60 Hz, 1 Phase
SKU312178
MFGR #EE37S3H
Call For Price
List: Square D EE37S3H XFMR DRY 1PH 37.5KVA 240X480V-120/240V,1 phase,120/240VAC,150 Degrees C,220 deg.C,240 x 480VAC,37.5 kVA,Energy Efficient Transformer,Floor - Ceiling or Wall with mounting brackets Wall WMB363364 - Ceiling CMB363,NEMA 2,aluminium
Square D EE37S3H XFMR DRY 1PH 37.5KVA 240X480V-120/240V,1 phase,120/240VAC,150 Degrees C,220 deg.C,240 x 480VAC,37.5 kVA,Energy Efficient Transformer,Floor - Ceiling or Wall with mounting brackets Wall WMB363364 - Ceiling CMB363,NEMA 2,aluminium
Alternate Catalog Number EE37S3H ARRA Compliant N Buy American Compliant N Catalog Number EE37S3H Country of Origin MX Currency USD Dimensions 37 in H x 20 in W x 20 in D Efficiency 98.00 Enclosure 18H Enclosure Type NEMA 2 EU RoHS Indicator Y Gross Volume Per Pack 20154.96 Gross Volume per Pack Metric 330279.33 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.7058 lb Gross Weight per Pack Metric 170.58 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330020 Height 109.7000 in Height [Metric] 109.7000 cm Housing Material Aluminum Insulation 220 Insulation Class 150 Item Group 16284 KVA Rating 37.5 Length 54.6000 in Length [Metric] 54.6000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456693&lang=en-us Mounting FLOOR - CEILING OR WALL WITH MOUNTING BRACKETS WALL: WMB363364 - CEILING: CMB363 Mounting Type Floor/Ceiling/Bracket Number Of Taps 6 Returnable Y Series XFMR Substitute Product Catalog Number CMB363 Temperature Rating 150 °C Type Dry Energy Efficient UNSPSC 39121001 UPC 11 78590155901 UPC 12 785901559016 Warranty Description Contractual Warranty:18 months Width 55.1000 in Width [Metric] 55.1000 cm Winding aluminium Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Phase 1 Power Rating 37.5 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC ENERGY EFFICIENT TRANSFORMER,ALUMINIUM Smaller total area used, with 3 in (76 mm) clearance from ventilated openings instead of 6 in (152 mm), reducing the distance from the wall to the front of the device by 3 in (76 mm) Terminals are sized to handle lug kits that are coordinated with other Square D™ products, increasing the ease of installation when used with other Square D™ equipment Increased wiring compartments provide a bending radius for 250% primary cables and multiple feeds on the secondary All units have 200% neutral to allow customers to feed standard and non-linear panels 220 deg C UL listed insulation system Decreased weight for easier handling of units Aluminum winding Painted steel Floor - ceiling or wall with mounting brackets WMB363364 wall - CMB363 ceiling
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | EE37S3H |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EE37S3H |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 37 in H x 20 in W x 20 in D |
| Efficiency | 98.00 |
| Enclosure | 18H |
| Enclosure Type | NEMA 2 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 20154.96 |
| Gross Volume per Pack Metric | 330279.33 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.7058 lb |
| Gross Weight per Pack Metric | 170.58 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330020 |
| Height | 109.7000 in |
| Height [Metric] | 109.7000 cm |
| Housing Material | Aluminum |
| Insulation | 220 |
| Insulation Class | 150 |
| Item Group | 16284 |
| KVA Rating | 37.5 |
| Length | 54.6000 in |
| Length [Metric] | 54.6000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456693&lang=en-us |
| Mounting | FLOOR - CEILING OR WALL WITH MOUNTING BRACKETS WALL: WMB363364 - CEILING: CMB363 |
| Mounting Type | Floor/Ceiling/Bracket |
| Number Of Taps | 6 |
| Returnable | Y |
| Series | XFMR |
| Substitute Product Catalog Number | CMB363 |
| Temperature Rating | 150 °C |
| Type | Dry Energy Efficient |
| UNSPSC | 39121001 |
| UPC 11 | 78590155901 |
| UPC 12 | 785901559016 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 55.1000 in |
| Width [Metric] | 55.1000 cm |
| Winding | aluminium |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 37.5 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| ENERGY EFFICIENT TRANSFORMER,ALUMINIUM |
| Smaller total area used, with 3 in (76 mm) clearance from ventilated openings instead of 6 in (152 mm), reducing the distance from the wall to the front of the device by 3 in (76 mm) |
| Terminals are sized to handle lug kits that are coordinated with other Square D™ products, increasing the ease of installation when used with other Square D™ equipment |
| Increased wiring compartments provide a bending radius for 250% primary cables and multiple feeds on the secondary |
| All units have 200% neutral to allow customers to feed standard and non-linear panels |
| 220 deg C UL listed insulation system |
| Decreased weight for easier handling of units |
| Aluminum winding |
| Painted steel |
| Floor - ceiling or wall with mounting brackets WMB363364 wall - CMB363 ceiling |
