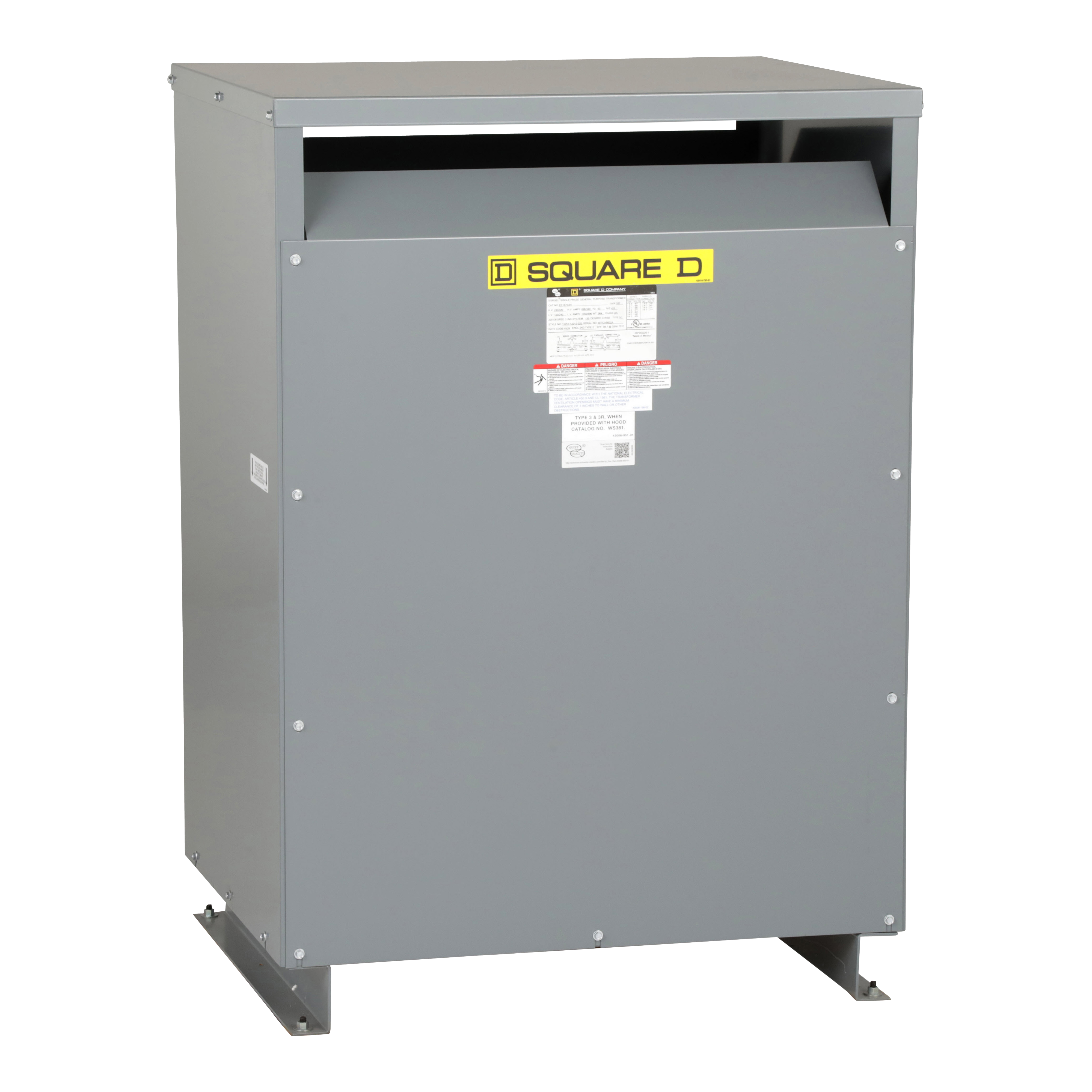

Square D™ EE167S3H Energy Efficient Low Voltage Transformer, 240/480 V Primary, 120/240 V Secondary, 167 kVA, 1 ph Phase
Custom_Product_Images_Illustration
Square D™ EE167S3H Energy Efficient Low Voltage Transformer, 240/480 V Primary, 120/240 V Secondary, 167 kVA, 1 ph Phase
SKU1354088
MFGR #EE167S3H
Your Cost: $33,827.24/ea
Square D™ Low Voltage Transformer, Energy Efficient, 240/480 V Primary, 120/240 V Secondary, 167 kVA, 1 ph, 6 Taps, Floor/Ceiling with Mounting Brackets Mount, 428 deg F, NEMA 2 Enclosure, 150 deg C
Square D™ Low Voltage Transformer, Energy Efficient, 240/480 V Primary, 120/240 V Secondary, 167 kVA, 1 ph, 6 Taps, Floor/Ceiling with Mounting Brackets Mount, 428 deg F, NEMA 2 Enclosure, 150 deg C
Alternate Catalog Number EE167S3H ARRA Compliant N Buy American Compliant N Catalog Number EE167S3H Country of Origin US Currency USD Enclosure 24D EU RoHS Indicator Y Gross Volume Per Pack 56290.13 Gross Volume per Pack Metric 922426.36 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1261.5600 lb Gross Weight per Pack Metric 573.44 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 135.4000 in Height [Metric] 135.4000 cm Item Group 16284 KVA Rating 167 Length 90.9000 in Length [Metric] 90.9000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456577&lang=en-us Mounting FLOOR - CEILING WITH MOUNTING BRACKETS CEILING: CMB381 Returnable Y Temperature Rating 150 Degrees C Type ENERGY EFFICIENT TRANSFORMER UNSPSC 39121001 UPC 11 78590186454 UPC 12 785901864547 Warranty Description Contractual Warranty:18 months Width 74.9000 in Width [Metric] 74.9000 cm Winding Aluminium Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Primary Voltage 240 X 480 V Secondary Voltage 120/240 V ENERGY EFFICIENT TRANSFORMER,ALUMINIUM Smaller total area used, with 3 in clearance from ventilated openings instead of 6 in, reducing the distance from the wall to the front of the device by 3 in Terminals are sized to handle lug kits that are coordinated with other square D™ products, increasing the ease of installation when used with other square D™ equipment Increased wiring compartments provide a bending radius for 250 % primary cables and multiple feeds on the secondary All units have 200% neutral to allow customers to feed standard and non-linear panels Decreased weight for easier handling of units Aluminum winding Resin-filled transformers
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | EE167S3H |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EE167S3H |
| Country of Origin | US |
| Currency | USD |
| Enclosure | 24D |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 56290.13 |
| Gross Volume per Pack Metric | 922426.36 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1261.5600 lb |
| Gross Weight per Pack Metric | 573.44 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 135.4000 in |
| Height [Metric] | 135.4000 cm |
| Item Group | 16284 |
| KVA Rating | 167 |
| Length | 90.9000 in |
| Length [Metric] | 90.9000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456577&lang=en-us |
| Mounting | FLOOR - CEILING WITH MOUNTING BRACKETS CEILING: CMB381 |
| Returnable | Y |
| Temperature Rating | 150 Degrees C |
| Type | ENERGY EFFICIENT TRANSFORMER |
| UNSPSC | 39121001 |
| UPC 11 | 78590186454 |
| UPC 12 | 785901864547 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 74.9000 in |
| Width [Metric] | 74.9000 cm |
| Winding | Aluminium |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Primary Voltage | 240 X 480 V |
| Secondary Voltage | 120/240 V |
| ENERGY EFFICIENT TRANSFORMER,ALUMINIUM |
| Smaller total area used, with 3 in clearance from ventilated openings instead of 6 in, reducing the distance from the wall to the front of the device by 3 in |
| Terminals are sized to handle lug kits that are coordinated with other square D™ products, increasing the ease of installation when used with other square D™ equipment |
| Increased wiring compartments provide a bending radius for 250 % primary cables and multiple feeds on the secondary |
| All units have 200% neutral to allow customers to feed standard and non-linear panels |
| Decreased weight for easier handling of units |
| Aluminum winding |
| Resin-filled transformers |
