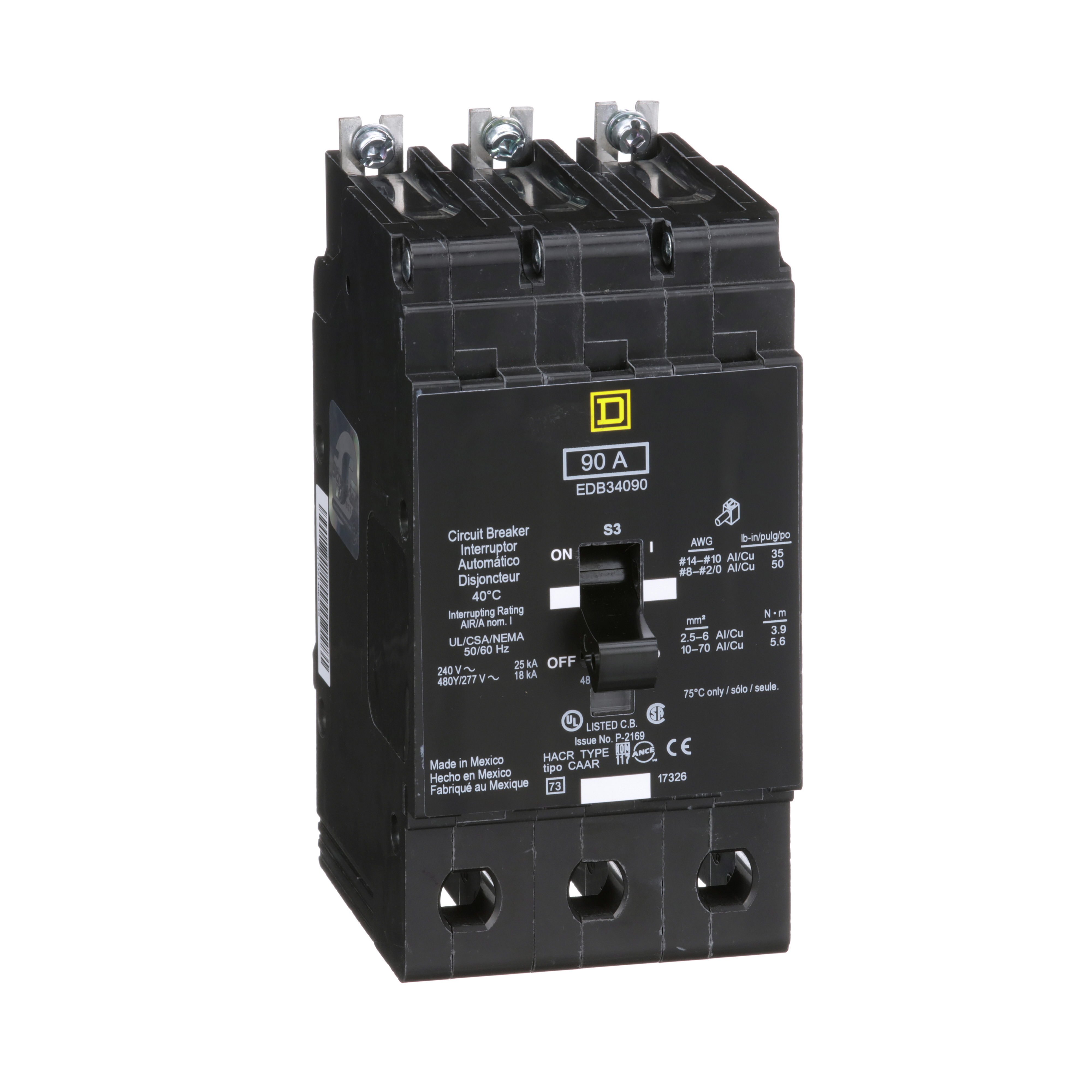

Square D™ EDB34090 Miniature Circuit Breaker, 277/480 VAC, 90 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ EDB34090 Miniature Circuit Breaker, 277/480 VAC, 90 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU34937
MFGR #EDB34090
Call For Price
List: Square D EDB34090 MINIATURE CIRCUIT BREAKER 480Y/277V 90A,18kA,90A,Bolt-On,E frame,E-Frame,Hold 1000A - Trip 2300A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EDB34090 MINIATURE CIRCUIT BREAKER 480Y/277V 90A,18kA,90A,Bolt-On,E frame,E-Frame,Hold 1000A - Trip 2300A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EDB34090 Amperage Rating 90 A Application HACR rated; NF panelboard ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number EDB34090 Connection LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) Connection Type Lug Country of Origin US Currency USD Depth 4.05 in Dimensions 4.05 in L x 0.98 in W x 5.66 in H EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 294.62 Gross Volume per Pack Metric 4828.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0159 lb Gross Weight per Pack Metric 1.62 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 12.1920 in Height [Metric] 11.9000 cm Interrupt Rating 18 kA Item Group 00931 Length 25.1460 in Length [Metric] 24.9000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=397073&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedHACR RatedUL ListedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NORMALLY STOCKED Sub Brand E FRAME Substitute Product Catalog Number HPAFD Temperature Rating 40 °C Trip Range 1000 to 2300 A Trip Type Thermal Magnetic Type Standard UNSPSC 39121603 UPC 11 78590187537 UPC 12 785901875376 Voltage Rating 277/480Y VAC Warranty Description Contractual Warranty:18 months Width 15.7480 in Width [Metric] 15.5000 cm Wire Size 12 to 2/0 AWG, 14 to 2/0 AWG HACR rated; NF panelboard BOLT-ON Visi-Trip™ feature For merchandised NF panelboards Optional factory installed electrical accessories include, 120 VAC shunt trip, 1A/1B auxiliary switch and normally open alarm switch Optional handle padlock attachment Optional copper and compression lugs 25 kA at 240 VAC/18 kA at 480Y/277 VAC Optional handle padlock attachment Optional copper and compression lugs
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EDB34090 |
| Amperage Rating | 90 A |
| Application | HACR rated; NF panelboard |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | EDB34090 |
| Connection | LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) |
| Connection Type | Lug |
| Country of Origin | US |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 4.05 in L x 0.98 in W x 5.66 in H |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 294.62 |
| Gross Volume per Pack Metric | 4828.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0159 lb |
| Gross Weight per Pack Metric | 1.62 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 12.1920 in |
| Height [Metric] | 11.9000 cm |
| Interrupt Rating | 18 kA |
| Item Group | 00931 |
| Length | 25.1460 in |
| Length [Metric] | 24.9000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=397073&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedHACR RatedUL ListedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | E FRAME |
| Substitute Product Catalog Number | HPAFD |
| Temperature Rating | 40 °C |
| Trip Range | 1000 to 2300 A |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590187537 |
| UPC 12 | 785901875376 |
| Voltage Rating | 277/480Y VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.7480 in |
| Width [Metric] | 15.5000 cm |
| Wire Size | 12 to 2/0 AWG, 14 to 2/0 AWG |
| HACR rated; NF panelboard |
| BOLT-ON |
| Visi-Trip™ feature |
| For merchandised NF panelboards |
| Optional factory installed electrical accessories include, 120 VAC shunt trip, 1A/1B auxiliary switch and normally open alarm switch |
| Optional handle padlock attachment |
| Optional copper and compression lugs |
| 25 kA at 240 VAC/18 kA at 480Y/277 VAC |
| Optional handle padlock attachment |
| Optional copper and compression lugs |
