Square D™

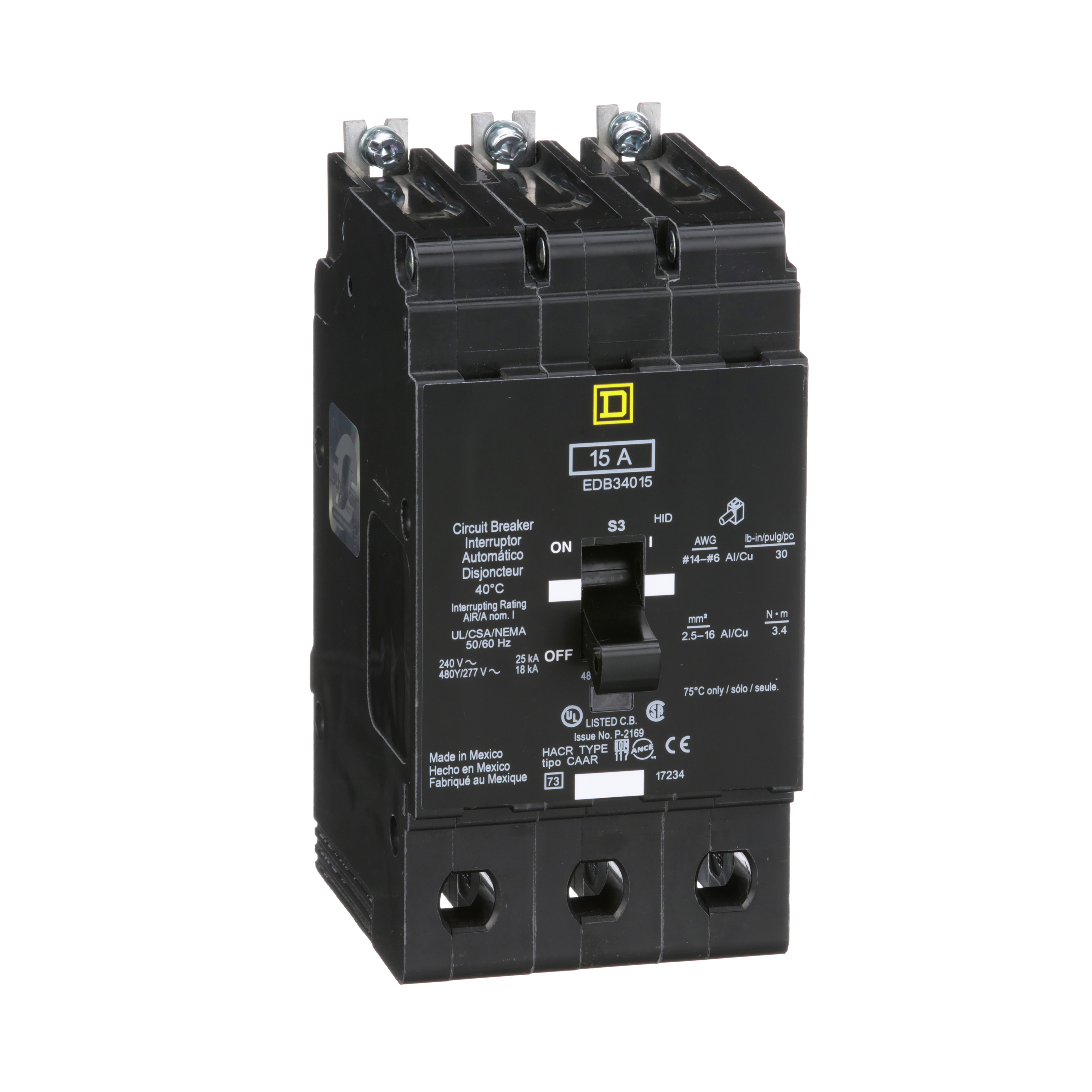

Square D™ EDB34015 Miniature Circuit Breaker, 277/480 VAC, 15 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ EDB34015 Miniature Circuit Breaker, 277/480 VAC, 15 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU34927
MFGR #EDB34015
Your Cost: $663.03/ea
List: Square D EDB34015 MINIATURE CIRCUIT BREAKER 480Y/277V 15A,15A,18kA,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EDB34015 MINIATURE CIRCUIT BREAKER 480Y/277V 15A,15A,18kA,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EDB34015 Amperage Rating 15 A Application HACR rated;HID rated; NF panelboard ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number EDB34015 Connection LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU) Connection Type Lug Country of Origin US Currency USD Depth 4.05 in Dimensions 4.05 in L x 2.94 in W x 5.66 in H EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 288.49 Gross Volume per Pack Metric 4727.42 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.5550 lb Gross Weight per Pack Metric 1.65 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 11.9380 in Height [Metric] 11.4300 cm Interrupt Rating 18 kA Item Group 00931 Length 25.1460 in Length [Metric] 24.3840 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396921&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedNOM 117PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov Stock Status NORMALLY STOCKED Sub Brand E FRAME Substitute Product Catalog Number HPAFD Temperature Rating 104 °F Trip Range 270 to 875 A Trip Type Thermal Magnetic Type Molded Case Standard UNSPSC 39121603 UPC 11 78590187523 UPC 12 785901875239 Voltage Rating 277/480Y VAC Warranty Description Contractual Warranty:18 months Width 15.7480 in Width [Metric] 15.4940 cm Wire Size 12 to 6 AWG, 14 to 6 AWG HACR rated;HID rated; NF panelboard BOLT-ON Visi-Trip® trip indicator 270 A hold, 875 A trip current For merchandised NF panelboards 12 to 6 AWG aluminum, 14 to 6 AWG copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EDB34015 |
| Amperage Rating | 15 A |
| Application | HACR rated;HID rated; NF panelboard |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | EDB34015 |
| Connection | LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU) |
| Connection Type | Lug |
| Country of Origin | US |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 4.05 in L x 2.94 in W x 5.66 in H |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 288.49 |
| Gross Volume per Pack Metric | 4727.42 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.5550 lb |
| Gross Weight per Pack Metric | 1.65 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 11.9380 in |
| Height [Metric] | 11.4300 cm |
| Interrupt Rating | 18 kA |
| Item Group | 00931 |
| Length | 25.1460 in |
| Length [Metric] | 24.3840 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396921&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedNOM 117PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | E FRAME |
| Substitute Product Catalog Number | HPAFD |
| Temperature Rating | 104 °F |
| Trip Range | 270 to 875 A |
| Trip Type | Thermal Magnetic |
| Type | Molded Case Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590187523 |
| UPC 12 | 785901875239 |
| Voltage Rating | 277/480Y VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.7480 in |
| Width [Metric] | 15.4940 cm |
| Wire Size | 12 to 6 AWG, 14 to 6 AWG |
| HACR rated;HID rated; NF panelboard |
| BOLT-ON |
| Visi-Trip® trip indicator |
| 270 A hold, 875 A trip current |
| For merchandised NF panelboards |
| 12 to 6 AWG aluminum, 14 to 6 AWG copper |
