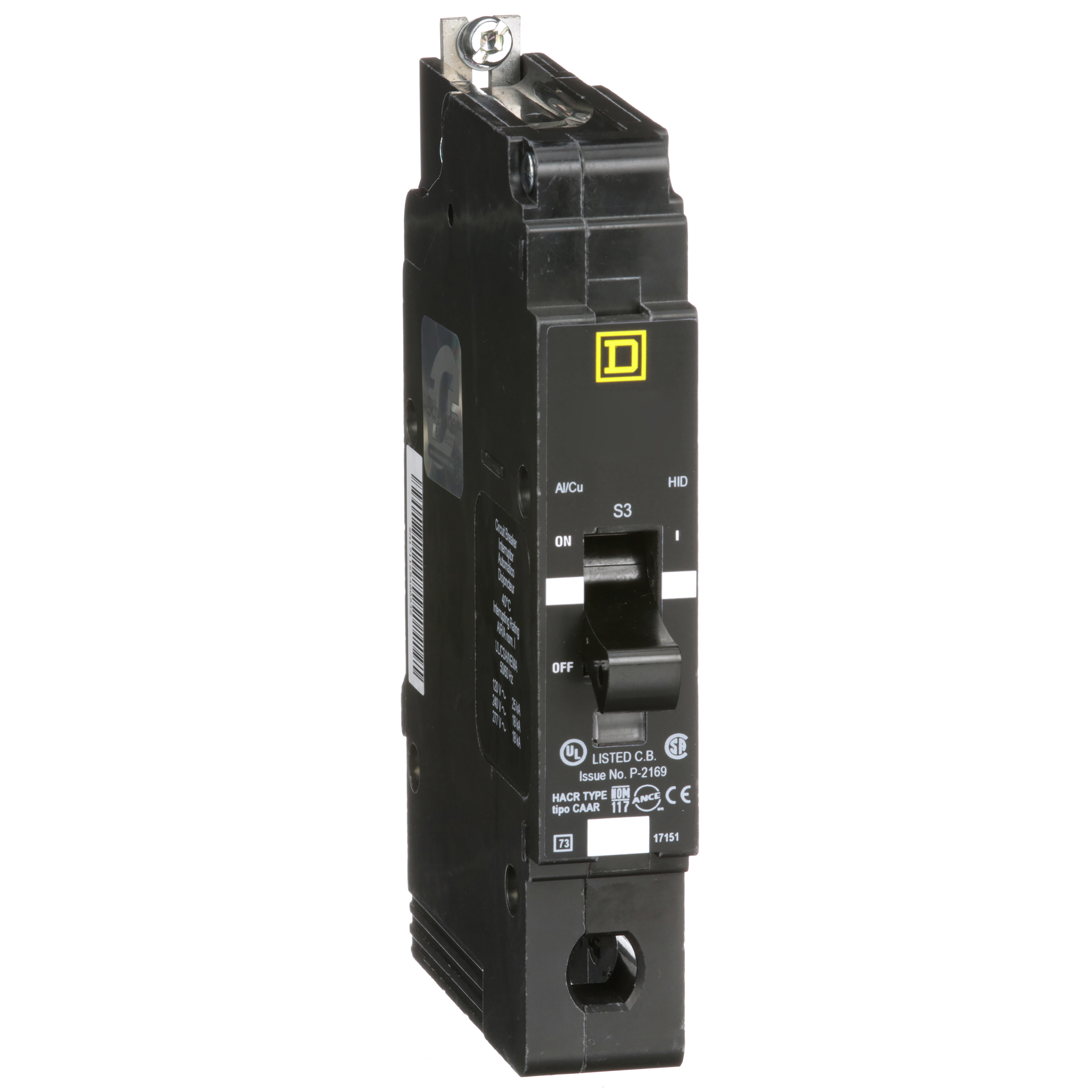

Square D™ EDB14060 Miniature Circuit Breaker, 277/480 VAC, 60 A, 18 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ EDB14060 Miniature Circuit Breaker, 277/480 VAC, 60 A, 18 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU97723
MFGR #EDB14060
Your Cost: $165.37/ea
Square D EDB14060 MINIATURE CIRCUIT BREAKER 277V 60A,1-Pole,277 V AC,277 V AC,4.05 in,60 A,Bolt-On,E-Frame,EDB,HACR rated,Hold 630A - Trip 1800A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),UL Listed - CSA Certified
Square D EDB14060 MINIATURE CIRCUIT BREAKER 277V 60A,1-Pole,277 V AC,277 V AC,4.05 in,60 A,Bolt-On,E-Frame,EDB,HACR rated,Hold 630A - Trip 1800A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),UL Listed - CSA Certified
Alternate Catalog Number EDB14060 Application HACR rated; NF panelboard ARRA Compliant N Buy American Compliant N Catalog Number EDB14060 Connection AWG 12...AWG 2/0 ALUMINIUM-AWG 14...AWG 2/0 COPPER,LUGS ALUMINIUM Connection Type Lug Country of Origin MX Currency USD Depth 4.05 in Dimensions 4.05 in L x 0.98 in W x 5.66 in H EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 114.95 Gross Volume per Pack Metric 1883.65 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.3200 lb Gross Weight per Pack Metric 598.70 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 4.6000 in Height [Metric] 4.6000 cm Item Group 00931 Length 26.4000 in Length [Metric] 26.4000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396715&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Series EDB Standard IEC-CULUS Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedHACR RatedUL ListedPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Sub Brand EDB Temperature Rating 40 °C Trip Range 630 to 1800 A Type Standard UNSPSC 39121603 UPC 11 78590132643 UPC 12 785901326434 Warranty Description Contractual Warranty:18 months Width 16.0000 in Width [Metric] 16.0000 cm Wire Size 12 to 2/0 AWG, 14 to 2/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 60 A Interrupt Rating 18 kA Trip Type Thermal Magnetic Voltage Rating 277 VAC HACR rated; NF panelboard TRIP INDICATOR Visi-Trip™ feature For merchandised NF panelboards Optional factory-installed electrical accessories include, 120 VAC shunt trip, 1A/1B auxiliary switch and normally open alarm switch Optional handle padlock attachment Optional copper and compression lugs 125 A frame, HACR rated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EDB14060 |
| Application | HACR rated; NF panelboard |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EDB14060 |
| Connection | AWG 12...AWG 2/0 ALUMINIUM-AWG 14...AWG 2/0 COPPER,LUGS ALUMINIUM |
| Connection Type | Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 4.05 in L x 0.98 in W x 5.66 in H |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 114.95 |
| Gross Volume per Pack Metric | 1883.65 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.3200 lb |
| Gross Weight per Pack Metric | 598.70 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.6000 in |
| Height [Metric] | 4.6000 cm |
| Item Group | 00931 |
| Length | 26.4000 in |
| Length [Metric] | 26.4000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396715&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Series | EDB |
| Standard | IEC-CULUS |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedHACR RatedUL ListedPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Sub Brand | EDB |
| Temperature Rating | 40 °C |
| Trip Range | 630 to 1800 A |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590132643 |
| UPC 12 | 785901326434 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 16.0000 in |
| Width [Metric] | 16.0000 cm |
| Wire Size | 12 to 2/0 AWG, 14 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 60 A |
| Interrupt Rating | 18 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277 VAC |
| HACR rated; NF panelboard |
| TRIP INDICATOR |
| Visi-Trip™ feature |
| For merchandised NF panelboards |
| Optional factory-installed electrical accessories include, 120 VAC shunt trip, 1A/1B auxiliary switch and normally open alarm switch |
| Optional handle padlock attachment |
| Optional copper and compression lugs |
| 125 A frame, HACR rated |
