Square D™

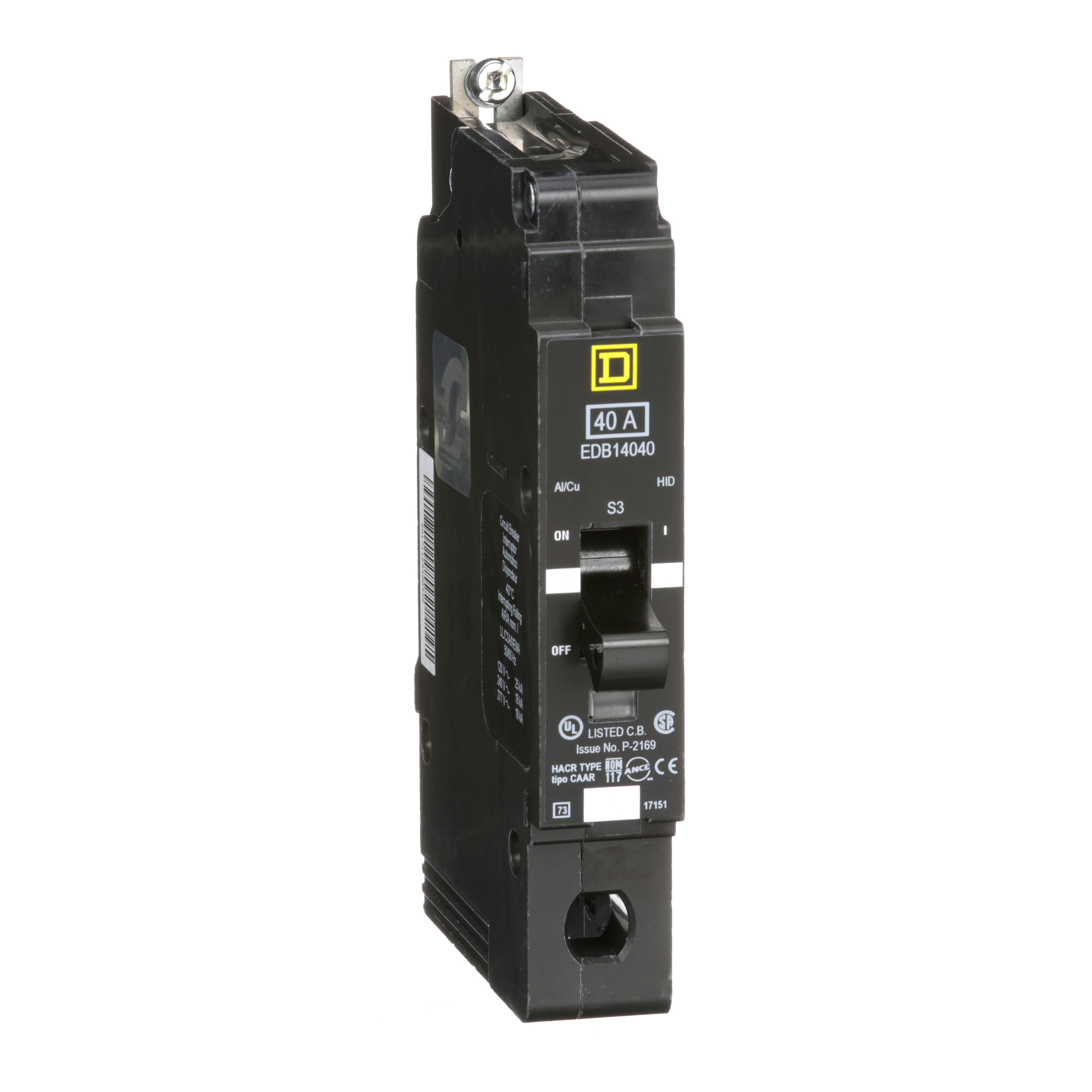

Square D™ EDB14040 Type EDB Circuit Breaker, 277 VAC, 40 A, 25 kA at 240 VAC/18 kA at 480Y/277 VAC Interrupt, 1 Pole
Custom_Product_Images_Illustration
Square D™
Square D™ EDB14040 Type EDB Circuit Breaker, 277 VAC, 40 A, 25 kA at 240 VAC/18 kA at 480Y/277 VAC Interrupt, 1 Pole
SKU34957
MFGR #EDB14040
Your Cost: $165.37/ea
Square D EDB14040 MINIATURE CIRCUIT BREAKER 277V 40A,18kA,40A,Bolt-On,E frame,E-Frame,Hold 630A - Trip 1800A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EDB14040 MINIATURE CIRCUIT BREAKER 277V 40A,18kA,40A,Bolt-On,E frame,E-Frame,Hold 630A - Trip 1800A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EDB14040 Application NF panelboard;HACR rated;HID rated ARRA Compliant N Buy American Compliant N Catalog Number EDB14040 Connection LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) Connection Type Lug Country of Origin MX Currency USD Depth 4.05 in Dimensions 5.66 in H x 0.98 in W x 4.05 in D EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 102.00 Gross Volume per Pack Metric 1671.47 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.3100 lb Gross Weight per Pack Metric 594.20 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 4.3180 in Height [Metric] 4.6000 cm Item Group 00931 Length 25.4000 in Length [Metric] 26.4000 cm Material THERMOSET COMPOSITE RESIN Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396689&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENIEC CertifiedNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand E FRAME Substitute Product Catalog Number HPAFD Temperature Rating 104 °F Trip Range 630 to 1800 A Type Type EDB UNSPSC 39121603 UPC 11 78590187895 UPC 12 785901878957 Warranty Description Contractual Warranty:18 months Width 15.2400 in Width [Metric] 15.7000 cm Wire Size 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 40 A Interrupt Rating 25 kA at 240 VAC/18 kA at 480Y/277 VAC Trip Type Thermal Magnetic Voltage Rating 277 VAC NF panelboard;HACR rated;HID rated BOLT-ON 25 kA at 240 VAC/18 kA at 480Y/277 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EDB14040 |
| Application | NF panelboard;HACR rated;HID rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EDB14040 |
| Connection | LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU) |
| Connection Type | Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 5.66 in H x 0.98 in W x 4.05 in D |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 102.00 |
| Gross Volume per Pack Metric | 1671.47 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.3100 lb |
| Gross Weight per Pack Metric | 594.20 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 4.3180 in |
| Height [Metric] | 4.6000 cm |
| Item Group | 00931 |
| Length | 25.4000 in |
| Length [Metric] | 26.4000 cm |
| Material | THERMOSET COMPOSITE RESIN |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396689&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR92886Federal Specification W-C-375B/GENIEC CertifiedNOM 117cULus ListedUL 489 File No. E84967PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | E FRAME |
| Substitute Product Catalog Number | HPAFD |
| Temperature Rating | 104 °F |
| Trip Range | 630 to 1800 A |
| Type | Type EDB |
| UNSPSC | 39121603 |
| UPC 11 | 78590187895 |
| UPC 12 | 785901878957 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.2400 in |
| Width [Metric] | 15.7000 cm |
| Wire Size | 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 40 A |
| Interrupt Rating | 25 kA at 240 VAC/18 kA at 480Y/277 VAC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277 VAC |
| NF panelboard;HACR rated;HID rated |
| BOLT-ON |
| 25 kA at 240 VAC/18 kA at 480Y/277 VAC |
