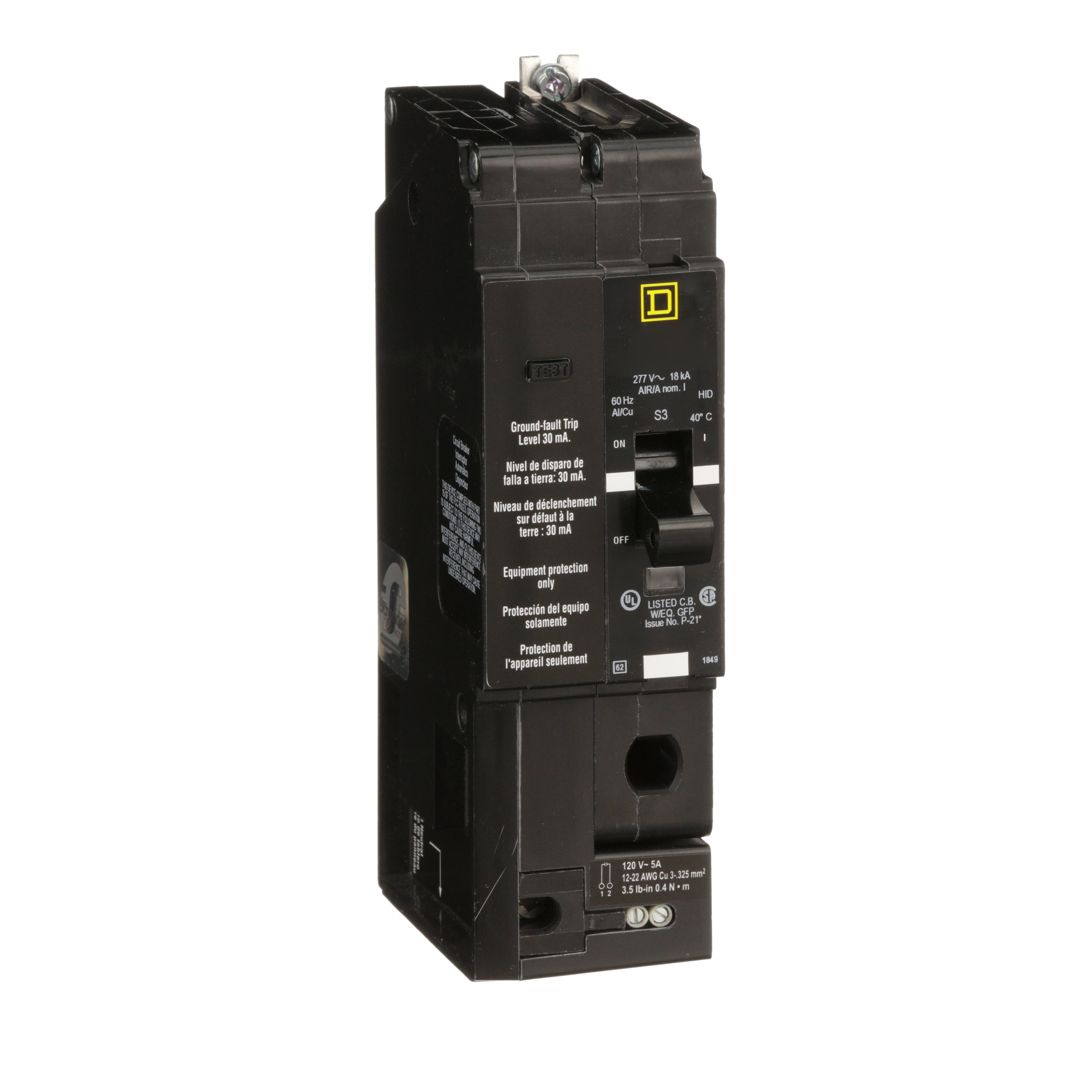

Square D™ EDB14020EPDBA Type EDB Circuit Breaker, 277 VAC, 20 A, 25 kA at 240 VAC/18 kA at 480Y/277 VAC Interrupt, 1 Poles, Thermal/Magnetic Trip
Custom_Product_Images_Illustration
Square D™ EDB14020EPDBA Type EDB Circuit Breaker, 277 VAC, 20 A, 25 kA at 240 VAC/18 kA at 480Y/277 VAC Interrupt, 1 Poles, Thermal/Magnetic Trip
SKU1191688
MFGR #EDB14020EPDBA
Your Cost: $1,530.18/ea
Square D™ Circuit Breaker, Type EDB, 277 VAC, 20 A, 50/60 Hz Frequency, 25 kA at 240 VAC/18 kA at 480Y/277 VAC Interrupt, E Frame, Thermal/Magnetic Trip, 270 to 875 A Trip, 1 Pole, Lug Connection, 12 to 6 AWG Al, 14 to 6 AWG Cu Wire, Bolted-On Mounting, 104 deg F, 5.66 in H x 0.98 in W x 4.05 in D Dimensions, Thermoset Composite Resin
Square D™ Circuit Breaker, Type EDB, 277 VAC, 20 A, 50/60 Hz Frequency, 25 kA at 240 VAC/18 kA at 480Y/277 VAC Interrupt, E Frame, Thermal/Magnetic Trip, 270 to 875 A Trip, 1 Pole, Lug Connection, 12 to 6 AWG Al, 14 to 6 AWG Cu Wire, Bolted-On Mounting, 104 deg F, 5.66 in H x 0.98 in W x 4.05 in D Dimensions, Thermoset Composite Resin
Alternate Catalog Number EDB14020EPDBA Application HACR RATED-HID RATED-SWITCHING DUTY RATED,NF PANELBOARD ARRA Compliant N Buy American Compliant N Catalog Number EDB14020EPDBA Connection AWG 14...AWG 6 COPPER-AWG 12...AWG 4 ALUMINIUM,LUGS ALUMINIUM Country of Origin US Currency USD Depth 4.05 in EU RoHS Indicator Y Frame E-FRAME Gross Weight Per Pack 2.0600 lb Gross Weight per Pack Metric 934.40 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 6.3500 in Height [Metric] 6.3500 cm Item Group 00946 Length 18.2880 in Length [Metric] 18.2880 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396641&lang=en-us Number Of Poles 1 Operating Temperature 40 A°C Returnable N Standard IEC-CULUS Sub Brand EDB Substitute Product Catalog Number HPAFD Trip Range 875-875 A Type MINIATURE CIRCUIT-BREAKER UNSPSC 39121603 UPC 11 78590144951 UPC 12 785901449515 Warranty Description Contractual Warranty:18 months Width 13.9700 in Width [Metric] 13.9700 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 20 A Interrupt Rating 18 KA 277 V AC-18 KA 240 V AC-25 KA 120 V AC-18 KA 120/240 V AC Trip Type THERMAL-MAGNETIC Voltage Rating 277 VAC HACR RATED-HID RATED-SWITCHING DUTY RATED,NF PANELBOARD TRIP INDICATOR High intensity discharge and switching duty rated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EDB14020EPDBA |
| Application | HACR RATED-HID RATED-SWITCHING DUTY RATED,NF PANELBOARD |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EDB14020EPDBA |
| Connection | AWG 14...AWG 6 COPPER-AWG 12...AWG 4 ALUMINIUM,LUGS ALUMINIUM |
| Country of Origin | US |
| Currency | USD |
| Depth | 4.05 in |
| EU RoHS Indicator | Y |
| Frame | E-FRAME |
| Gross Weight Per Pack | 2.0600 lb |
| Gross Weight per Pack Metric | 934.40 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 6.3500 in |
| Height [Metric] | 6.3500 cm |
| Item Group | 00946 |
| Length | 18.2880 in |
| Length [Metric] | 18.2880 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396641&lang=en-us |
| Number Of Poles | 1 |
| Operating Temperature | 40 A°C |
| Returnable | N |
| Standard | IEC-CULUS |
| Sub Brand | EDB |
| Substitute Product Catalog Number | HPAFD |
| Trip Range | 875-875 A |
| Type | MINIATURE CIRCUIT-BREAKER |
| UNSPSC | 39121603 |
| UPC 11 | 78590144951 |
| UPC 12 | 785901449515 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 13.9700 in |
| Width [Metric] | 13.9700 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 20 A |
| Interrupt Rating | 18 KA 277 V AC-18 KA 240 V AC-25 KA 120 V AC-18 KA 120/240 V AC |
| Trip Type | THERMAL-MAGNETIC |
| Voltage Rating | 277 VAC |
| HACR RATED-HID RATED-SWITCHING DUTY RATED,NF PANELBOARD |
| TRIP INDICATOR |
| High intensity discharge and switching duty rated |
