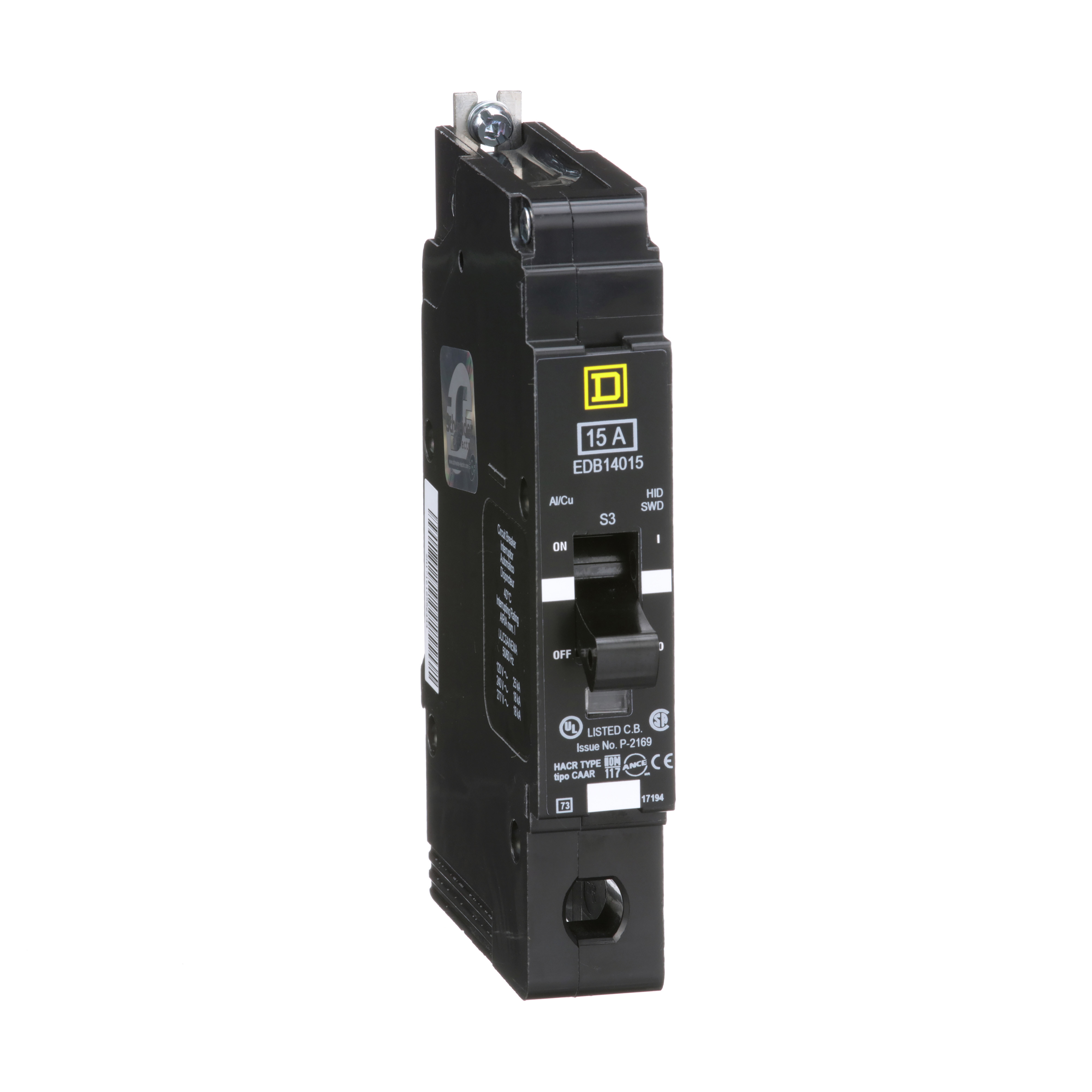

Square D™ EDB14015 Miniature Circuit Breaker, 277/480 VAC, 15 A, 18 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ EDB14015 Miniature Circuit Breaker, 277/480 VAC, 15 A, 18 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU34954
MFGR #EDB14015
Your Cost: $165.37/ea
Square D EDB14015 MINIATURE CIRCUIT BREAKER 277V 15A,15A,18kA,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EDB14015 MINIATURE CIRCUIT BREAKER 277V 15A,15A,18kA,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EDB14015 Application Switching Duty rated;HACR rated;HID rated; NF panelboard ARRA Compliant N Buy American Compliant N Catalog Number EDB14015 Connection LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU) Connection Type Lug Country of Origin MX Currency USD Depth 4.05 in Dimensions 4.05 in L x 0.98 in W x 5.66 in H EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 117.18 Gross Volume per Pack Metric 1920.23 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1369.9500 lb Gross Weight per Pack Metric 621.40 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 4.5720 in Height [Metric] 4.6000 cm Item Group 00931 Length 26.6700 in Length [Metric] 26.4000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396617&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedNOM 117PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov Sub Brand E FRAME Temperature Rating 104 °F Trip Range 270 to 875 A Type Molded Case Standard UNSPSC 39121603 UPC 11 78590187889 UPC 12 785901878896 Warranty Description Contractual Warranty:18 months Width 15.7480 in Width [Metric] 15.7000 cm Wire Size 12 to 6 AWG, 14 to 6 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 18 kA Trip Type Thermal Magnetic Voltage Rating 277 VAC Switching Duty rated;HACR rated;HID rated; NF panelboard BOLT-ON StandardsNF circuit breaker panelboards are designed, manufactured, and tested tocomply with the following standards: UL 67 - Standard for Panelboards UL 50 - Enclosures for Electrical Equipment UL Listed Class CTL panelboard CSA C22.2, No. 29- M1989 - Panelboards and Enclosed Panelboards CSA C22.2, No. 94- M91 - Special Purpose Enclosures NEMA PB 1 - Panelboards NFPA 70 - National Electrical Code® (NEC®) Federal Specification W-P-115C Type I Class 1 - CircuitBreaker Panelboards 2003 IBC, NFPA 5000, ASCE/SE17 - Seismic Qualification
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Alternate Catalog Number | EDB14015 |
Application | Switching Duty rated;HACR rated;HID rated; NF panelboard |
ARRA Compliant | N |
Buy American Compliant | N |
Catalog Number | EDB14015 |
Connection | LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU) |
Connection Type | Lug |
Country of Origin | MX |
Currency | USD |
Depth | 4.05 in |
Dimensions | 4.05 in L x 0.98 in W x 5.66 in H |
EU RoHS Indicator | Y |
Frame | E |
Frequency Rating | 50/60 Hz |
Gross Volume Per Pack | 117.18 |
Gross Volume per Pack Metric | 1920.23 |
Gross Volume UOM | CI |
Gross Volume UOM Metric | cm3 |
Gross Weight Per Pack | 1369.9500 lb |
Gross Weight per Pack Metric | 621.40 |
Gross Weight UOM Metric | g |
Harmonization Tariff Schedule Code | 8536200040 |
Height | 4.5720 in |
Height [Metric] | 4.6000 cm |
Item Group | 00931 |
Length | 26.6700 in |
Length [Metric] | 26.4000 cm |
Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396617&lang=en-us |
Mounting Type | Bolt-On |
Number Of Poles | 1 |
Operating Temperature | 40 °C |
Phase | 1 |
Returnable | Y |
Standard | UL LISTED - CSA CERTIFIED |
Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedNOM 117PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
Sub Brand | E FRAME |
Temperature Rating | 104 °F |
Trip Range | 270 to 875 A |
Type | Molded Case Standard |
UNSPSC | 39121603 |
UPC 11 | 78590187889 |
UPC 12 | 785901878896 |
Warranty Description | Contractual Warranty:18 months |
Width | 15.7480 in |
Width [Metric] | 15.7000 cm |
Wire Size | 12 to 6 AWG, 14 to 6 AWG |
Stock Status | NONSTOCK |
Brand | Square D™ |
Manufacturer | Schneider Electric |
Amperage Rating | 15 A |
Interrupt Rating | 18 kA |
Trip Type | Thermal Magnetic |
Voltage Rating | 277 VAC |
Switching Duty rated;HACR rated;HID rated; NF panelboard |
BOLT-ON |
StandardsNF circuit breaker panelboards are designed, manufactured, and tested tocomply with the following standards: |
UL 67 - Standard for Panelboards |
UL 50 - Enclosures for Electrical Equipment |
UL Listed Class CTL panelboard |
CSA C22.2, No. 29- M1989 - Panelboards and Enclosed Panelboards |
CSA C22.2, No. 94- M91 - Special Purpose Enclosures |
NEMA PB 1 - Panelboards |
NFPA 70 - National Electrical Code® (NEC®) |
Federal Specification W-P-115C Type I Class 1 - CircuitBreaker Panelboards |
2003 IBC, NFPA 5000, ASCE/SE17 - Seismic Qualification |
