Square D™

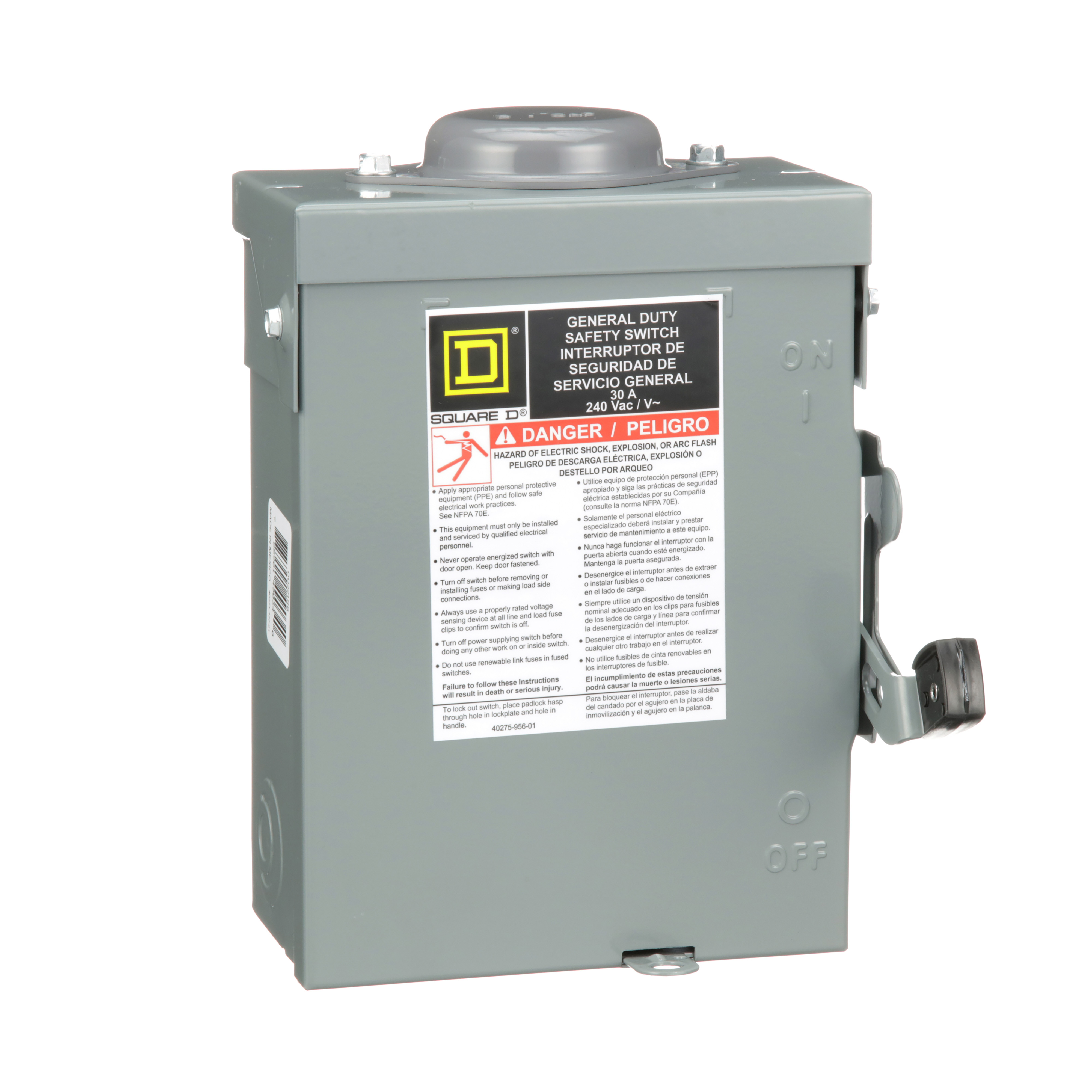

Square D™ DU221RB E2 Non-Fused Single Throw General Duty Safety Switch, 240 VAC, 3 hp, 30 A, 2 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ DU221RB E2 Non-Fused Single Throw General Duty Safety Switch, 240 VAC, 3 hp, 30 A, 2 Poles
SKU33527
MFGR #DU221RB
Your Cost: $120.25/ea
List: Square D DU221RB SWITCH NOT FUSIBLE GD 240V 30A 2P NEMA3R,240 Vac,30 A,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw Safety Switch,UL Listed File Number E2875,general duty,general duty,surface
Square D DU221RB SWITCH NOT FUSIBLE GD 240V 30A 2P NEMA3R,240 Vac,30 A,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw Safety Switch,UL Listed File Number E2875,general duty,general duty,surface
Actuator Type Handle Alternate Catalog Number DU221RB Amperage Rating 30 A Application Residential ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number DU221RB Connection AWG 14...AWG 6 COPPER-AWG 12...AWG 6 ALUMINIUM,LUGS Contact Form DPST Country of Origin MX Currency USD Depth 3.75 in Dimensions 9.63 in H x 7.25 in W x 3.75 in D Enclosure NEMA 3R Enclosure Type NEMA 3R Environmental Conditions RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) EU RoHS Indicator Y Finish Galvannealed Frequency Rating 50/60 Hz Gross Volume Per Pack 416.99 Gross Volume per Pack Metric 6833.22 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.6800 lb Gross Weight per Pack Metric 2.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 13.7160 in Height [Metric] 13.7160 cm Horsepower 3 hp Item Group 00106 Length 25.1460 in Length [Metric] 25.1460 cm Manufacturer Schneider Electric Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458139&lang=en-us Mounting Surface Mounting Type Surface NEMA Rating 3R Number Of Poles 2 Number of Wires 2 Returnable Y Series E2 Short Circuit Current Rating 100 kA Size 3.75 IN,7.75 IN,9.63 IN Standard UL listed file E2875 Standards UL File No. E2875, NEMA KS1-1990, RoHS Compliant Stock Status NORMALLY STOCKED Sub Brand GENERAL DUTY Substitute Product Catalog Number B200 Terminal Type Lug Type Non-Fused UNSPSC 39122205 UPC 11 78590149034 UPC 12 785901490340 Voltage Rating 240 VAC Warranty Description Contractual Warranty:18 months Width 19.8120 in Width [Metric] 19.8120 cm Residential GENERAL DUTY Horsepower rated for motor applications Tangential knockouts alleviate the need for offset bends Spring reinforced plated copper fuse clips Insulated, bonded solid neutral assemblies (standard in fusible switches) Visible blades Quick-make, quick-break operating mechanism Cover padlock hasp and handle lock OFF Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel Indoor/outdoor environmental conditions Rainproof and sleet/ice proof
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | DU221RB |
| Amperage Rating | 30 A |
| Application | Residential |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | DU221RB |
| Connection | AWG 14...AWG 6 COPPER-AWG 12...AWG 6 ALUMINIUM,LUGS |
| Contact Form | DPST |
| Country of Origin | MX |
| Currency | USD |
| Depth | 3.75 in |
| Dimensions | 9.63 in H x 7.25 in W x 3.75 in D |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| Environmental Conditions | RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Finish | Galvannealed |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 416.99 |
| Gross Volume per Pack Metric | 6833.22 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.6800 lb |
| Gross Weight per Pack Metric | 2.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 13.7160 in |
| Height [Metric] | 13.7160 cm |
| Horsepower | 3 hp |
| Item Group | 00106 |
| Length | 25.1460 in |
| Length [Metric] | 25.1460 cm |
| Manufacturer | Schneider Electric |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458139&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| NEMA Rating | 3R |
| Number Of Poles | 2 |
| Number of Wires | 2 |
| Returnable | Y |
| Series | E2 |
| Short Circuit Current Rating | 100 kA |
| Size | 3.75 IN,7.75 IN,9.63 IN |
| Standard | UL listed file E2875 |
| Standards | UL File No. E2875, NEMA KS1-1990, RoHS Compliant |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | GENERAL DUTY |
| Substitute Product Catalog Number | B200 |
| Terminal Type | Lug |
| Type | Non-Fused |
| UNSPSC | 39122205 |
| UPC 11 | 78590149034 |
| UPC 12 | 785901490340 |
| Voltage Rating | 240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.8120 in |
| Width [Metric] | 19.8120 cm |
| Residential |
| GENERAL DUTY |
| Horsepower rated for motor applications |
| Tangential knockouts alleviate the need for offset bends |
| Spring reinforced plated copper fuse clips |
| Insulated, bonded solid neutral assemblies (standard in fusible switches) |
| Visible blades |
| Quick-make, quick-break operating mechanism |
| Cover padlock hasp and handle lock OFF |
| Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel |
| Indoor/outdoor environmental conditions |
| Rainproof and sleet/ice proof |
