Square D™

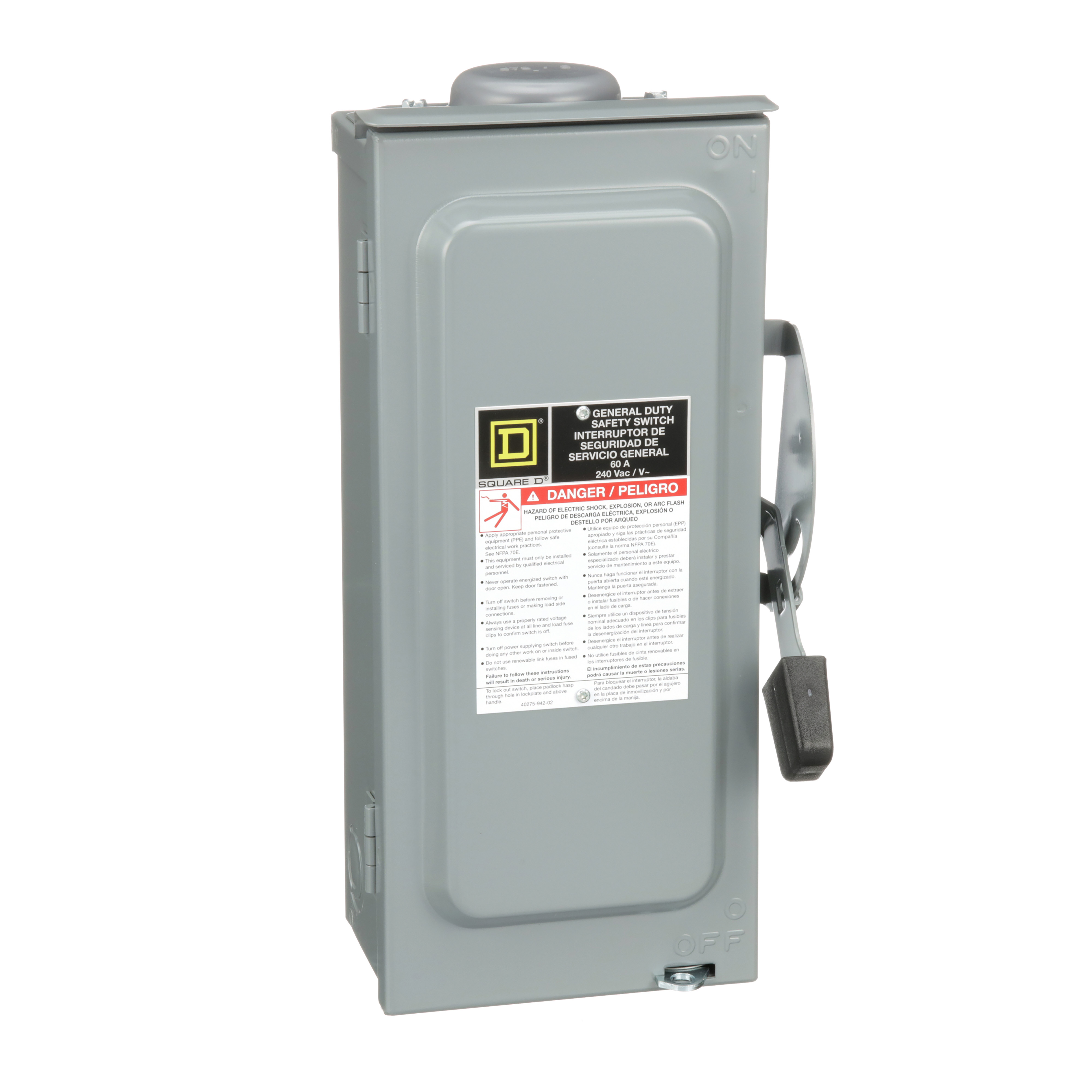

Square D™ D222NRB F1 Fused Single Throw General Duty Safety Switch, 240 VAC, 10 hp, 60 A, 2 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ D222NRB F1 Fused Single Throw General Duty Safety Switch, 240 VAC, 10 hp, 60 A, 2 Poles
SKU33382
MFGR #D222NRB
Your Cost: $221.47/ea
List: Square D D222NRB SWITCH FUSIBLE GD 240V 60A 2P NEMA3R,240 Vac,60 A,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed File E2875,general duty,general duty,surface
Square D D222NRB SWITCH FUSIBLE GD 240V 60A 2P NEMA3R,240 Vac,60 A,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed File E2875,general duty,general duty,surface
Action SINGLE THROW Actuator Type Handle Alternate Catalog Number D222NRB Amperage Rating 60 A Application Residential ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number D222NRB Connection AWG 12...AWG 3 ALUMINIUM-AWG 14...AWG 3 COPPER,LUGS Contact Form TPST Country of Origin US Currency USD Depth 4.87 in Dimensions 14.88 in H x 6.63 in W x 4.87 in D Enclosure NEMA 3R Enclosure Type NEMA 3R Environmental Conditions RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) EU RoHS Indicator Y Finish Galvannealed Frequency Rating 50/60 Hz Gross Volume Per Pack 690.86 Gross Volume per Pack Metric 11321.04 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 8.3600 lb Gross Weight per Pack Metric 3.79 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 13.0300 in Height [Metric] 13.0300 cm Horsepower 10 hp Item Group 00106 Length 40.9700 in Length [Metric] 40.9700 cm Manufacturer Schneider Electric Material Steel Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458065&lang=en-us Mounting Surface Mounting Type Surface NEMA Rating 3R Number Of Poles 2 Number of Wires 3 Phase 1/3 Returnable Y Series F1 Short Circuit Current Rating 100 kA Size 14.88 IN,4.87 IN,7.45 IN in Standard UL listed file E2875 Stock Status NORMALLY STOCKED Sub Brand GENERAL DUTY Substitute Product Catalog Number DRK30 Terminal Type Lug Type Fusible UNSPSC 39122205 UPC 11 78590146064 UPC 12 785901460640 Voltage Rating 240 VAC Warranty Description Contractual Warranty:18 months Width 19.3800 in Width [Metric] 19.3800 cm Residential GENERAL DUTY Horsepower rated for motor applications Tangential knockout alleviate the need for offset bends Spring reinforced plated copper fuse clips Insulated, bonded solid neutral assemblies (standard in fusible switches) Visible blades Quick-make and quick-break operating mechanism Cover padlock hasp and handle lock OFF Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel Rainproof and sleet/ice proof With bolt-on hub provision
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SINGLE THROW |
| Actuator Type | Handle |
| Alternate Catalog Number | D222NRB |
| Amperage Rating | 60 A |
| Application | Residential |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | D222NRB |
| Connection | AWG 12...AWG 3 ALUMINIUM-AWG 14...AWG 3 COPPER,LUGS |
| Contact Form | TPST |
| Country of Origin | US |
| Currency | USD |
| Depth | 4.87 in |
| Dimensions | 14.88 in H x 6.63 in W x 4.87 in D |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| Environmental Conditions | RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Finish | Galvannealed |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 690.86 |
| Gross Volume per Pack Metric | 11321.04 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 8.3600 lb |
| Gross Weight per Pack Metric | 3.79 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 13.0300 in |
| Height [Metric] | 13.0300 cm |
| Horsepower | 10 hp |
| Item Group | 00106 |
| Length | 40.9700 in |
| Length [Metric] | 40.9700 cm |
| Manufacturer | Schneider Electric |
| Material | Steel |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458065&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| NEMA Rating | 3R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Phase | 1/3 |
| Returnable | Y |
| Series | F1 |
| Short Circuit Current Rating | 100 kA |
| Size | 14.88 IN,4.87 IN,7.45 IN in |
| Standard | UL listed file E2875 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | GENERAL DUTY |
| Substitute Product Catalog Number | DRK30 |
| Terminal Type | Lug |
| Type | Fusible |
| UNSPSC | 39122205 |
| UPC 11 | 78590146064 |
| UPC 12 | 785901460640 |
| Voltage Rating | 240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.3800 in |
| Width [Metric] | 19.3800 cm |
| Residential |
| GENERAL DUTY |
| Horsepower rated for motor applications |
| Tangential knockout alleviate the need for offset bends |
| Spring reinforced plated copper fuse clips |
| Insulated, bonded solid neutral assemblies (standard in fusible switches) |
| Visible blades |
| Quick-make and quick-break operating mechanism |
| Cover padlock hasp and handle lock OFF |
| Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel |
| Rainproof and sleet/ice proof |
| With bolt-on hub provision |
