Square D™

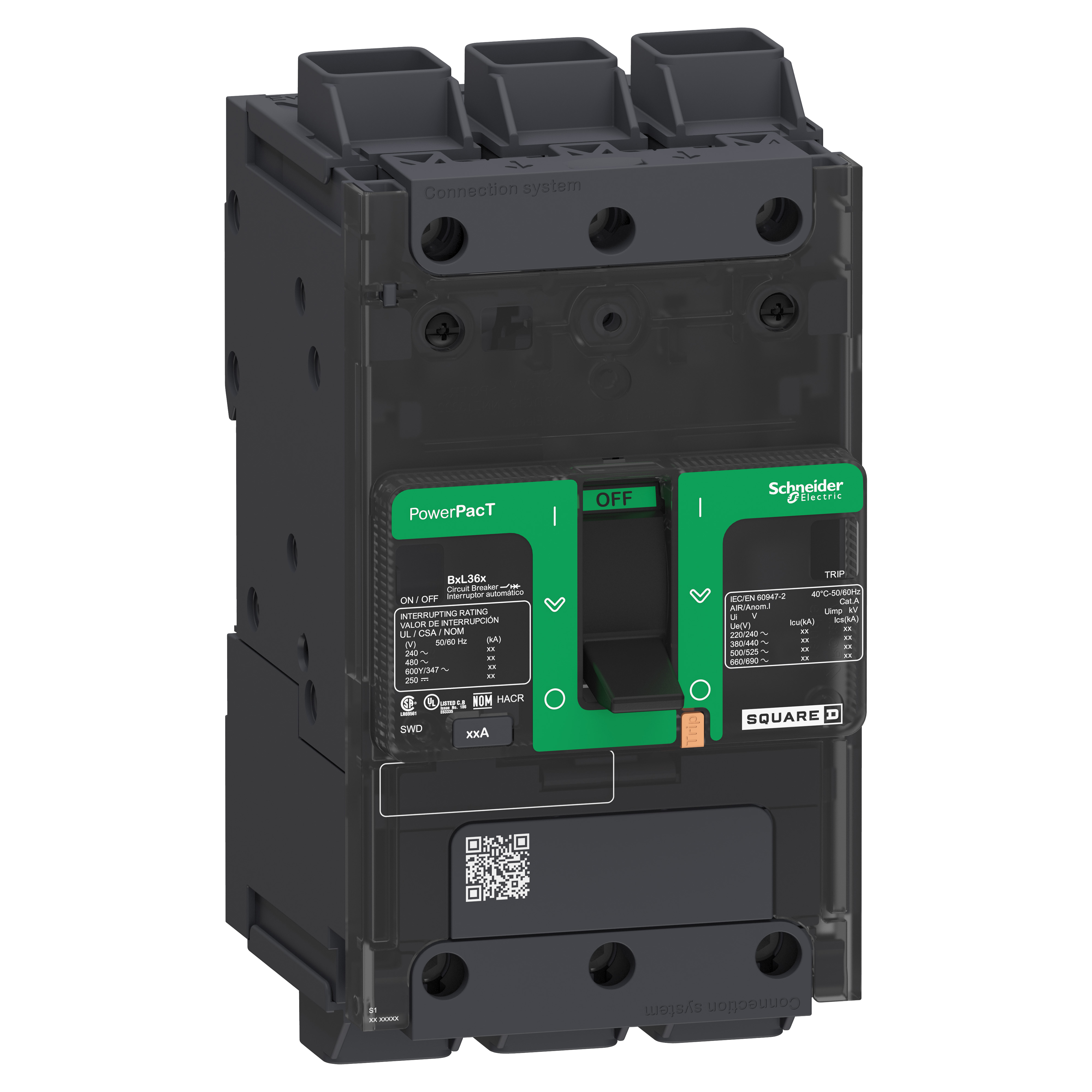

Square D™ BDL36030LU MOLDED CASE CIRCUIT BRKR 600Y/347V 30A
Custom_Product_Images_Illustration
Square D™
Square D™ BDL36030LU MOLDED CASE CIRCUIT BRKR 600Y/347V 30A
SKUPDW~12314727
MFGR #BDL36030LU
Price Not Available
Square D BDL36030LU MOLDED CASE CIRCUIT BRKR 600Y/347V 30A
Square D BDL36030LU MOLDED CASE CIRCUIT BRKR 600Y/347V 30A
Actuator Type Toggle Alternate Catalog Number BDL36030LU Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number BDL36030LU Color Gray Connection Everlink lug line;Everlink lug load; AWG 6...AWG 2/0 fine stranded aluminium/copper; AWG 14...AWG 3/0 rigid or stranded aluminium/copper Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 5.39 in H x 2.12 in W x 4.01 in D Enclosure Type NEMA AB4/IP40 EU RoHS Indicator Y Frame B Frequency Rating 50/60 Gross Volume Per Pack 237.93 Gross Volume per Pack Metric 3898.96 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0118 lb Gross Weight per Pack Metric 1.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 8.4000 in Height [Metric] 11.9380 cm Item Group 01130 Length 20.6000 in Length [Metric] 20.5740 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590171&lang=en-us Mounting Type DIN Rail/Threaded Number Of Poles 2 Returnable Y Sub Brand BD 030 Substitute Product Catalog Number LV426907 Temperature Rating -13 to 158 Trip Range 1000 to 1500 Type CIRCUIT BREAKER UNSPSC 39121601 Width 11.9000 in Width [Metric] 8.3820 cm Wire Size 14 to 2/0 AWG, 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 90 A Interrupt Rating 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600Y/347 VAC kA;kA;kA Trip Type LI/Thermal Magnetic Voltage Rating 600Y/347 Distribution
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | BDL36030LU |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BDL36030LU |
| Color | Gray |
| Connection | Everlink lug line;Everlink lug load; AWG 6...AWG 2/0 fine stranded aluminium/copper; AWG 14...AWG 3/0 rigid or stranded aluminium/copper |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.39 in H x 2.12 in W x 4.01 in D |
| Enclosure Type | NEMA AB4/IP40 |
| EU RoHS Indicator | Y |
| Frame | B |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 237.93 |
| Gross Volume per Pack Metric | 3898.96 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0118 lb |
| Gross Weight per Pack Metric | 1.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 8.4000 in |
| Height [Metric] | 11.9380 cm |
| Item Group | 01130 |
| Length | 20.6000 in |
| Length [Metric] | 20.5740 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590171&lang=en-us |
| Mounting Type | DIN Rail/Threaded |
| Number Of Poles | 2 |
| Returnable | Y |
| Sub Brand | BD 030 |
| Substitute Product Catalog Number | LV426907 |
| Temperature Rating | -13 to 158 |
| Trip Range | 1000 to 1500 |
| Type | CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| Width | 11.9000 in |
| Width [Metric] | 8.3820 cm |
| Wire Size | 14 to 2/0 AWG, 14 to 3/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 90 A |
| Interrupt Rating | 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600Y/347 VAC kA;kA;kA |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 600Y/347 |
