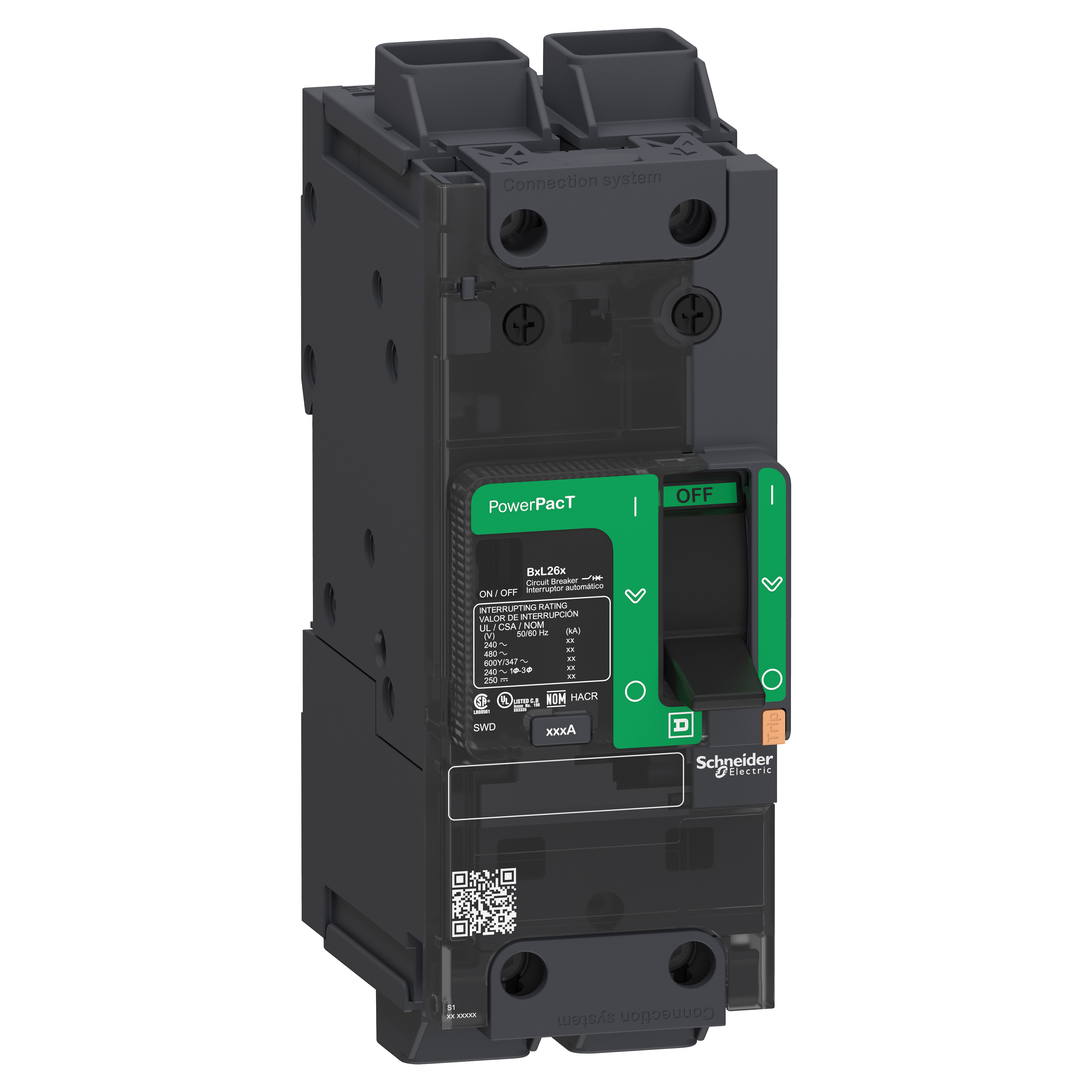

Square D™ BDL26060LU MOLDED CASE CIRCUIT BRKR 600Y/347V 60A

Custom_Product_Images_Illustration

SKUPDW~12314992

MFGR #BDL26060LU

Price Not Available

Square D BDL26060LU MOLDED CASE CIRCUIT BRKR 600Y/347V 60A

: Actuator Type
Toggle
Alternate Catalog Number
BDL26060LU
ARRA Compliant
N
Buy American Compliant
N
Catalog Number
BDL26060LU
Color
Gray
Connection Type
Line/Load Lug
Country of Origin
US
Dimensions
5.39 in H x 2.12 in W x 4.01 in D
Enclosure Type
NEMA AB4/IP40
EU RoHS Indicator
Y
Frame
B
Frequency Rating
50/60
Gross Weight Per Pack
2.1120 lb
Gross Weight per Pack Metric
959.98
Gross Weight UOM Metric
g
Harmonization Tariff Schedule Code
8536200020
Height
2.34 in
Height [Metric]
6.0000 cm
Item Group
01130
Length
9.94 in
Length [Metric]
25.5000 cm
Material Composition Declaration
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590146&lang=en-us
Mounting Type
DIN Rail/Threaded
Number Of Poles
2
Returnable
N
Substitute Product Catalog Number
LV426986
Temperature Rating
-13 to 158
Trip Range
640 to 960
UNSPSC
39121601
UPC 11
60648114883
Width
6.44 in
Width [Metric]
16.5000 cm
Wire Size
14 to 2/0 AWG, 14 to 3/0 AWG Cu
Stock Status
NONSTOCK
Brand
Square D™
Manufacturer
Schneider Electric
Amperage Rating
60 A
Interrupt Rating
25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600Y/347 VAC
Trip Type
LI/Thermal Magnetic
Voltage Rating
600Y/347
: 360 Degree View
3D Rendering
Brochure
Computer~Aided [CAD|BIM] Model
Install Instructions 1
Seller Home Page
Spec Sheet
Tech Drawing
User Manual

Actuator Type	Toggle
Alternate Catalog Number	BDL26060LU
ARRA Compliant	N
Buy American Compliant	N
Catalog Number	BDL26060LU
Color	Gray
Connection Type	Line/Load Lug
Country of Origin	US
Dimensions	5.39 in H x 2.12 in W x 4.01 in D
Enclosure Type	NEMA AB4/IP40
EU RoHS Indicator	Y
Frame	B
Frequency Rating	50/60
Gross Weight Per Pack	2.1120 lb
Gross Weight per Pack Metric	959.98
Gross Weight UOM Metric	g
Harmonization Tariff Schedule Code	8536200020
Height	2.34 in
Height [Metric]	6.0000 cm
Item Group	01130
Length	9.94 in
Length [Metric]	25.5000 cm
Material Composition Declaration	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590146&lang=en-us
Mounting Type	DIN Rail/Threaded
Number Of Poles	2
Returnable	N
Substitute Product Catalog Number	LV426986
Temperature Rating	-13 to 158
Trip Range	640 to 960
UNSPSC	39121601
UPC 11	60648114883
Width	6.44 in
Width [Metric]	16.5000 cm
Wire Size	14 to 2/0 AWG, 14 to 3/0 AWG Cu
Stock Status	NONSTOCK
Brand	Square D™
Manufacturer	Schneider Electric
Amperage Rating	60 A
Interrupt Rating	25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600Y/347 VAC
Trip Type	LI/Thermal Magnetic
Voltage Rating	600Y/347
