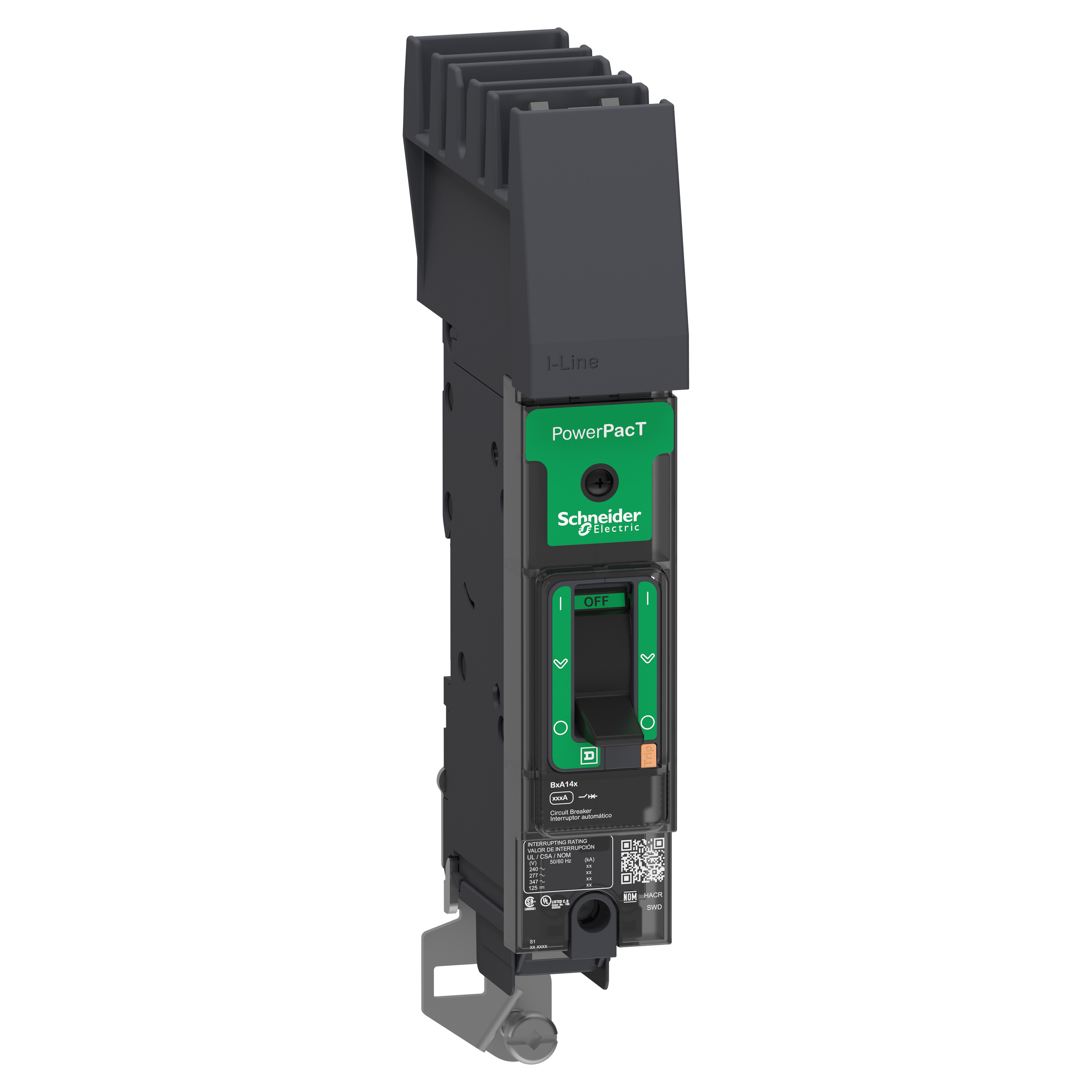

Square D™ BDA160503 MOLDED CASE CIRCUIT BREAKER 347V 50A

Custom_Product_Images_Illustration

SKUPDW~12432667

MFGR #BDA160503

Price Not Available

Square D BDA160503 MOLDED CASE CIRCUIT BREAKER 347V 50A

: Actuator Type
Toggle
Alternate Catalog Number
BDA160503
ARRA Compliant
N
Buy American Compliant
N
Catalog Number
BDA160503
Color
Gray
Connection Type
I-Line™/Mechanical Lug
Country of Origin
US
Currency
USD
Dimensions
5.39 in H x 1.06 in W x 3.5 in D
Enclosure Type
IP40/IK07
EU RoHS Indicator
Y
Frame
B
Frequency Rating
50/60
Gross Weight Per Pack
8.0200 lb
Gross Weight per Pack Metric
802.00
Gross Weight UOM Metric
g
Harmonization Tariff Schedule Code
8538908120
Height
6.5000 in
Height [Metric]
6.5000 cm
Item Group
01133
Length
30.5000 in
Length [Metric]
30.5000 cm
Material Composition Declaration
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442589900&lang=en-us
Number Of Poles
1
Phase
1
Returnable
Y
Temperature Rating
-13 to 158
Trip Range
480 to 720
Type
Type BDA
UNSPSC
39121601
Width
19.6000 in
Width [Metric]
19.6000 cm
Wire Size
14 to 2/0 AWG Al/Cu
Stock Status
NONSTOCK
Brand
Square D™
Manufacturer
Schneider Electric
Amperage Rating
50 A
Interrupt Rating
14
Trip Type
Thermal Magnetic
Voltage Rating
600Y/347
: 360 Degree View
360 Degree View
Brochure
Brochure
Computer~Aided [CAD|BIM] Model
Install Instructions 1
Seller Home Page
Spec Sheet
Tech Drawing
Tech Drawing

Actuator Type	Toggle
Alternate Catalog Number	BDA160503
ARRA Compliant	N
Buy American Compliant	N
Catalog Number	BDA160503
Color	Gray
Connection Type	I-Line™/Mechanical Lug
Country of Origin	US
Currency	USD
Dimensions	5.39 in H x 1.06 in W x 3.5 in D
Enclosure Type	IP40/IK07
EU RoHS Indicator	Y
Frame	B
Frequency Rating	50/60
Gross Weight Per Pack	8.0200 lb
Gross Weight per Pack Metric	802.00
Gross Weight UOM Metric	g
Harmonization Tariff Schedule Code	8538908120
Height	6.5000 in
Height [Metric]	6.5000 cm
Item Group	01133
Length	30.5000 in
Length [Metric]	30.5000 cm
Material Composition Declaration	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442589900&lang=en-us
Number Of Poles	1
Phase	1
Returnable	Y
Temperature Rating	-13 to 158
Trip Range	480 to 720
Type	Type BDA
UNSPSC	39121601
Width	19.6000 in
Width [Metric]	19.6000 cm
Wire Size	14 to 2/0 AWG Al/Cu
Stock Status	NONSTOCK
Brand	Square D™
Manufacturer	Schneider Electric
Amperage Rating	50 A
Interrupt Rating	14
Trip Type	Thermal Magnetic
Voltage Rating	600Y/347
