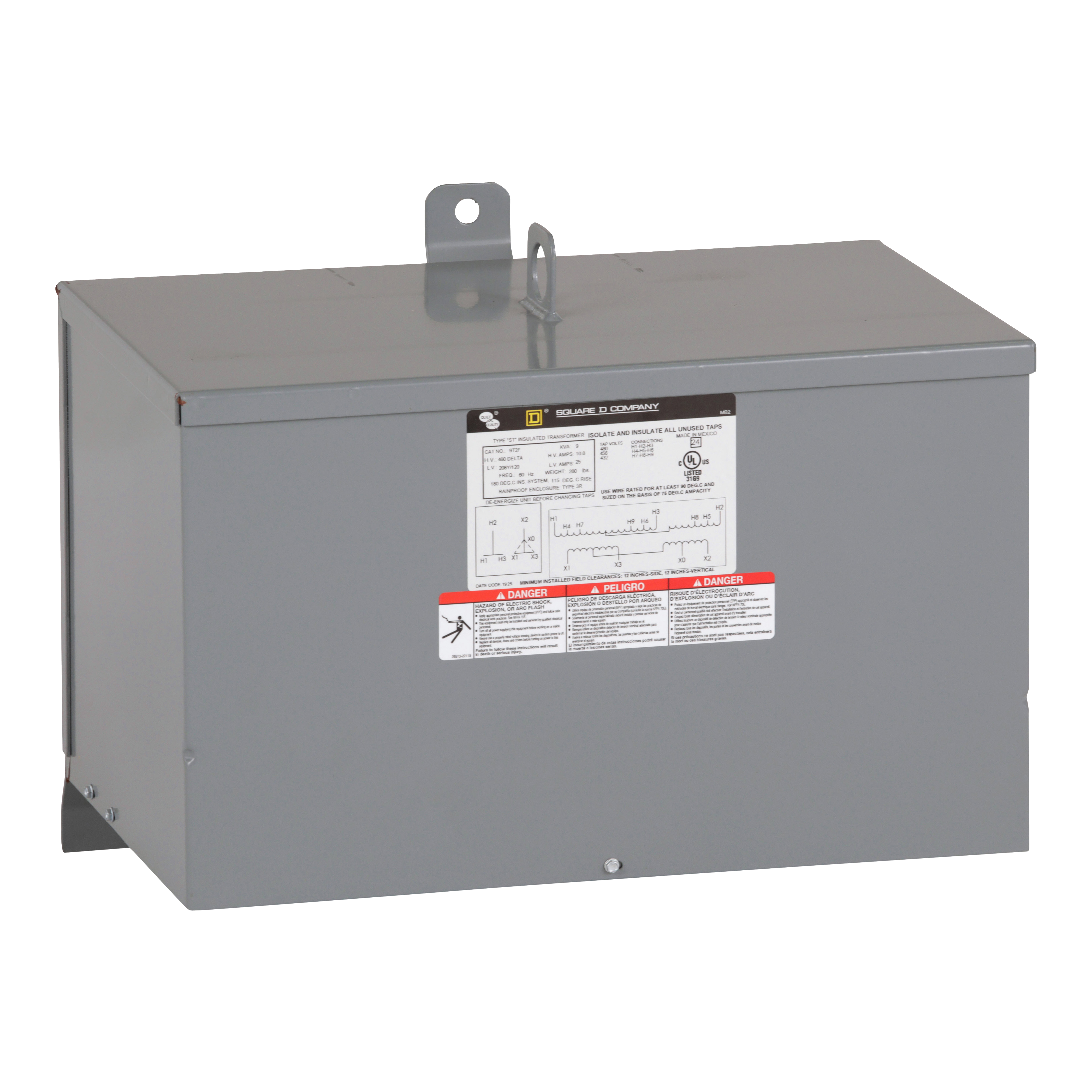

Square D™ 9T2F Dry Encapsulated General Purpose Resin Sealed Transformer, 480 VAC Delta Primary, 208Y/120 VAC Secondary
Custom_Product_Images_Illustration
Square D™ 9T2F Dry Encapsulated General Purpose Resin Sealed Transformer, 480 VAC Delta Primary, 208Y/120 VAC Secondary
SKU33116
MFGR #9T2F
Your Cost: $3,930.79/ea
List: Square D 9T2F TRANSFORMER DRY 3PH 9KVA 480V-208Y/120V,115 Degrees C,180 deg.C,208Y/120VAC,3 phases,480VAC (Delta),9 kVA,Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
Square D 9T2F TRANSFORMER DRY 3PH 9KVA 480V-208Y/120V,115 Degrees C,180 deg.C,208Y/120VAC,3 phases,480VAC (Delta),9 kVA,Dry Sealed Transformer,General Purpose - Intended for power, heating and lighting applications,NEMA 3R,Wall,cULus Listed
Alternate Catalog Number 9T2F Application GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS ARRA Compliant N Buy American Compliant N Catalog Number 9T2F Country of Origin MX Currency USD Dimensions 14.75 in H x 19.1 in W x 12.25 in D Enclosure Painted sheet steel;14C Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 280.0100 lb Gross Weight per Pack Metric 127.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 37.5920 in Height [Metric] 37.5920 cm Housing Material Steel Insulation 180 Insulation Class 115 Item Group 16277 KVA Rating 9 Length 35.3060 in Length [Metric] 35.3060 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456331&lang=en-us Mounting Wall Mounted Mounting Type Wall Number Of Taps 2 Returnable Y Standard UL LISTED-CSA-CULUS Substitute Product Catalog Number VCELSK1 Temperature Rating 115 °C Type Dry Sealed Encapsulated General Purpose Resin Sealed UNSPSC 39121001 UPC 11 78590135949 UPC 12 785901359494 Warranty Description Contractual Warranty:18 months Width 49.0220 in Width [Metric] 49.0220 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Frequency Rating 60 Hz Phase 3 Power Rating 9 kVA Primary Voltage 480 Delta VAC Secondary Voltage 208Y/120 VAC GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS DRY SEALED TRANSFORMER Resin filled general purpose transformers are epoxy encapsulated The core and coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9T2F |
| Application | GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9T2F |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 14.75 in H x 19.1 in W x 12.25 in D |
| Enclosure | Painted sheet steel;14C |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 280.0100 lb |
| Gross Weight per Pack Metric | 127.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 37.5920 in |
| Height [Metric] | 37.5920 cm |
| Housing Material | Steel |
| Insulation | 180 |
| Insulation Class | 115 |
| Item Group | 16277 |
| KVA Rating | 9 |
| Length | 35.3060 in |
| Length [Metric] | 35.3060 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456331&lang=en-us |
| Mounting | Wall Mounted |
| Mounting Type | Wall |
| Number Of Taps | 2 |
| Returnable | Y |
| Standard | UL LISTED-CSA-CULUS |
| Substitute Product Catalog Number | VCELSK1 |
| Temperature Rating | 115 °C |
| Type | Dry Sealed Encapsulated General Purpose Resin Sealed |
| UNSPSC | 39121001 |
| UPC 11 | 78590135949 |
| UPC 12 | 785901359494 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 49.0220 in |
| Width [Metric] | 49.0220 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 9 kVA |
| Primary Voltage | 480 Delta VAC |
| Secondary Voltage | 208Y/120 VAC |
| GENERAL PURPOSE - INTENDED FOR POWER, HEATING AND LIGHTING APPLICATIONS |
| DRY SEALED TRANSFORMER |
| Resin filled general purpose transformers are epoxy encapsulated |
| The core and coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection |
