Square D™

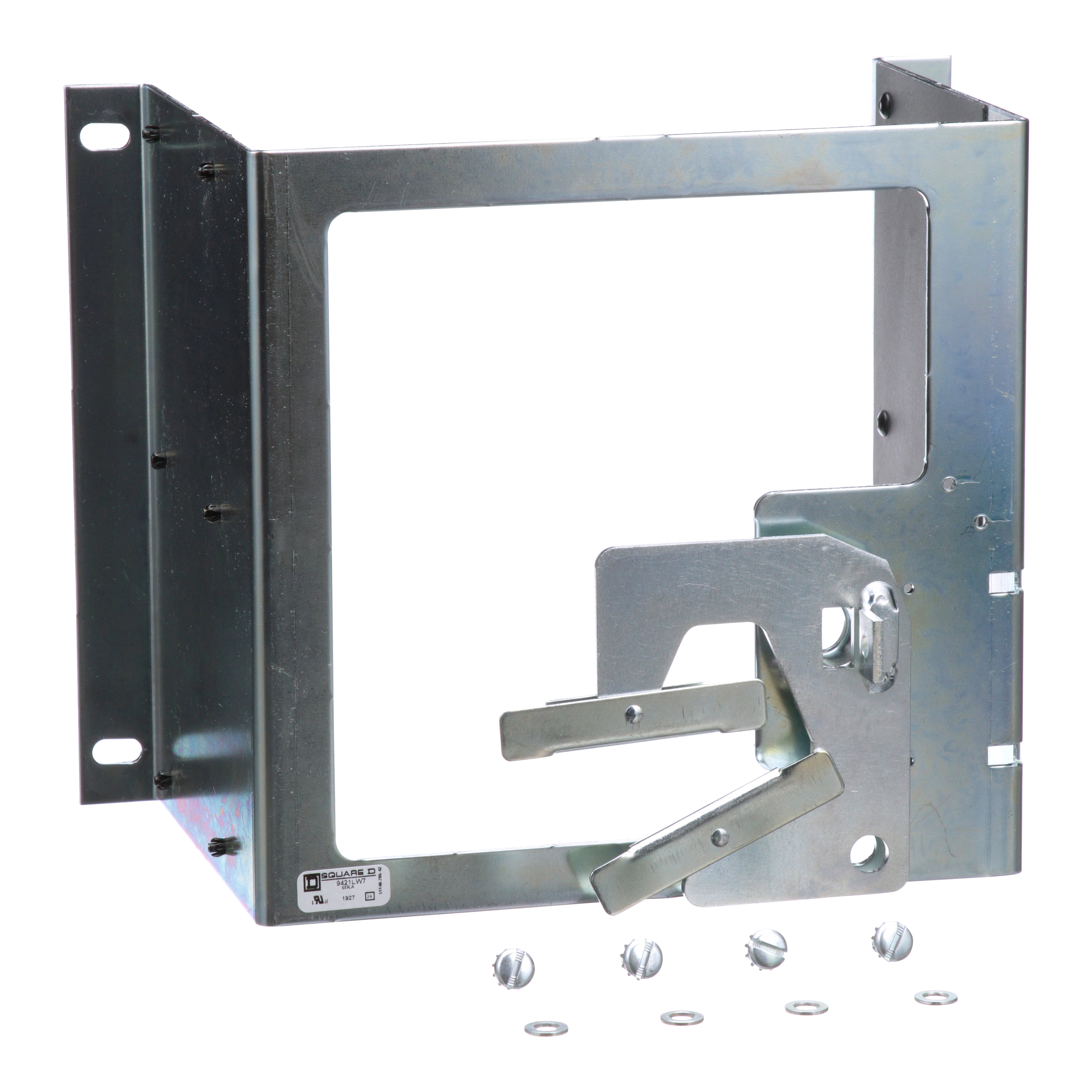

Square D™ 9421LW7 9421L Circuit Breaker Mechanism, Rotary operation, For Use With PowerPact® M or P-Frame 1200 A Circuit Breaker

Custom_Product_Images_Illustration

Square D™

Square D™ 9421LW7 9421L Circuit Breaker Mechanism, Rotary operation, For Use With PowerPact® M or P-Frame 1200 A Circuit Breaker

SKU560077

MFGR #9421LW7

Your Cost: $185.00/ea
List: $197.41 /ea
Square D 9421LW7 OPERATING MECHANISM 600VAC 100AMP NEMA,1200 A,600 V AC,Circuit breaker,Direct,Direct to Breaker,Handle,NEMA,Operating Mechanism,Powerpact M & P. Includes Lockout,Powerpact M or P circuit breakers,Schneider Electric
Square D 9421LW7 OPERATING MECHANISM 600VAC 100AMP NEMA,1200 A,600 V AC,Circuit breaker,Direct,Direct to Breaker,Handle,NEMA,Operating Mechanism,Powerpact M & P. Includes Lockout,Powerpact M or P circuit breakers,Schneider Electric

Actuator

Handle

Alternate Catalog Number

9421LW7

Application

POWERPACT M OR P CIRCUIT BREAKERS

ARRA Compliant

N

Brand

Square D™

Buy American Compliant

N

Catalog Number

9421LW7

Connection

DIRECT

Country of Origin

MX

Currency

USD

EU RoHS Indicator

Y

Gross Volume Per Pack

1259.28

Gross Volume per Pack Metric

20635.82

Gross Volume UOM

CI

Gross Volume UOM Metric

cm3

Gross Weight Per Pack

7.0100 lb

Gross Weight per Pack Metric

3.18

Gross Weight UOM Metric

kg

Handle|Operation

Rotary Handle

Harmonization Tariff Schedule Code

8538908180

Height

25.9080 in

Height [Metric]

26.9240 cm

Item Group

21731

Length

33.0200 in

Length [Metric]

33.5280 cm

Manufacturer

Schneider Electric

Material Composition Declaration

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565477&lang=en-us

Mounting

DIRECT TO BREAKER

Returnable

Y

Series

9421L

Standard

NEMA

Standards

RoHS Compliant

Stock Status

NONSTOCK

Sub Brand

SCHNEIDER ELECTRIC

Suitable For Use With

PowerPact® M or P-Frame 1200 A Circuit Breaker

Trip Type

CIRCUIT BREAKER

Type

OPERATING MECHANISM

UNSPSC

39121601

UPC 11

78590168429

UPC 12

785901684299

Voltage Rating

600 VAC

Warranty Description

Contractual Warranty:18 months

Width

23.1140 in

Width [Metric]

22.8600 cm
