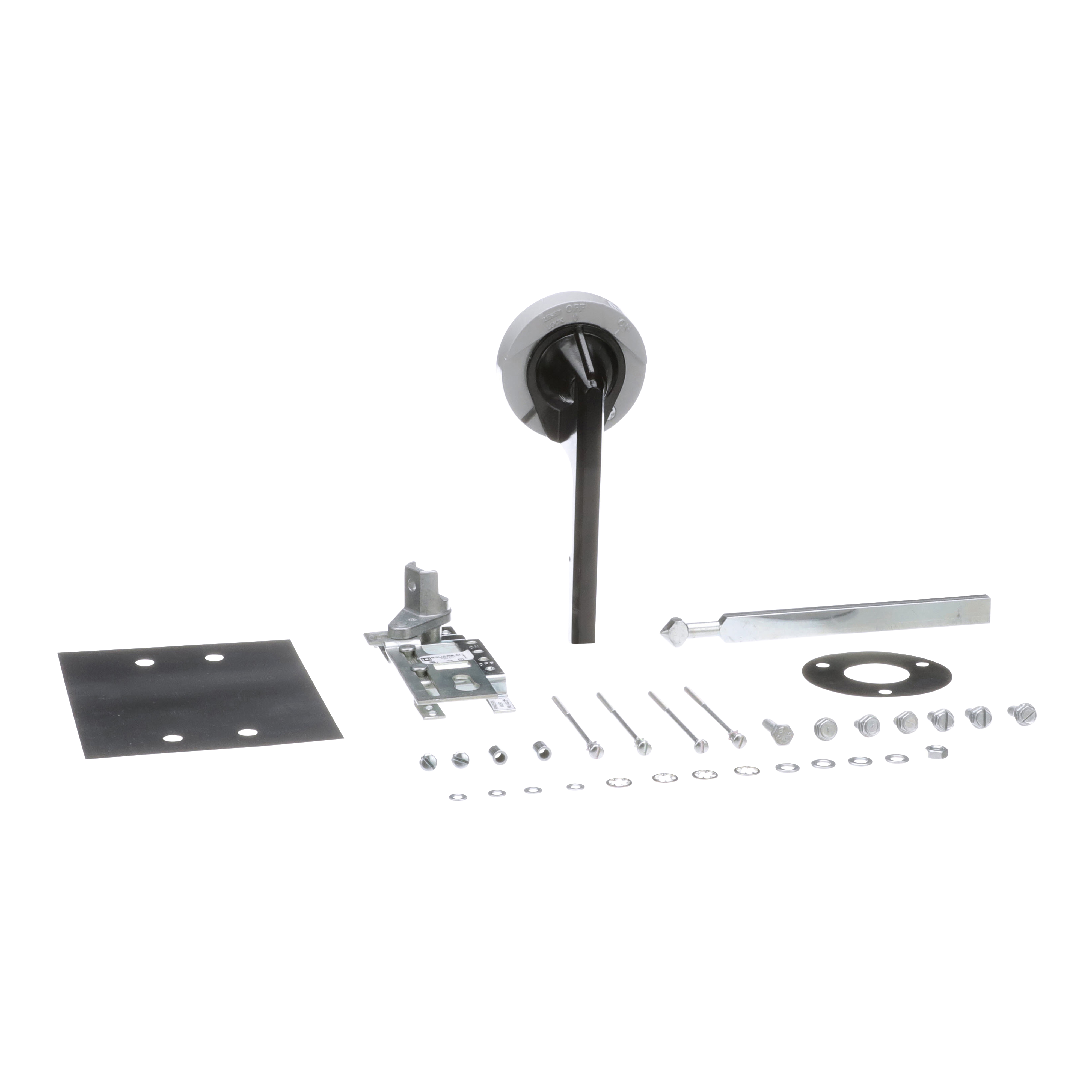

Square D™ 9421LP4 OPERATING MECHANISM 600VAC 250AMP NEMA
SKU32141
MFGR #9421LP4
Your Cost: $325.81/ea
List: Square D 9421LP4 OPERATING MECHANISM 600VAC 250AMP NEMA,250A,250A,6 Inch Handle (9421LH6),600VAC,Circuit Breaker Mechanism,Complete kit with Handle, Shaft, and Operating Mechanism,Direct,Door Mount-Variable Depth,KAL/KCL/KHL 250A,KAL/KCL/KHL Circuit Breakers,NEMA,Off/On,Rated for NEMA 1/3R/12 Enclosures,Schneider Electric
Square D 9421LP4 OPERATING MECHANISM 600VAC 250AMP NEMA,250A,250A,6 Inch Handle (9421LH6),600VAC,Circuit Breaker Mechanism,Complete kit with Handle, Shaft, and Operating Mechanism,Direct,Door Mount-Variable Depth,KAL/KCL/KHL 250A,KAL/KCL/KHL Circuit Breakers,NEMA,Off/On,Rated for NEMA 1/3R/12 Enclosures,Schneider Electric
Actuator 6 INCH HANDLE (9421LH6) Alternate Catalog Number 9421LP4 Application KAL/KCL/KHL CIRCUIT BREAKERS ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9421LP4 Connection DIRECT Country of Origin MX Currency USD Enclosure RATED FOR NEMA 1/3R/12 ENCLOSURES EU RoHS Indicator Y Gross Volume Per Pack 330.03 Gross Volume per Pack Metric 5408.20 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.1100 lb Gross Weight per Pack Metric 2.32 Gross Weight UOM Metric kg Handle Color Black Handle To Device Connection 6-1/4 to 21-3/4 in Handle|Operation Rotary Handle Harmonization Tariff Schedule Code 8538908120 Height 7.6200 in Height [Metric] 7.6200 cm Item Group 21731 Length 50.0380 in Length [Metric] 50.0380 cm Manufacturer Schneider Electric Material Metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565455&lang=en-us Mounting DOOR MOUNT-VARIABLE DEPTH NEMA Rating NEMA 1/3R/12 Returnable Y Series 9421L Shaft Length 18.12 in Standard NEMA Stock Status NONSTOCK Sub Brand SCHNEIDER ELECTRIC Suitable For Use With Type KAL/KCL/KHL 250 A 600 VAC Circuit Breaker Trip Type KAL/KCL/KHL 250A Type Type L Direct/Door Mount Variable Depth UNSPSC 39121601 UPC 11 78590111111 UPC 12 785901111115 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 14.7320 in Width [Metric] 14.7320 cm KAL/KCL/KHL CIRCUIT BREAKERS COMPLETE KIT WITH HANDLE, SHAFT, AND OPERATING MECHANISM
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | 6 INCH HANDLE (9421LH6) |
| Alternate Catalog Number | 9421LP4 |
| Application | KAL/KCL/KHL CIRCUIT BREAKERS |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9421LP4 |
| Connection | DIRECT |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | RATED FOR NEMA 1/3R/12 ENCLOSURES |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 330.03 |
| Gross Volume per Pack Metric | 5408.20 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.1100 lb |
| Gross Weight per Pack Metric | 2.32 |
| Gross Weight UOM Metric | kg |
| Handle Color | Black |
| Handle To Device Connection | 6-1/4 to 21-3/4 in |
| Handle|Operation | Rotary Handle |
| Harmonization Tariff Schedule Code | 8538908120 |
| Height | 7.6200 in |
| Height [Metric] | 7.6200 cm |
| Item Group | 21731 |
| Length | 50.0380 in |
| Length [Metric] | 50.0380 cm |
| Manufacturer | Schneider Electric |
| Material | Metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565455&lang=en-us |
| Mounting | DOOR MOUNT-VARIABLE DEPTH |
| NEMA Rating | NEMA 1/3R/12 |
| Returnable | Y |
| Series | 9421L |
| Shaft Length | 18.12 in |
| Standard | NEMA |
| Stock Status | NONSTOCK |
| Sub Brand | SCHNEIDER ELECTRIC |
| Suitable For Use With | Type KAL/KCL/KHL 250 A 600 VAC Circuit Breaker |
| Trip Type | KAL/KCL/KHL 250A |
| Type | Type L Direct/Door Mount Variable Depth |
| UNSPSC | 39121601 |
| UPC 11 | 78590111111 |
| UPC 12 | 785901111115 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 14.7320 in |
| Width [Metric] | 14.7320 cm |
| KAL/KCL/KHL CIRCUIT BREAKERS |
| COMPLETE KIT WITH HANDLE, SHAFT, AND OPERATING MECHANISM |
