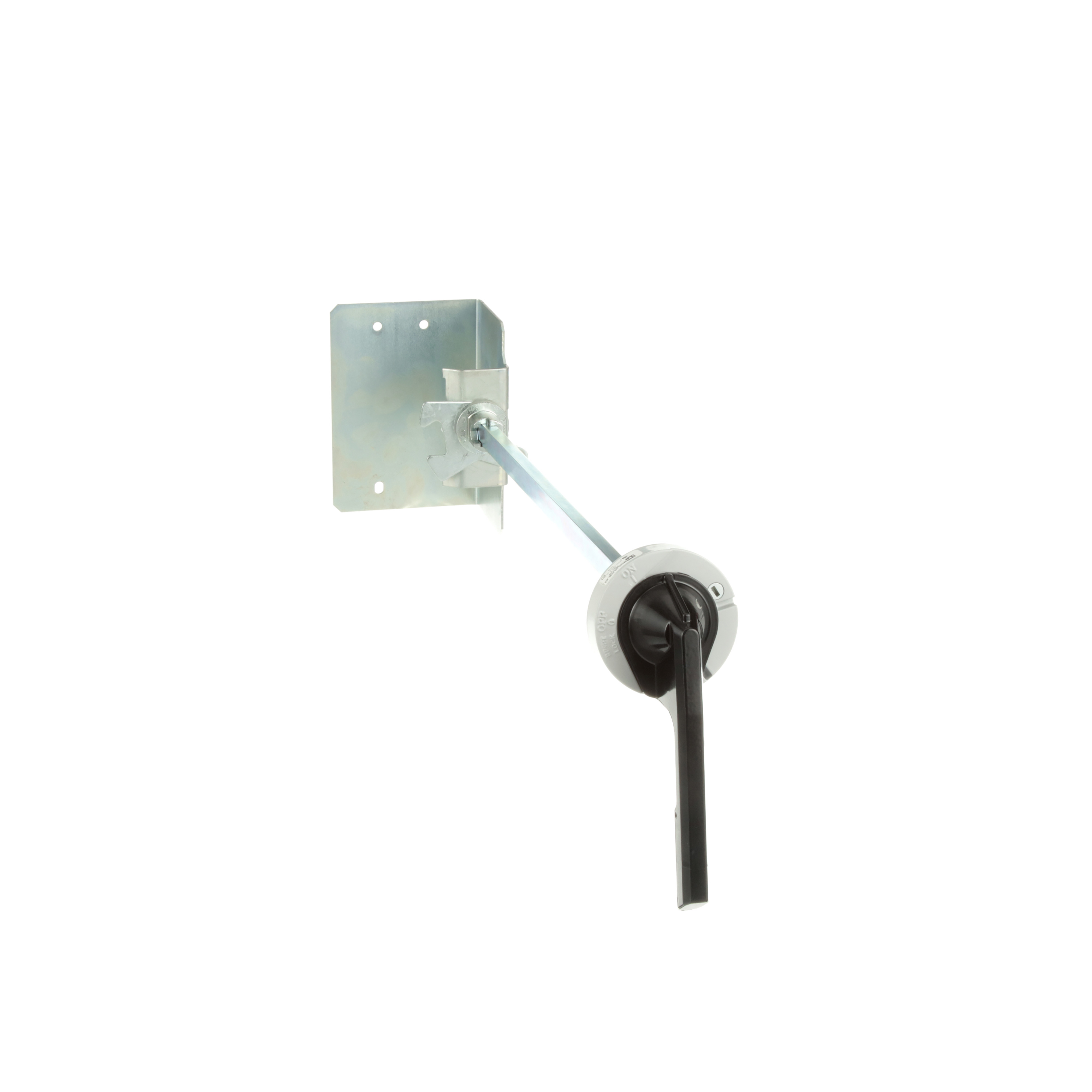

Square D™ 9421L Long Shaft Circuit Breaker Mechanism, Direct Handle To Device Connection
Disconnect Switches
319342
MFG #: 9421LJ4
Square D™
351.17000
/ ea
Square D 9421LJ4 ROTARY OPERATING MECH 600VAC 250 NEMA,6 Inch Handle,6 Inch Handle (9421LH6),Circuit Breaker Mechanism,Complete kit with Handle, Shaft, and Operating Mechanism,Direct,Door Mount-Variable Depth,MG-NSF or Powerpact H and J-Frame 250A,NEMA,Off/On,Powerpact H or J, MG-NSF circuit breakers,Rated for NEMA 1/3R/12 Enclosures,Schneider Electric
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=9583887360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=9421LJ4(3D Rendering URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Catalog URL - Square_D_9421LF1_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9422 LJ_OUTLINE_001.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9422+LJ_OUTLINE_001.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_BLXONSRT6IZ583EF.pdf(Install Instructions 1 URL)
- Install Instructions URL - files?p_Doc_Ref=50006-716-01(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Square_D_9421LJ4_Datasheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_YXB7V98CGW5AZK4N.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_2UPWMKHSGERJ09Q6.zip(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=9422_LJ_OUTLINE_001.dxf(Tech Drawing URL)
- Applications
- Features
| POWERPACT H OR J, MG-NSF CIRCUIT BREAKERS |
| COMPLETE KIT WITH HANDLE, SHAFT, AND OPERATING MECHANISM |
| Circuit Breaker Operating Mechanism Kit |
| Used to externally switch circuit breakers |
| Kit has heavy duty all metal construction |
| Can switch 2 or 3 pole breakers with a 250 A breaker frame size |
| Designed for NSF, PowerPact H and J circuit breakers |
| Will work with on enclosures of various depths |
| Trip indication is standard |
| Mechanism can be padlocked in the OFF position |
| Up to three padlocks can be used at once |
| Kit contains operating mechanism, standard 6 inch handle and standard shaft kit |
| NEMA 1, 3R and 12 rated |
