Square D™

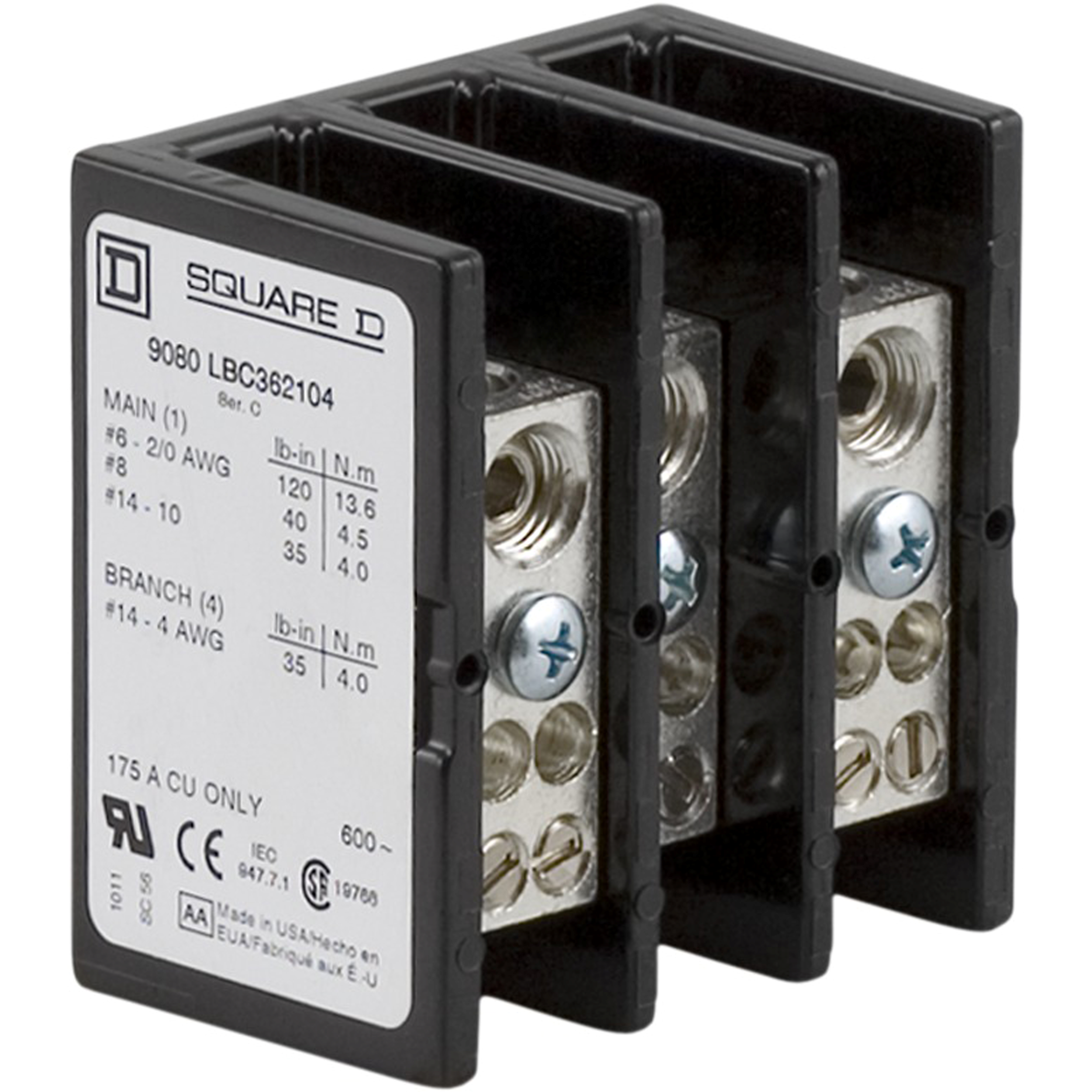

Square D™ 9080LBC362104 TeSys™ Power Distribution Block, 600 VAC, 175 A, 3 Poles, 14 to 2/0 AWG Wire, Phenolic
Custom_Product_Images_Illustration
Square D™
Square D™ 9080LBC362104 TeSys™ Power Distribution Block, 600 VAC, 175 A, 3 Poles, 14 to 2/0 AWG Wire, Phenolic
SKU96528
MFGR #9080LBC362104
Your Cost: $280.71/ea
List: Square D 9080LBC362104 POWER DISTRIBUTION BLOCK 600V 175A,(1)#14 to #2/0 AWG (4)#14 to #4 AWG,175A Copper Only,600 V AC,9080LB,9080LB23,General Purpose Phenolic,Lugs Tin Plated Copper,Power Distribution Block
Square D 9080LBC362104 POWER DISTRIBUTION BLOCK 600V 175A,(1)#14 to #2/0 AWG (4)#14 to #4 AWG,175A Copper Only,600 V AC,9080LB,9080LB23,General Purpose Phenolic,Lugs Tin Plated Copper,Power Distribution Block
Alternate Catalog Number 9080LBC362104 Amperage Rating 175 A Application 9080LB,9080LB23 ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9080LBC362104 Connection LINE LUG 40 LBF.IN AWG 8 COPPER-LINE LUG 35 LBF.IN AWG 14...AWG 10 COPPER-LINE LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER-LOAD LUG 35 LBF.IN AWG 14...AWG 4 COPPER,TIN PLATED COPPER LUGS Country of Origin US Currency USD Dimensions 2.88 in H x 2.75 in W x 1.78 in D EU RoHS Indicator Y Gross Volume Per Pack 13.61 Gross Volume per Pack Metric 222.99 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.8500 lb Gross Weight per Pack Metric 385.55 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536904000 Height 4.8260 in Height [Metric] 4.8260 cm Item Group 21711 Length 6.8580 in Length [Metric] 6.8580 cm Manufacturer Schneider Electric Material Phenolic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373035&lang=en-us Mounting Surface Mount Number Of Poles 3 Primary Connections|Pole 1 Returnable Y Secondary Connection|Pole 4 Series 9080LB Short Circuit Current Rating 65 kA Size 1.78 IN,2.75 IN,2.88 IN in Standard CSA FILE 70361 CLASS 6228 01-UL RECOGNIZED E60616 CCN XCFR2-CE Stock Status NONSTOCK Substitute Product Catalog Number 9080LB23 Type General Purpose Standard UNSPSC 39121410 UPC 11 78590109766 UPC 12 785901097662 Voltage Rating 600 VAC//VDC Warranty Description Contractual Warranty:18 months Width 7.1120 in Width [Metric] 7.1120 cm Wire Size (1) 14 to 2/0 AWG, (4) 14 to 4 AWG 9080LB,9080LB23 LUGS TIN PLATED COPPER,PHENOLIC BLOCK Main (1) 14 to 2/0 AWG branch, (4) 14 to 4 AWG copper wire size Lugs tin plated copper connection Block type Cu only wire Service class C -40 to 302 deg F temperature rating (1) lug primary, (4) lug secondary
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9080LBC362104 |
| Amperage Rating | 175 A |
| Application | 9080LB,9080LB23 |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9080LBC362104 |
| Connection | LINE LUG 40 LBF.IN AWG 8 COPPER-LINE LUG 35 LBF.IN AWG 14...AWG 10 COPPER-LINE LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER-LOAD LUG 35 LBF.IN AWG 14...AWG 4 COPPER,TIN PLATED COPPER LUGS |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.88 in H x 2.75 in W x 1.78 in D |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 13.61 |
| Gross Volume per Pack Metric | 222.99 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.8500 lb |
| Gross Weight per Pack Metric | 385.55 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 4.8260 in |
| Height [Metric] | 4.8260 cm |
| Item Group | 21711 |
| Length | 6.8580 in |
| Length [Metric] | 6.8580 cm |
| Manufacturer | Schneider Electric |
| Material | Phenolic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373035&lang=en-us |
| Mounting | Surface Mount |
| Number Of Poles | 3 |
| Primary Connections|Pole | 1 |
| Returnable | Y |
| Secondary Connection|Pole | 4 |
| Series | 9080LB |
| Short Circuit Current Rating | 65 kA |
| Size | 1.78 IN,2.75 IN,2.88 IN in |
| Standard | CSA FILE 70361 CLASS 6228 01-UL RECOGNIZED E60616 CCN XCFR2-CE |
| Stock Status | NONSTOCK |
| Substitute Product Catalog Number | 9080LB23 |
| Type | General Purpose Standard |
| UNSPSC | 39121410 |
| UPC 11 | 78590109766 |
| UPC 12 | 785901097662 |
| Voltage Rating | 600 VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.1120 in |
| Width [Metric] | 7.1120 cm |
| Wire Size | (1) 14 to 2/0 AWG, (4) 14 to 4 AWG |
| 9080LB,9080LB23 |
| LUGS TIN PLATED COPPER,PHENOLIC BLOCK |
| Main (1) 14 to 2/0 AWG branch, (4) 14 to 4 AWG copper wire size |
| Lugs tin plated copper connection |
| Block type Cu only wire |
| Service class C |
| -40 to 302 deg F temperature rating |
| (1) lug primary, (4) lug secondary |
