Square D™

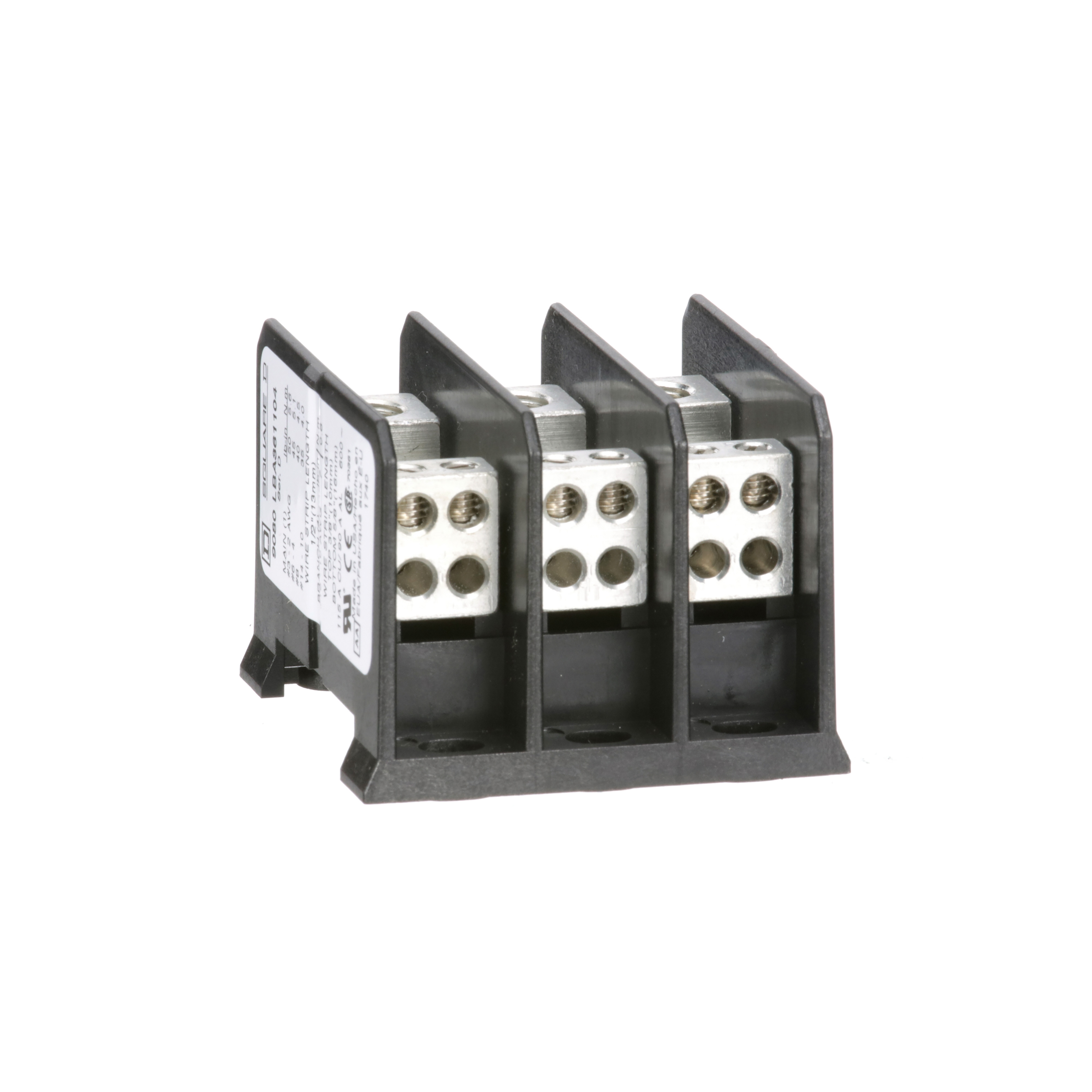

Square D™ 9080LBA361104 TeSys™ Miniature Power Distribution Block, 600 VAC, 115 A, 3 Poles, 14 to 2 AWG Wire, Thermoplastic
Custom_Product_Images_Illustration
Square D™
Square D™ 9080LBA361104 TeSys™ Miniature Power Distribution Block, 600 VAC, 115 A, 3 Poles, 14 to 2 AWG Wire, Thermoplastic
SKU32075
MFGR #9080LBA361104
Your Cost: $65.64/ea
List: Square D 9080LBA361104 POWER DISTRIBUTION BLOCK 600V 115A,(1)#14 to #2 AWG (4)#18 to #10 AWG,115A 90A,600 V AC,9080LB,High Impact Thermoplastic,Lugs Tin Plated Aluminum,Miniature Power Distribution Block
Square D 9080LBA361104 POWER DISTRIBUTION BLOCK 600V 115A,(1)#14 to #2 AWG (4)#18 to #10 AWG,115A 90A,600 V AC,9080LB,High Impact Thermoplastic,Lugs Tin Plated Aluminum,Miniature Power Distribution Block
Alternate Catalog Number 9080LBA361104 Amperage Rating 115 A, 90 A Application 9080LB,9080LB13 ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9080LBA361104 Color Black Country of Origin US Currency USD Dimensions 2.29 in H x 2.1 in W x 1.53 in D EU RoHS Indicator Y Gross Volume Per Pack 7.73 Gross Volume per Pack Metric 126.64 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1815 lb Gross Weight per Pack Metric 99.79 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536904000 Height 4.0640 in Height [Metric] 4.0640 cm Item Group 21711 Length 5.8420 in Length [Metric] 5.8420 cm Manufacturer Schneider Electric Material Thermoplastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372981&lang=en-us Mounting SURFACE MOUNT Number Of Poles 3 Primary Connections|Pole 1 Returnable Y Secondary Connection|Pole 4 Series 9080LB Short Circuit Current Rating 65 kA Size 1.62 IN,2.12 IN,2.29 IN in Standard CE-UL RECOGNIZED E60616 CCN XCFR2-CSA FILE 70361 CLASS 6228 01 Stock Status NORMALLY STOCKED Substitute Product Catalog Number 9080LB13 Type High Impact Miniature UNSPSC 39121410 UPC 11 78590109743 UPC 12 785901097433 Voltage Rating 600 VAC//VDC Warranty Description Contractual Warranty:18 months Width 5.3340 in Width [Metric] 5.3340 cm Wire Size (1) 14 to 2 AWG, (4) 18 to 10 AWG 9080LB,9080LB13 LUGS TIN PLATED ALUMINIUM,THERMOPLASTIC BLOCK Open Power Distribution Blocks Available in a wide variety of sizes These open power distribution blocks are available in one, two, and three pole versions. They are available with either aluminum or copper lugs. Many blocks have been tested to achieve SCCR up to 100 kA. They are UL component recognized, CSA approved and RoHS compliant A selection of covers completes this family
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9080LBA361104 |
| Amperage Rating | 115 A, 90 A |
| Application | 9080LB,9080LB13 |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9080LBA361104 |
| Color | Black |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.29 in H x 2.1 in W x 1.53 in D |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 7.73 |
| Gross Volume per Pack Metric | 126.64 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1815 lb |
| Gross Weight per Pack Metric | 99.79 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 4.0640 in |
| Height [Metric] | 4.0640 cm |
| Item Group | 21711 |
| Length | 5.8420 in |
| Length [Metric] | 5.8420 cm |
| Manufacturer | Schneider Electric |
| Material | Thermoplastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372981&lang=en-us |
| Mounting | SURFACE MOUNT |
| Number Of Poles | 3 |
| Primary Connections|Pole | 1 |
| Returnable | Y |
| Secondary Connection|Pole | 4 |
| Series | 9080LB |
| Short Circuit Current Rating | 65 kA |
| Size | 1.62 IN,2.12 IN,2.29 IN in |
| Standard | CE-UL RECOGNIZED E60616 CCN XCFR2-CSA FILE 70361 CLASS 6228 01 |
| Stock Status | NORMALLY STOCKED |
| Substitute Product Catalog Number | 9080LB13 |
| Type | High Impact Miniature |
| UNSPSC | 39121410 |
| UPC 11 | 78590109743 |
| UPC 12 | 785901097433 |
| Voltage Rating | 600 VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.3340 in |
| Width [Metric] | 5.3340 cm |
| Wire Size | (1) 14 to 2 AWG, (4) 18 to 10 AWG |
| 9080LB,9080LB13 |
| LUGS TIN PLATED ALUMINIUM,THERMOPLASTIC BLOCK |
| Open Power Distribution Blocks |
| Available in a wide variety of sizes |
| These open power distribution blocks are available in one, two, and three pole versions. |
| They are available with either aluminum or copper lugs. |
| Many blocks have been tested to achieve SCCR up to 100 kA. |
| They are UL component recognized, CSA approved and RoHS compliant |
| A selection of covers completes this family |
