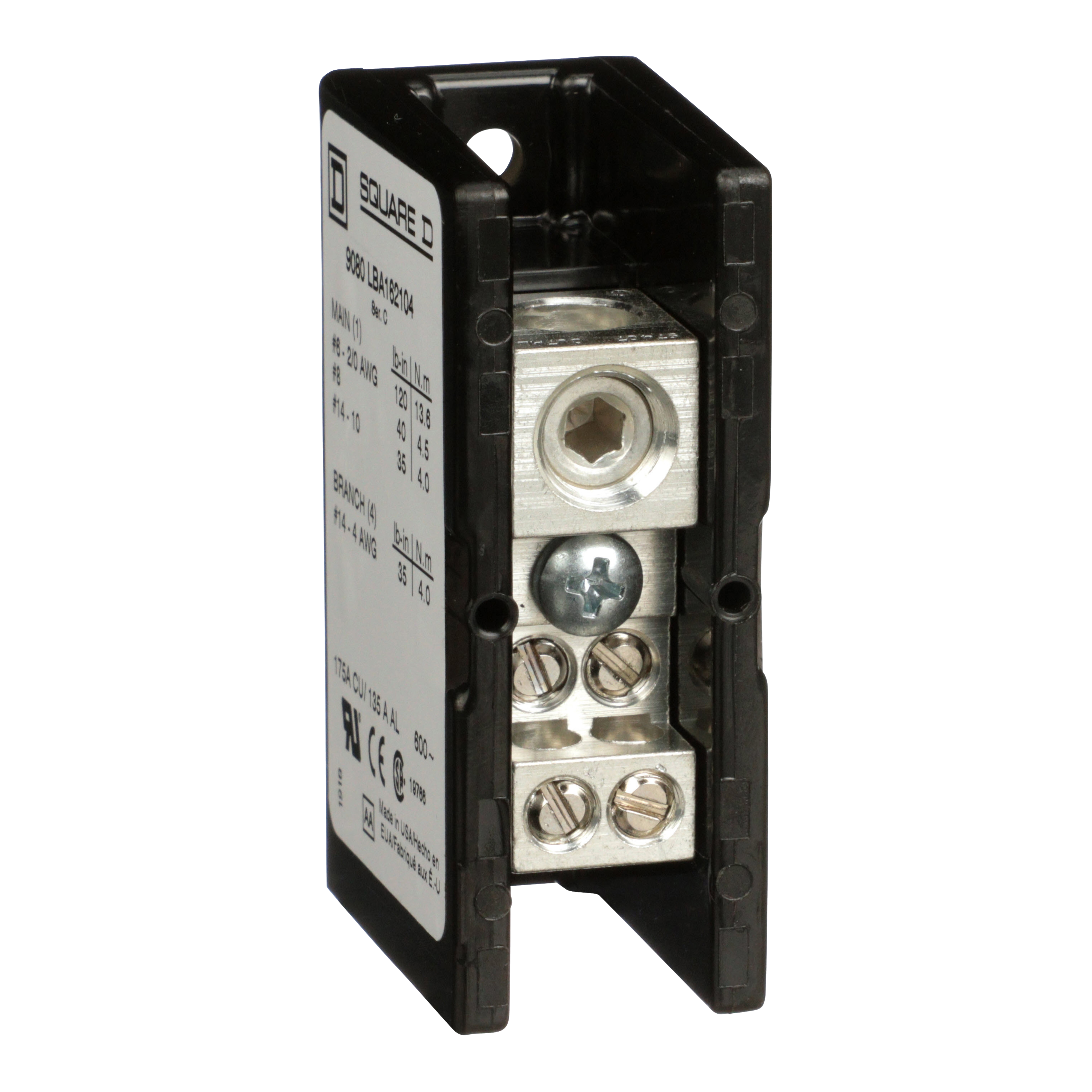

Square D™ 9080LBA162104 TeSys™ Power Distribution Block, 600 VAC, 175 A, 1 Pole, 14 to 2/0 AWG Wire, Phenolic
Custom_Product_Images_Illustration
Square D™ 9080LBA162104 TeSys™ Power Distribution Block, 600 VAC, 175 A, 1 Pole, 14 to 2/0 AWG Wire, Phenolic
SKU32073
MFGR #9080LBA162104
Your Cost: $34.53/ea
List: Square D 9080LBA162104 POWER DISTRIBUTION BLOCK 600V 175A,(1)#14 to #2/0 AWG (4)#14 to #4 AWG,175A 135A,600 V AC,9080LB,9080LB21,General Purpose Phenolic,Lugs Tin Plated Aluminum,Power Distribution Block
Square D 9080LBA162104 POWER DISTRIBUTION BLOCK 600V 175A,(1)#14 to #2/0 AWG (4)#14 to #4 AWG,175A 135A,600 V AC,9080LB,9080LB21,General Purpose Phenolic,Lugs Tin Plated Aluminum,Power Distribution Block
Alternate Catalog Number 9080LBA162104 Amperage Rating 175 A, 135 A Application 9080LB,9080LB21 ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9080LBA162104 Country of Origin US Currency USD Dimensions 2.88 in H x 1.13 in W x 1.78 in D EU RoHS Indicator Y Finish Tin Plated Gross Volume Per Pack 5.74 Gross Volume per Pack Metric 94.09 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2200 lb Gross Weight per Pack Metric 99.79 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536904000 Height 7.3660 in Height [Metric] 7.3660 cm Item Group 21711 Length 4.5720 in Length [Metric] 4.5720 cm Manufacturer Schneider Electric Material Phenolic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372925&lang=en-us Mounting SURFACE MOUNT Number Of Poles 1 Primary Connections|Pole 1 Returnable Y Secondary Connection|Pole 4 Short Circuit Current Rating 65 kA Size 1.13 IN,1.78 IN,2.88 IN Standard UL RECOGNIZED E60616 CCN XCFR2-CSA FILE 70361 CLASS 6228 01-CE Stock Status NONSTOCK Substitute Product Catalog Number 9080LB21 Type 9080LB21,POWER DISTRIBUTION BLOCK UNSPSC 39121410 UPC 11 78590109730 UPC 12 785901097303 Voltage Rating 600 VAC//VDC Warranty Description Contractual Warranty:18 months Width 2.7940 in Width [Metric] 2.7940 cm Wire Size 14 to 2/0 AWG, 14 to 4 AWG 9080LB,9080LB21 LUGS TIN PLATED ALUMINIUM,PHENOLIC BLOCK Lugs tin plated aluminum connection 135 A aluminum/175 A copper current rated (1) 14 to 2/0 AWG copper or aluminum main cable, (4) 14 to 4 AWG copper or aluminum branch cable (1) lug primary, (4) lug secondary
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9080LBA162104 |
| Amperage Rating | 175 A, 135 A |
| Application | 9080LB,9080LB21 |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9080LBA162104 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.88 in H x 1.13 in W x 1.78 in D |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Volume Per Pack | 5.74 |
| Gross Volume per Pack Metric | 94.09 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2200 lb |
| Gross Weight per Pack Metric | 99.79 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 7.3660 in |
| Height [Metric] | 7.3660 cm |
| Item Group | 21711 |
| Length | 4.5720 in |
| Length [Metric] | 4.5720 cm |
| Manufacturer | Schneider Electric |
| Material | Phenolic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372925&lang=en-us |
| Mounting | SURFACE MOUNT |
| Number Of Poles | 1 |
| Primary Connections|Pole | 1 |
| Returnable | Y |
| Secondary Connection|Pole | 4 |
| Short Circuit Current Rating | 65 kA |
| Size | 1.13 IN,1.78 IN,2.88 IN |
| Standard | UL RECOGNIZED E60616 CCN XCFR2-CSA FILE 70361 CLASS 6228 01-CE |
| Stock Status | NONSTOCK |
| Substitute Product Catalog Number | 9080LB21 |
| Type | 9080LB21,POWER DISTRIBUTION BLOCK |
| UNSPSC | 39121410 |
| UPC 11 | 78590109730 |
| UPC 12 | 785901097303 |
| Voltage Rating | 600 VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 2.7940 in |
| Width [Metric] | 2.7940 cm |
| Wire Size | 14 to 2/0 AWG, 14 to 4 AWG |
| 9080LB,9080LB21 |
| LUGS TIN PLATED ALUMINIUM,PHENOLIC BLOCK |
| Lugs tin plated aluminum connection |
| 135 A aluminum/175 A copper current rated |
| (1) 14 to 2/0 AWG copper or aluminum main cable, (4) 14 to 4 AWG copper or aluminum branch cable |
| (1) lug primary, (4) lug secondary |
