Square D™

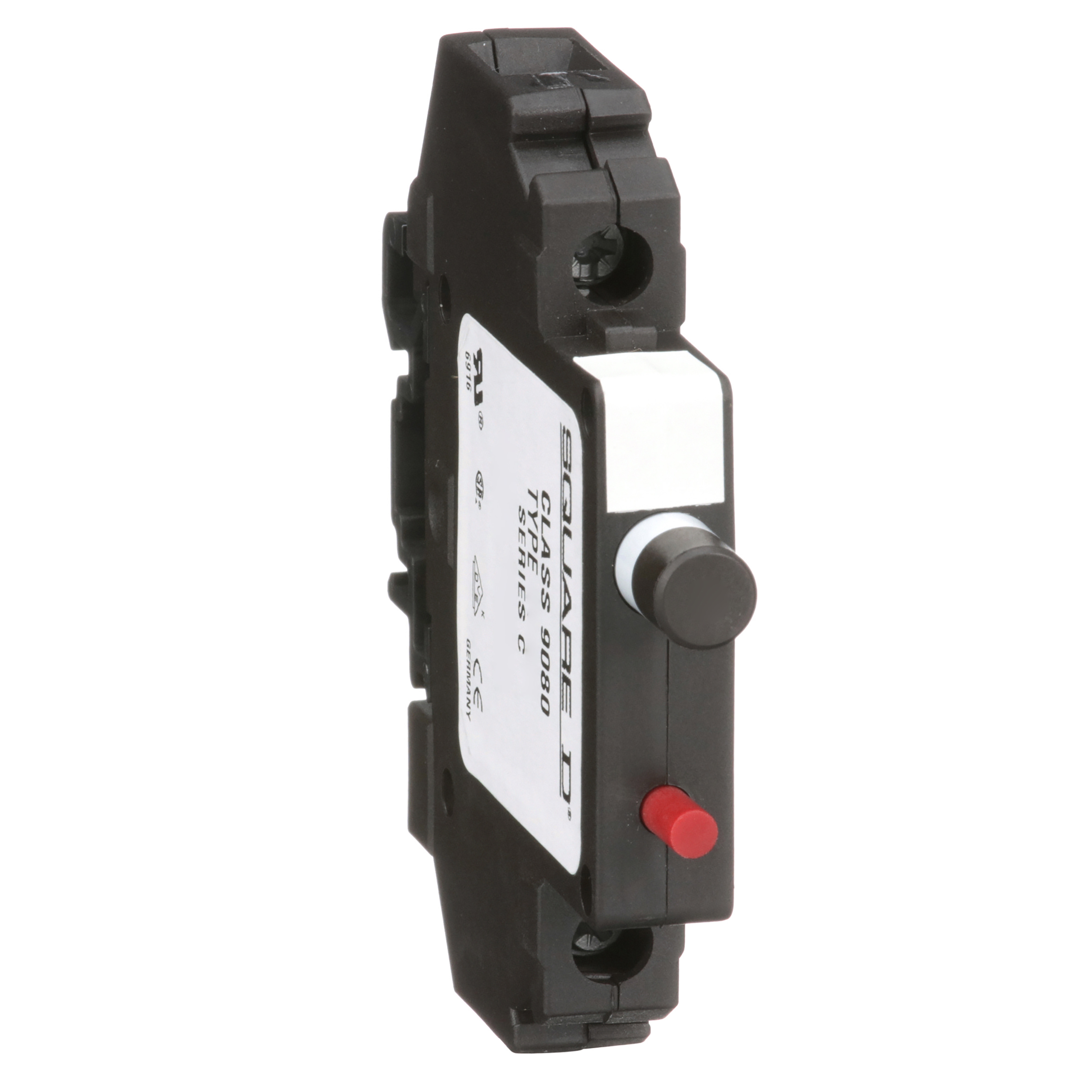

Square D™ 9080GCB40 CIRCUIT PROTECTOR 250
Custom_Product_Images_Illustration
Square D™
Square D™ 9080GCB40 CIRCUIT PROTECTOR 250
SKU31425
MFGR #9080GCB40
Your Cost: $63.11/ea
List: Square D 9080GCB40 CIRCUIT PROTECTOR 250V 4A TYPE NEMA,#10 to #16 AWG (Cu),4.0A,65 V DC-250 V AC,9080GCB,Box Lug,Circuit Protector,Track,UL Recognized File E152841 CCN QVNU2 - CSA Certified File LR25490 - CE Marked
Square D 9080GCB40 CIRCUIT PROTECTOR 250V 4A TYPE NEMA,#10 to #16 AWG (Cu),4.0A,65 V DC-250 V AC,9080GCB,Box Lug,Circuit Protector,Track,UL Recognized File E152841 CCN QVNU2 - CSA Certified File LR25490 - CE Marked
Alternate Catalog Number 9080GCB40 Application Industrial Application ARRA Compliant N Buy American Compliant N Catalog Number 9080GCB40 Connection BOX LUGS Connection Type Box Lug Country of Origin DE Currency USD Dimensions 3.15 in W x 0.5 in D x 3.45 in H EU RoHS Indicator Y Gross Volume Per Pack 12.21 Gross Volume per Pack Metric 200.08 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 160.0100 lb Gross Weight per Pack Metric 72.58 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536308000 Height 2.5400 in Height [Metric] 2.5400 cm Item Group 21703 Length 9.3980 in Length [Metric] 9.3980 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=371971&lang=en-us Mounting 35 MM DIN RAIL-9080GH TRACK Mounting Type 35 mm DIN Rail/9080GH Track Number Of Poles 1 Returnable Y Series GCB Size 0.5 IN,3.15 IN,3.45 IN in Standard DIN 57470-UL 1077-CSA C22.2 NO 235,UL RECOGNIZED E233026 CCN QVNU2-CE-CSA FILE 025490 CLASS 3211 07 Substitute Product Catalog Number 9080GH236 Temperature Rating -22 to 140 °F Type Thermal Magnetic UNSPSC 39121410 UPC 11 78590100093 UPC 12 785901000938 Warranty Description Contractual Warranty:18 months Width 8.3820 in Width [Metric] 8.3820 cm Wire Size 16 to 10 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 4 A Interrupt Rating 1.5 kA Voltage Rating 250 VAC/65 VDC Industrial Application OVERCURRENT,THERMAL-MAGNETIC Wide range of current rating Mounts on standard Square D™ type GH track Captive, deeply recessed screw terminal Small physical size Visual trip indication Meets a wide variety of application requirements 24 circuits per foot due to small size Easily find blown circuit For 9080GCB terminal block 7 lbf.in control circuit cage type connector terminal tightening torque
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9080GCB40 |
| Application | Industrial Application |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9080GCB40 |
| Connection | BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 3.15 in W x 0.5 in D x 3.45 in H |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 12.21 |
| Gross Volume per Pack Metric | 200.08 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 160.0100 lb |
| Gross Weight per Pack Metric | 72.58 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 2.5400 in |
| Height [Metric] | 2.5400 cm |
| Item Group | 21703 |
| Length | 9.3980 in |
| Length [Metric] | 9.3980 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=371971&lang=en-us |
| Mounting | 35 MM DIN RAIL-9080GH TRACK |
| Mounting Type | 35 mm DIN Rail/9080GH Track |
| Number Of Poles | 1 |
| Returnable | Y |
| Series | GCB |
| Size | 0.5 IN,3.15 IN,3.45 IN in |
| Standard | DIN 57470-UL 1077-CSA C22.2 NO 235,UL RECOGNIZED E233026 CCN QVNU2-CE-CSA FILE 025490 CLASS 3211 07 |
| Substitute Product Catalog Number | 9080GH236 |
| Temperature Rating | -22 to 140 °F |
| Type | Thermal Magnetic |
| UNSPSC | 39121410 |
| UPC 11 | 78590100093 |
| UPC 12 | 785901000938 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.3820 in |
| Width [Metric] | 8.3820 cm |
| Wire Size | 16 to 10 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 4 A |
| Interrupt Rating | 1.5 kA |
| Voltage Rating | 250 VAC/65 VDC |
| Industrial Application |
| OVERCURRENT,THERMAL-MAGNETIC |
| Wide range of current rating |
| Mounts on standard Square D™ type GH track |
| Captive, deeply recessed screw terminal |
| Small physical size |
| Visual trip indication |
| Meets a wide variety of application requirements |
| 24 circuits per foot due to small size |
| Easily find blown circuit |
| For 9080GCB terminal block |
| 7 lbf.in control circuit cage type connector terminal tightening torque |
