Square D™

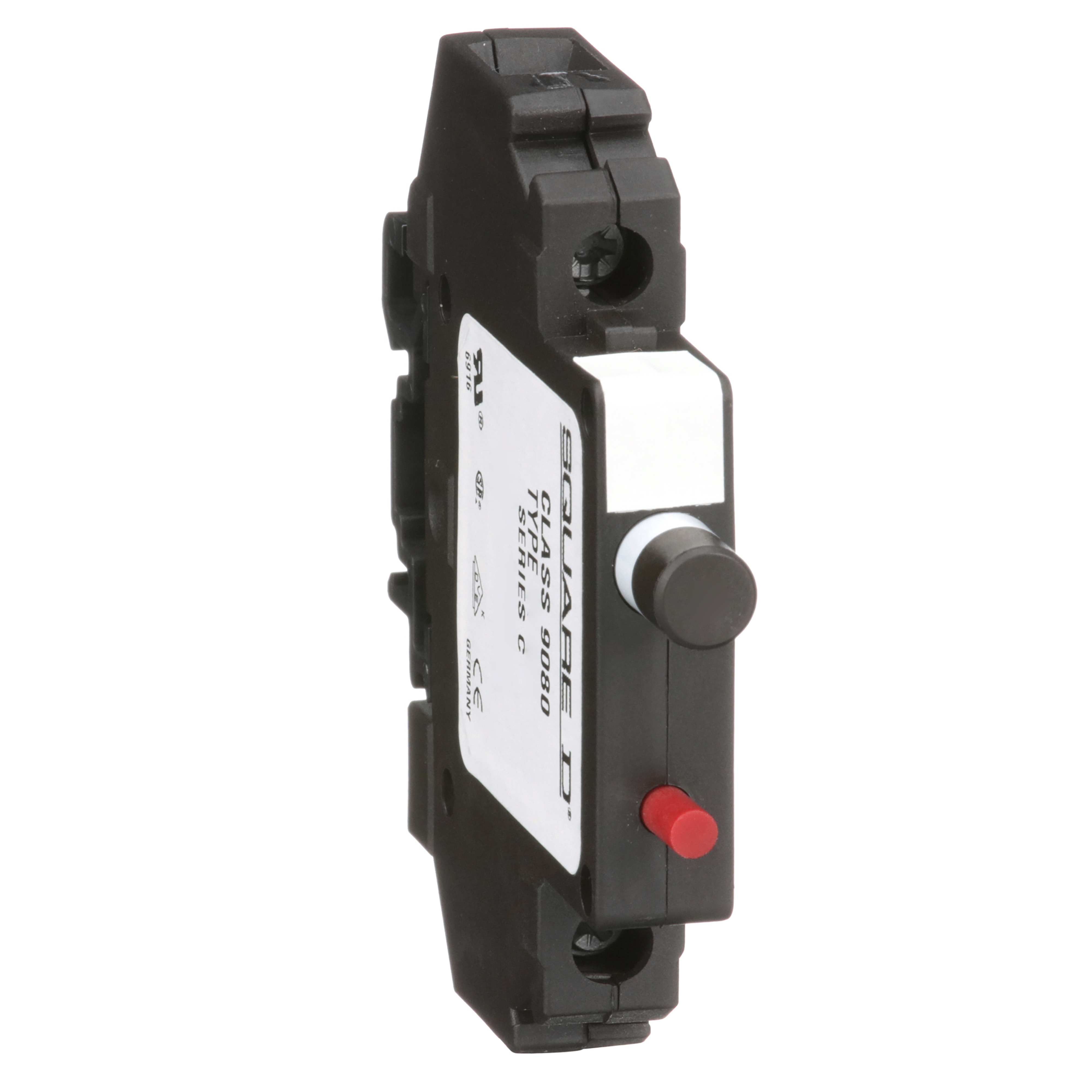

Square D™ 9080GCB Circuit Protector, 250 VAC/65 VDC, 15 A, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ 9080GCB Circuit Protector, 250 VAC/65 VDC, 15 A, Thermal Magnetic Trip
SKU33466
MFGR #9080GCB150
Your Cost: $63.11/ea
List: Square D 9080GCB150 CIRCUIT PROTECTOR 250V 15AMP TYPE NEMA,#10 to #16 AWG (Cu),125 V AC-65 V DC,15A,9080GCB,Box Lug,Circuit Protector,Track,UL Recognized File E152841 CCN QVNU2 - CSA Certified File LR25490 - CE Marked
Square D 9080GCB150 CIRCUIT PROTECTOR 250V 15AMP TYPE NEMA,#10 to #16 AWG (Cu),125 V AC-65 V DC,15A,9080GCB,Box Lug,Circuit Protector,Track,UL Recognized File E152841 CCN QVNU2 - CSA Certified File LR25490 - CE Marked
Alternate Catalog Number 9080GCB150 Amperage Rating 15 A Application Industrial Application ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9080GCB150 Connection BOX LUGS Connection Type Box Lug Country of Origin US Currency USD Dimensions 3.11 in H x 0.5 in W x 3.15 in D EU RoHS Indicator Y Gross Volume Per Pack 12.58 Gross Volume per Pack Metric 206.15 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1600 lb Gross Weight per Pack Metric 72.58 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536308000 Height 2.5400 in Height [Metric] 2.5400 cm Item Group 21703 Length 9.3980 in Length [Metric] 9.3980 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=371963&lang=en-us Mounting 9080GH TRACK-35 MM DIN RAIL Mounting Type DIN Track Returnable Y Size 0.5 IN,3.15 IN,3.45 IN in Standard CE-CSA FILE 025490 CLASS 3211 07-UL RECOGNIZED E233026 CCN QVNU2,CSA C22.2 NO 235-UL 1077-DIN 57470 Stock Status NONSTOCK Substitute Product Catalog Number 9080MHA10 Temperature Rating -4 to 140 °F Type CIRCUIT PROTECTOR UNSPSC 39121410 UPC 11 78590148100 UPC 12 785901481003 Voltage Rating 65 V DC-125 V AC Warranty Description Contractual Warranty:18 months Width 8.1280 in Width [Metric] 8.1280 cm Wire Size 16 to 10 AWG Industrial Application OVERCURRENT,THERMAL-MAGNETIC Tropical climate protective treatment
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9080GCB150 |
| Amperage Rating | 15 A |
| Application | Industrial Application |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9080GCB150 |
| Connection | BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3.11 in H x 0.5 in W x 3.15 in D |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 12.58 |
| Gross Volume per Pack Metric | 206.15 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1600 lb |
| Gross Weight per Pack Metric | 72.58 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 2.5400 in |
| Height [Metric] | 2.5400 cm |
| Item Group | 21703 |
| Length | 9.3980 in |
| Length [Metric] | 9.3980 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=371963&lang=en-us |
| Mounting | 9080GH TRACK-35 MM DIN RAIL |
| Mounting Type | DIN Track |
| Returnable | Y |
| Size | 0.5 IN,3.15 IN,3.45 IN in |
| Standard | CE-CSA FILE 025490 CLASS 3211 07-UL RECOGNIZED E233026 CCN QVNU2,CSA C22.2 NO 235-UL 1077-DIN 57470 |
| Stock Status | NONSTOCK |
| Substitute Product Catalog Number | 9080MHA10 |
| Temperature Rating | -4 to 140 °F |
| Type | CIRCUIT PROTECTOR |
| UNSPSC | 39121410 |
| UPC 11 | 78590148100 |
| UPC 12 | 785901481003 |
| Voltage Rating | 65 V DC-125 V AC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.1280 in |
| Width [Metric] | 8.1280 cm |
| Wire Size | 16 to 10 AWG |
| Industrial Application |
| OVERCURRENT,THERMAL-MAGNETIC |
| Tropical climate protective treatment |
